45601
Front Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
45601
Front Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

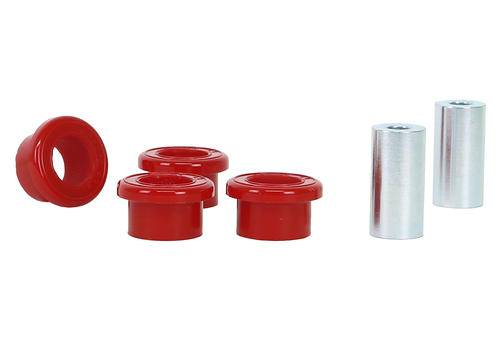

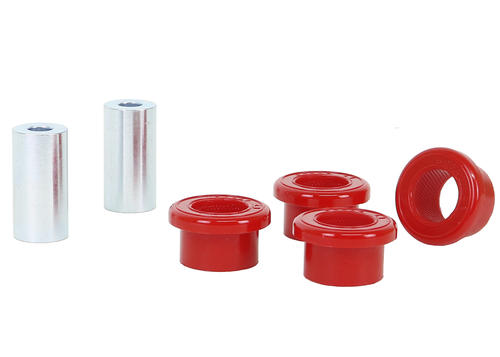

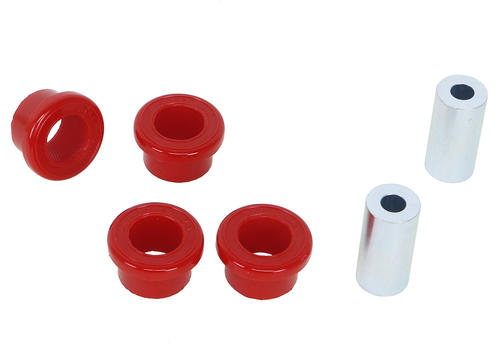

Kit Contents: 4 Bushings, 2 Tubes, Grease
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 37 mm 26.8 mm 26.7 mm 7.7 mm 48 mm 2 27x12.2x54 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 37 mm
ID (B) 26.8 mm
L (C) 26.7 mm
FL (D) 7.7 mm
FLOD (E) 48 mm
C/Tube QTY 2
C/Tube Size 27x12.2x54 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 02 EVEN A 05 ODD A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 02
Press Plate # (OUT) EVEN A
Support Sleeve # 05
Press Plate # ODD A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
45601
Vehicle Applications
45601 is suitable for the following vehicles. Select a vehicle for specific fitment details:
AUDI A3 2003-2013 - A3 MK2 (TYP 8P) FWD
AUDI A3 2003-2013 - A3 MK2 (TYP 8P) QUATTRO
AUDI Q3 2011-2018 - Q3 8U QUATTRO
AUDI Q3 2011-2018 - Q3 8U FWD
AUDI S3 2007-2012 - S3 MK2 (TYP 8P)
AUDI TT 2006-2014 - TT MK2 (TYP 8J) QUATTRO
AUDI TT 2006-2014 - TT MK2 (TYP 8J) FWD
SKODA OCTAVIA 2004-2013 - OCTAVIA MK2 (TYP 1Z) FWD
SKODA OCTAVIA 2004-2013 - OCTAVIA MK2 (TYP 1Z) AWD
SKODA SUPERB 2008-2015 - SUPERB B6 (TYP 3T) AWD
SKODA SUPERB 2008-2015 - SUPERB B6 (TYP 3T) FWD
SKODA YETI 2009-2017 - YETI MK1 (TYP 5L) FWD
SKODA YETI 2009-2017 - YETI MK1 (TYP 5L) AWD
VOLKSWAGEN BEETLE 2011-2019 - BEETLE MK5 (TYP 5C)
VOLKSWAGEN CADDY 2004-2015 - CADDY MK3 (TYP 2K) FWD
VOLKSWAGEN CADDY 2004-2015 - CADDY MK3 (TYP 2K) 4MOTION
VOLKSWAGEN CADDY 2015-ON - CADDY MK4 (TYP SA) FWD
VOLKSWAGEN CC 2008-2012 - CC (TYP 357) 4MOTION
VOLKSWAGEN CC 2008-2012 - CC (TYP 357) FWD
VOLKSWAGEN EOS 2007-2015 - EOS MK1 (TYP 1F)
VOLKSWAGEN GOLF 2004-2009 - GOLF MK5 (TYP 1K)
VOLKSWAGEN GOLF 2008-2012 - GOLF MK6 (TYP 5K)
VOLKSWAGEN GOLF 2012-2020 - GOLF MK7 AND 7.5 (TYP 5G)
VOLKSWAGEN GOLF 4MOTION 2012-2020 - GOLF MK7 AND 7.5 4MOTION (TYP 5G)
VOLKSWAGEN GOLF ALLTRACK 2014-2020 - GOLF ALLTRACK MK7 AND 7.5 (TYP 5G)
VOLKSWAGEN GOLF GTI/GTD 2004-2009 - GOLF MK5 GTI (TYP 1K)
VOLKSWAGEN GOLF GTI/GTD 2008-2012 - GOLF MK6 GTI (TYP 5K)
VOLKSWAGEN GOLF GTI/GTD 2012-2020 - GOLF MK7 AND 7.5 GTI, GTD (TYP 5G)
VOLKSWAGEN GOLF R/R32 2006-2008 - GOLF MK5 R32 (TYP 1K)
VOLKSWAGEN GOLF R/R32 2008-2012 - GOLF MK6 R (TYP 5K)
VOLKSWAGEN GOLF R/R32 2013-2020 - GOLF MK7 AND 7.5 R (TYP 5G)
VOLKSWAGEN JETTA 2005-2010 - JETTA A5 MK5 (TYP 1K)
VOLKSWAGEN JETTA 2010-2018 - JETTA A6 MK6 (TYP 5C6)
VOLKSWAGEN PASSAT 2005-2014 - PASSAT B6, B7 (TYP 3C) FWD
VOLKSWAGEN PASSAT 2005-2014 - PASSAT B6, B7 (TYP 3C) 4MOTION
VOLKSWAGEN PASSAT 2013-2014 - PASSAT ALLTRACK B7 (TYP 3C)
VOLKSWAGEN SCIROCCO 2009-2017 - SCIROCCO MK3 (TYP 13)
VOLKSWAGEN T-ROC 2017-ON - T-ROC A11 4MOTION
VOLKSWAGEN T-ROC 2017-ON - T-ROC A11 FWD
VOLKSWAGEN TIGUAN 2008-2018 - TIGUAN MK1 (TYP 5N) 4MOTION
< MORE >
