Nolathane
45587
Front Axle Control Arm Lower - Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
45587
Front Axle Control Arm Lower - Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Nolathane camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. The kit is supplied with dual offset Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.
Kits Required: 1
Warranty: Limited Lifetime Warranty

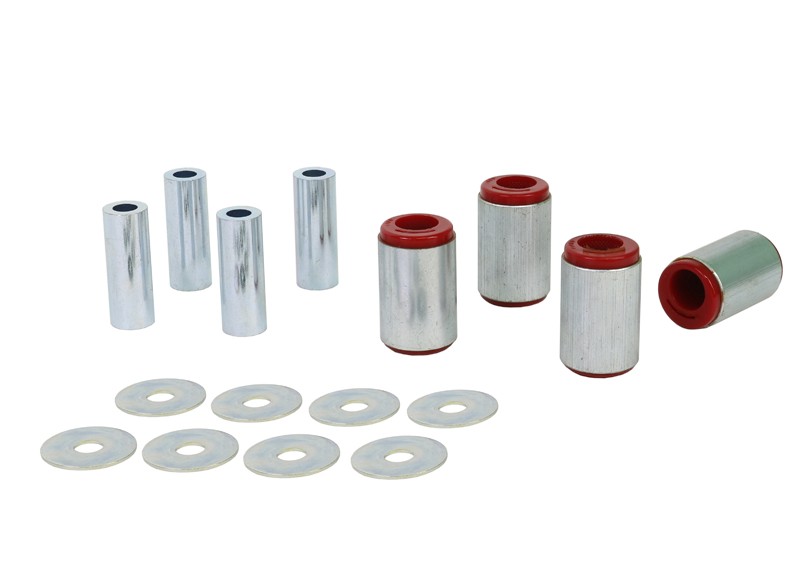

Kit Contents: 4 Shell Bushings, 4 Tubes, 8 Washers
Install Guide: Download Here
Important Notes
  • Performance Alignment
  • Adds +/- 0.5deg camber
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.

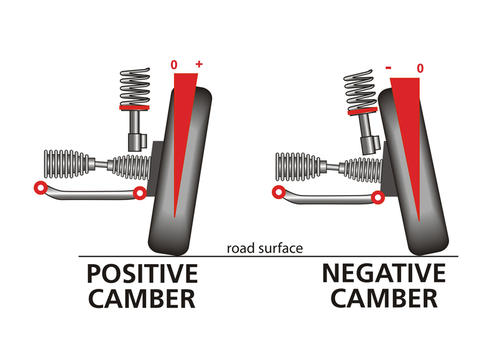

Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
16 4 43 mm 25 mm 70 mm 6 mm 40 mm 4 25.4x14.3x70 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16
Bush Qty 4
OD (A) 43 mm
ID (B) 25 mm
L (C) 70 mm
FL (D) 6 mm
FLOD (E) 40 mm
C/Tube QTY 4
C/Tube Size 25.4x14.3x70 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
05 Odd A 04 Even A 07 Odd A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve # (IN) 05
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 04
Press Plate # (OUT) Even A
Support Sleeve # 07
Press Plate # Odd A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

45587
Vehicle Applications
45587 is suitable for the following vehicles. Select a vehicle for specific fitment details:
MERCEDES-BENZ X-CLASS 2017-2020 - X-CLASS X470 4MATIC
MERCEDES-BENZ X-CLASS 2017-2020 - X-CLASS X470 2WD
NISSAN NAVARA 2005-2015 - NAVARA D40 2WD
NISSAN NAVARA 2005-2015 - NAVARA D40 4WD
NISSAN NAVARA 2015-ON - NAVARA D23, NP300 SINGLE & KING CAB 2WD (LEAF REAR)
NISSAN NAVARA 2015-ON - NAVARA D23, NP300 SINGLE & KING CAB 4WD (LEAF REAR)
NISSAN NAVARA 2015-ON - NAVARA D23, NP300 DUAL CAB 2WD (COIL REAR)
NISSAN NAVARA 2015-ON - NAVARA D23, NP300 DUAL CAB 4WD (COIL REAR)
NISSAN NAVARA NP300 2015-ON - NAVARA D23, NP300 SINGLE & KING CAB 2WD (LEAF REAR)
NISSAN NAVARA NP300 2015-ON - NAVARA D23, NP300 SINGLE & KING CAB 4WD (LEAF REAR)
NISSAN PATHFINDER 2005-2013 - PATHFINDER R51
