| Kits Required: | 1 |
| Warranty: | Limited Lifetime Warranty |

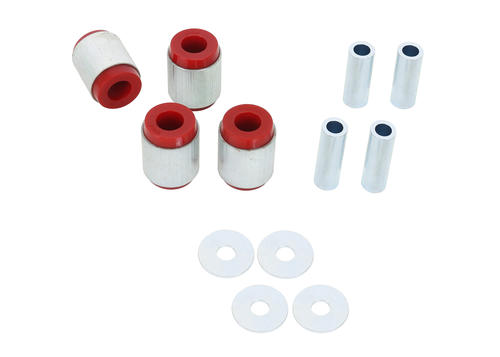

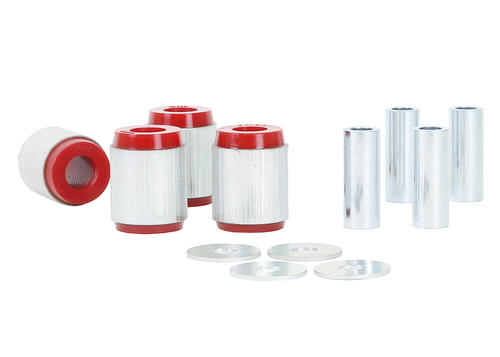

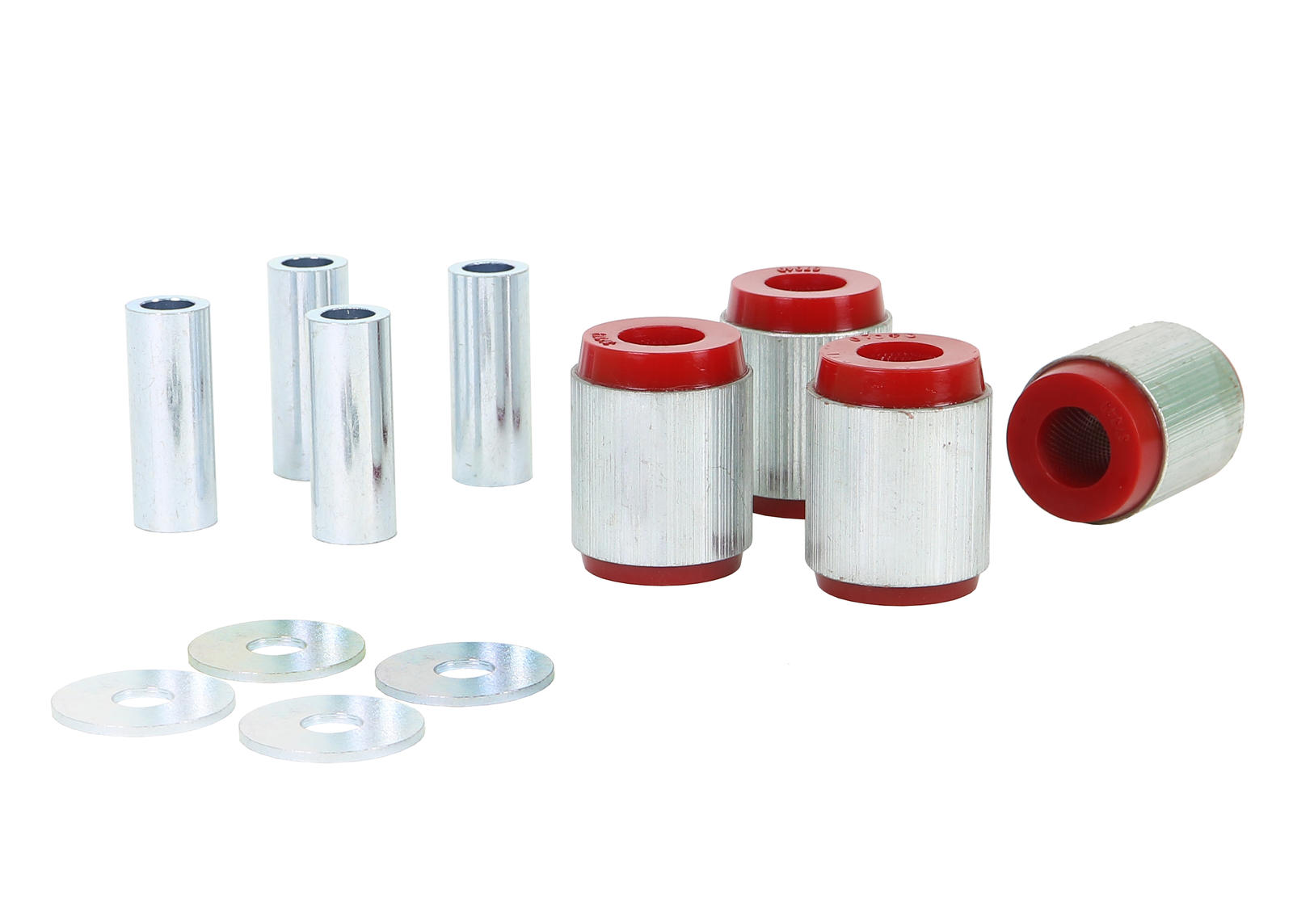

| Kit Contents: | 4 Shell Bushings, 4 Tubes, 4 Washers, Install Guide, Grease |
| Install Guide: | Download Here |
| Bush Type |
Bush Qty |
OD (A) |
ID (B) |
L (C) |
FL (D) |
FLOD (E) |
C/Tube QTY |
C/Tube Size |
Similar Bushing Size |
| 16 | 4 | 46.5 mm | 21.5 mm | 60.6 mm | 9 mm | 39.5 mm | 4 | 22.2x14.3x59.5 mm | click here |
| Bush Type | 16 |
| Bush Qty | 4 |
| OD (A) | 46.5 mm |
| ID (B) | 21.5 mm |
| L (C) | 60.6 mm |
| FL (D) | 9 mm |
| FLOD (E) | 39.5 mm |
| C/Tube QTY | 4 |
| C/Tube Size | 22.2x14.3x59.5 mm |
| Similar Bushing Size | click here |
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
| Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
| Click to Download | 3 hrs | DIY - With specialist tools | Yes |
| Press Sleeve # (IN) |
Press Plate # (IN) |
Press Sleeve # (OUT) |
Press Plate # (OUT) |
Support Sleeve # |
Press Plate # |
Threaded Rod # |
Press In/Out Kit |
| 05 | ODD A | 04 | EVEN A | 07 | ODD A | M14 | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
| Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
| Click to Download | 3 hrs | DIY - With specialist tools | Yes |
| Press Sleeve # (IN) | 05 |
| Press Plate # (IN) | ODD A |
| Press Sleeve # (OUT) | 04 |
| Press Plate # (OUT) | EVEN A |
| Support Sleeve # | 07 |
| Press Plate # | ODD A |
| Threaded Rod # | M14 |
| Press In/Out Kit | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
