45560

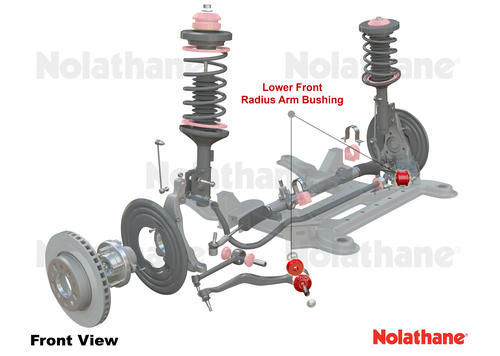

Front Radius Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
45560
Front Radius Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Not many know but worn suspension bushings have an effect on braking performance. Radius arm bushings in particular tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Nolathane bushings that offer long lasting durability for a safer more predictable vehicle.
Kits Required: 1
Warranty: Limited Lifetime Warranty

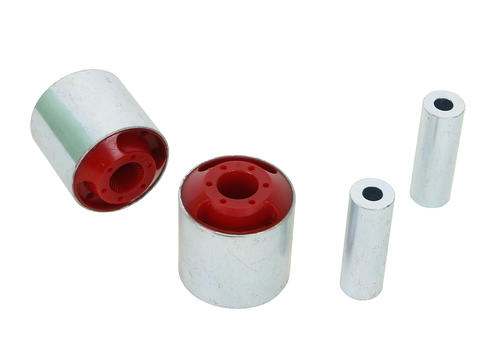

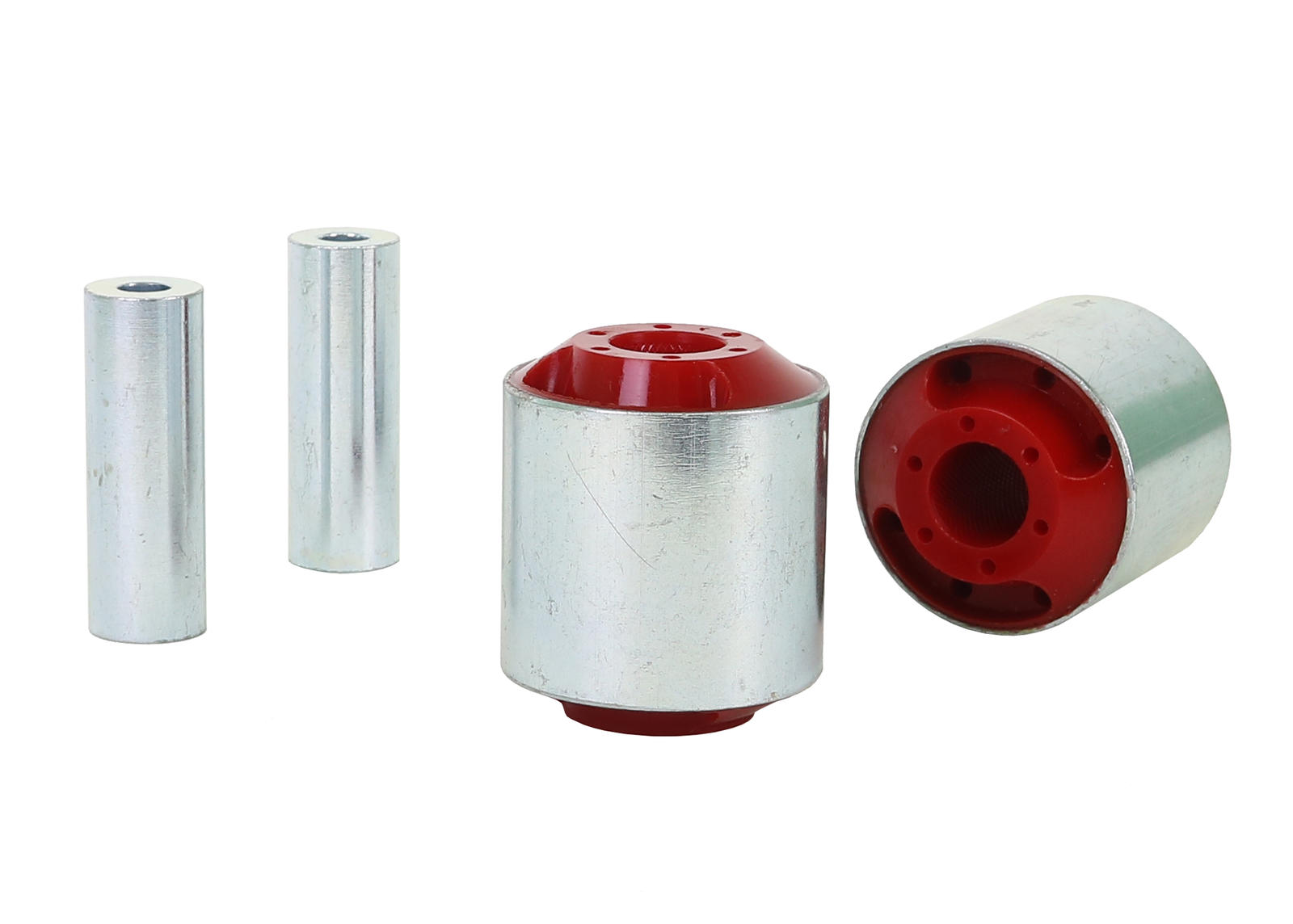

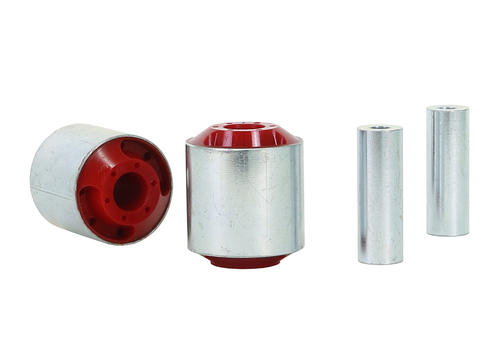

Kit Contents: 2 Shell Bushings, 2 Tubes, Install Guide, Grease
Install Guide: Download Here
Important Notes
Standard replacement
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
16 2 69.7 mm 25.4 mm 81.5 mm 8.7 mm 41.4 mm 2 27x12.2x80 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

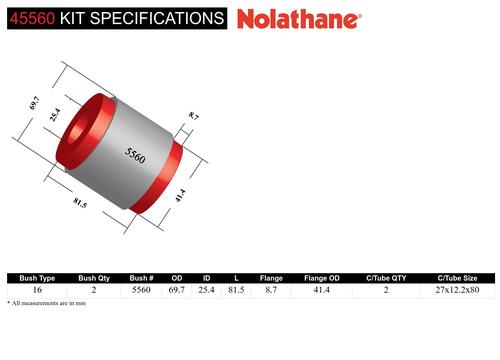

Kit Specifications
Bush Type 16
Bush Qty 2
OD (A) 69.7 mm
ID (B) 25.4 mm
L (C) 81.5 mm
FL (D) 8.7 mm
FLOD (E) 41.4 mm
C/Tube QTY 2
C/Tube Size 27x12.2x80 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
10 EVEN A 09 ODD A 12 EVEN B M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) 10
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) 09
Press Plate # (OUT) ODD A
Support Sleeve # 12
Press Plate # EVEN B
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
45560
Vehicle Applications
45560 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HOLDEN CALAIS 2006-2013 - CALAIS VE
HOLDEN CALAIS 2013-2018 - CALAIS VF
HOLDEN CAPRICE 2006-2013 - CAPRICE WM
HOLDEN CAPRICE 2013-2018 - CAPRICE WN
HOLDEN COMMODORE 2006-2013 - COMMODORE VE
HOLDEN COMMODORE 2013-2017 - COMMODORE VF
HOLDEN STATESMAN 2006-2013 - STATESMAN WM
HSV CLUBSPORT 2006-2013 - CLUBSPORT E SERIES
HSV CLUBSPORT 2013-2017 - CLUBSPORT GEN F
HSV GRANGE 2006-2013 - GRANGE WM
HSV GRANGE 2013-2016 - GRANGE GEN F
HSV GTS 2006-2013 - GTS E SERIES
HSV GTS 2013-2017 - GTS GEN F
HSV MALOO 2007-2013 - MALOO E SERIES
HSV MALOO 2013-2017 - MALOO GEN F
HSV SENATOR 2006-2013 - SENATOR E SERIES
HSV SENATOR 2013-2017 - SENATOR GEN F
HSV W427 2008-2009 - W427 E SERIES
