45520
Front Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
45520
Front Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

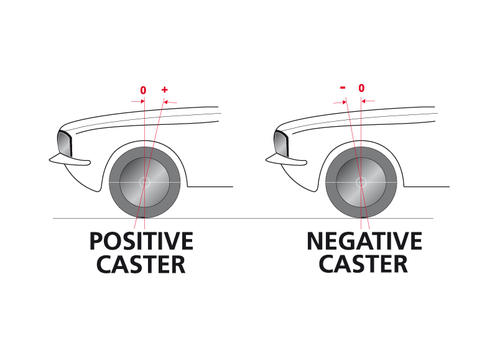

Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved steering feedback and braking performance.
Kits Required: 1
Warranty: Limited Lifetime Warranty

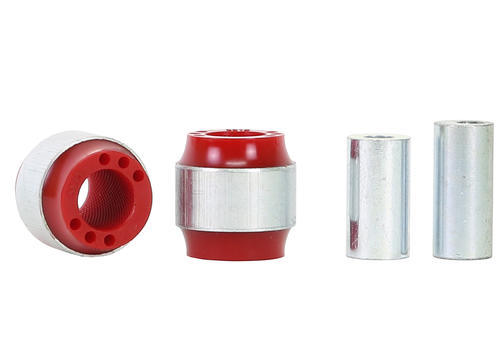

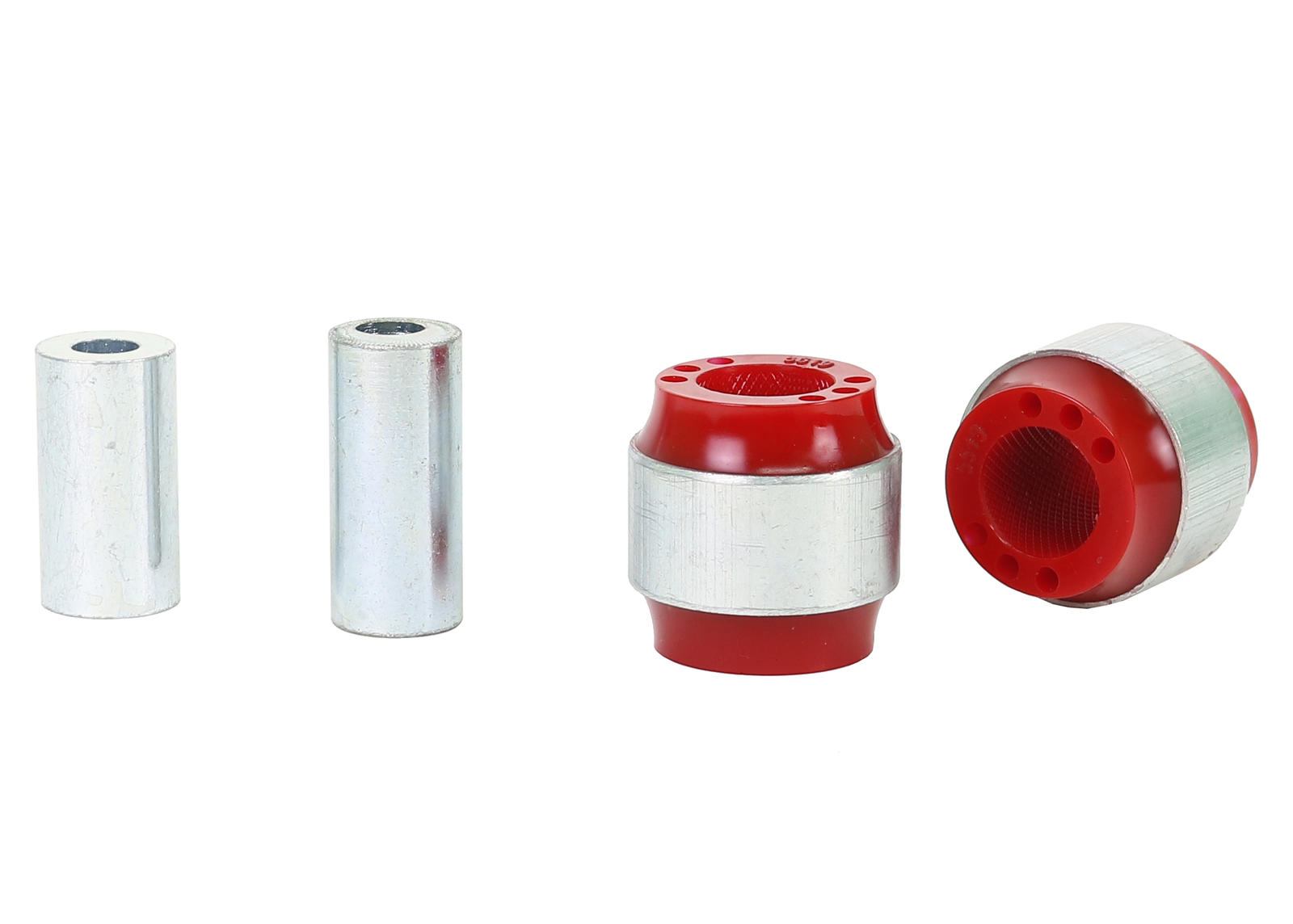

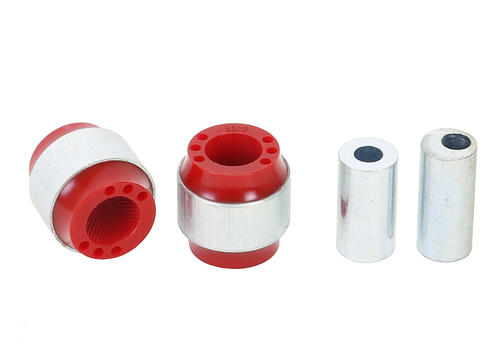

Kit Contents: 2 Shell Bushings, 2 Tubes, Install Guide, Grease
Install Guide: Download Here
Important Notes
Single offset - adds +0.5deg caster - rectify vehicle pulling to the left/ off centre steering wheel
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Offset mounting point to rectify vehicles with poor wheel alignment.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Offset mounting point to rectify vehicles with poor wheel alignment.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
16 2 48 mm 25 mm 48.5 mm 11.75 mm 39.4 mm 2 25.4x12.2x48 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Alignment Type Adjustment Type On Car Adjustable Adjustment Notes
Caster Eccentric No Adds + 0.5deg
Kit Specifications
Bush Type 16
Bush Qty 2
OD (A) 48 mm
ID (B) 25 mm
L (C) 48.5 mm
FL (D) 11.75 mm
FLOD (E) 39.4 mm
C/Tube QTY 2
C/Tube Size 25.4x12.2x48 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment Type Caster
Adjustment Type Eccentric
On Car Adjustable No
Adjustment Notes Adds + 0.5deg
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
06 EVEN A 05 ODD A 08 EVEN A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) 06
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) 05
Press Plate # (OUT) ODD A
Support Sleeve # 08
Press Plate # EVEN A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
45520
Vehicle Applications
45520 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD LASER 1999-2002 - LASER KN, KQ
MAZDA 323 ASTINA 1998-2004 - 323 ASTINA BJ
MAZDA 323 PROTEGÉ 1998-2003 - 323 PROTEGÉ BJ
MAZDA PREMACY 1999-2003 - PREMACY CP
