Nolathane
45448
Front Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
45448
Front Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

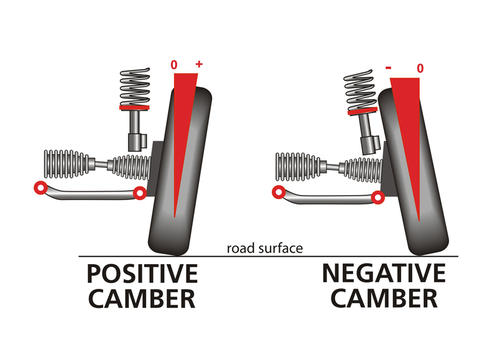

Nolathane adjustable camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. The kit includes Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.
Kits Required: 1
Warranty: Limited Lifetime Warranty

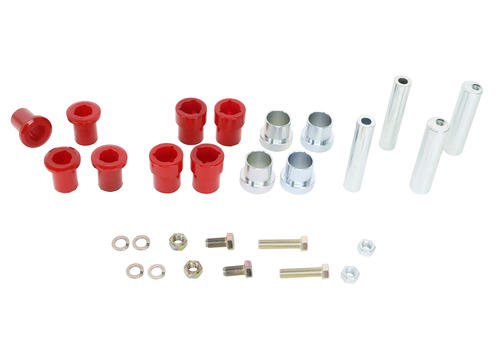

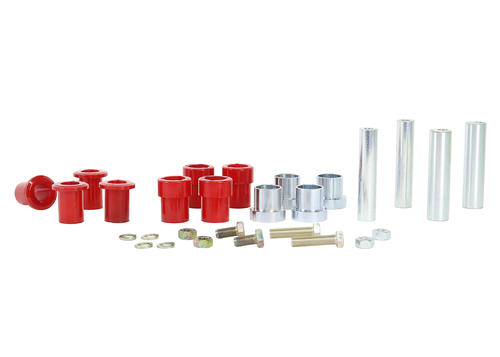

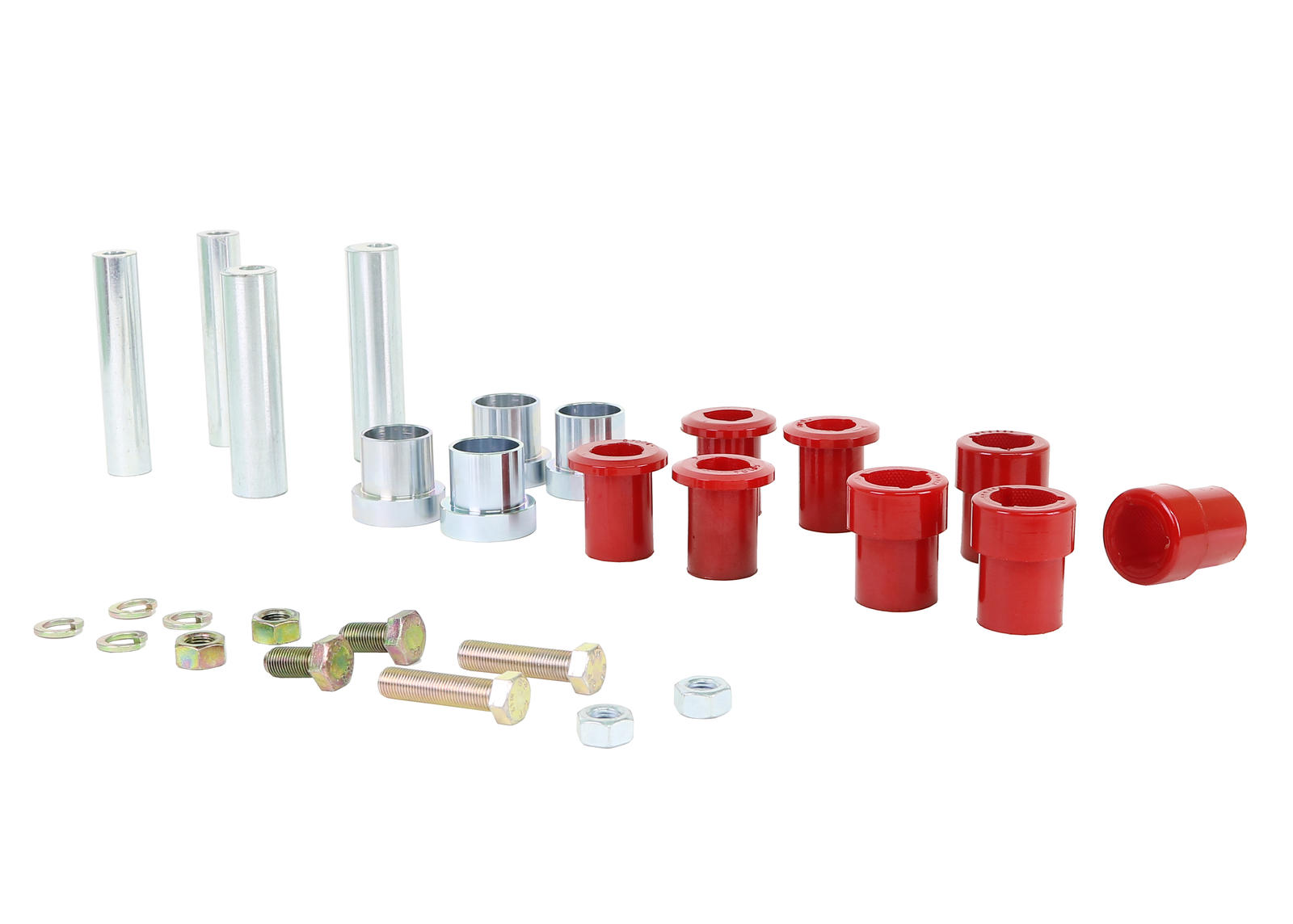

Kit Contents: 8 Bushings, 4 Shells, 4 Tubes, Install Guide, Grease
Install Guide: Download Here
Important Notes
Adds +/- 0.5deg camber
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 30 mm 22.3 mm 46 mm 6 mm 44 mm 2 / 2 22.3x12.6x112 / 27x10x110.2 mm click here
1 4 33.8 mm 26.2 mm 50.5 mm 19.6 mm 41 mm 2 / 2 22.3x12.6x112 / 27x10x110.2 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Alignment Type Adjustment Type On Car Adjustable Adjustment Notes
Camber Eccentric Yes Adds +/- 0.5deg
Kit Specifications
Bush Type 1 1
Bush Qty 4 4
OD (A) 30 mm 33.8 mm
ID (B) 22.3 mm 26.2 mm
L (C) 46 mm 50.5 mm
FL (D) 6 mm 19.6 mm
FLOD (E) 44 mm 41 mm
C/Tube QTY 2 / 2 2 / 2
C/Tube Size 22.3x12.6x112 / 27x10x110.2 mm 22.3x12.6x112 / 27x10x110.2 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment Type Camber
Adjustment Type Eccentric
On Car Adjustable Yes
Adjustment Notes Adds +/- 0.5deg
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 4 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 01 ODD A 04 EVEN A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 4 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 01
Press Plate # (OUT) ODD A
Support Sleeve # 04
Press Plate # EVEN A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Mark Larkham talks camber

Uneven tyre wear

Larko talks Family Movers
Videos

Mark Larkham talks camber

Uneven tyre wear

Larko talks Family Movers
45448
Vehicle Applications
45448 is suitable for the following vehicles. Select a vehicle for specific fitment details:
INFINITI Q45 1990-1996 - Q45 G50
NISSAN 300ZX 1989-1997 - 300ZX Z32
NISSAN INFINITI 1993-1997 - INFINITI Q45 G50
NISSAN SKYLINE 1989-1993 - SKYLINE R32 GTR, GTS-4 AWD
NISSAN SKYLINE 1989-1993 - SKYLINE R32 GTS, GTS-T RWD
