Nolathane
45371

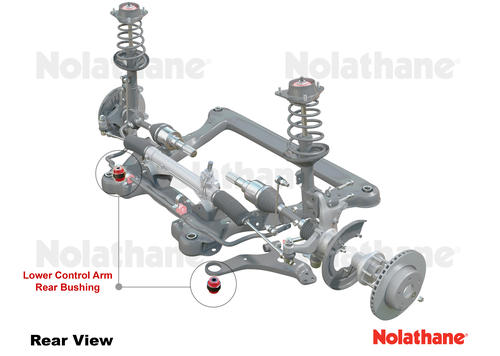

Front Axle Control Arm Lower - Inner Rear Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
45371
Front Axle Control Arm Lower - Inner Rear Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved braking performance, and less under load alignment change.
Kits Required: 1
Warranty: Limited Lifetime Warranty

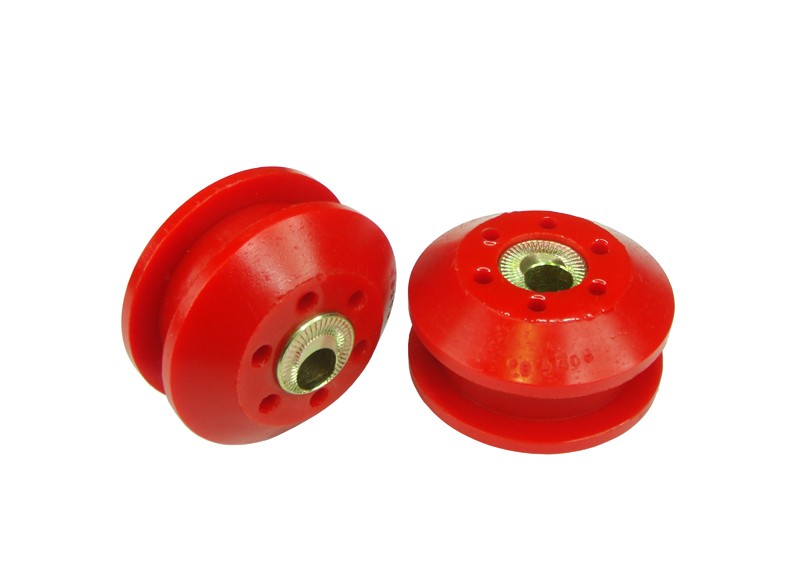

Kit Contents: 4 Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
  • Performance Alignment

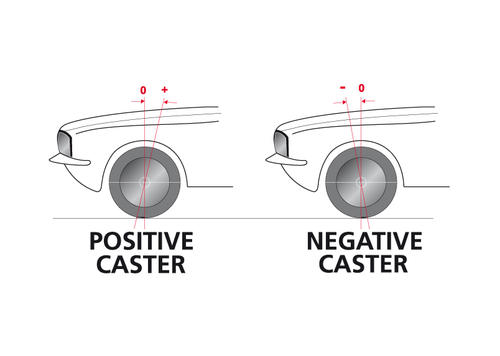

  • Adds +/- 0.5deg caster
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

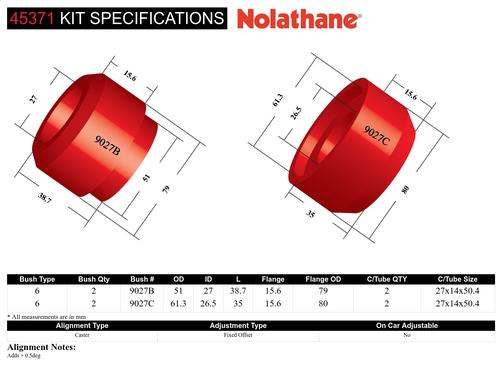

Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
6 4 51 mm 27 mm 38.7 mm 15.6 mm 79 mm 2 27x14x50.4 mm click here
6 4 61.3 mm 26.5 mm 35 mm 15.6 mm 80 mm 2 27x14x50.4 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 6 6
Bush Qty 4 4
OD (A) 51 mm 61.3 mm
ID (B) 27 mm 26.5 mm
L (C) 38.7 mm 35 mm
FL (D) 15.6 mm 15.6 mm
FLOD (E) 79 mm 80 mm
C/Tube QTY 2 2
C/Tube Size 27x14x50.4 mm 27x14x50.4 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
45371
Vehicle Applications
45371 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HOLDEN APOLLO 1993-1997 - APOLLO JM, JP
LEXUS ES 1991-1997 - ES VCV10
LEXUS ES 1996-2001 - ES MCV20
LEXUS ES 2001-2008 - ES MCV30
TOYOTA AVALON 1995-2005 - AVALON MCX10
TOYOTA CAMRY 1991-1997 - CAMRY SDV10, SXV10, VDV10, VCV10
TOYOTA CAMRY 1996-2002 - CAMRY SXV20, MCV20
TOYOTA CAMRY 2001-2006 - CAMRY ACV36, MCV36
