Front Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
45365
Front Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

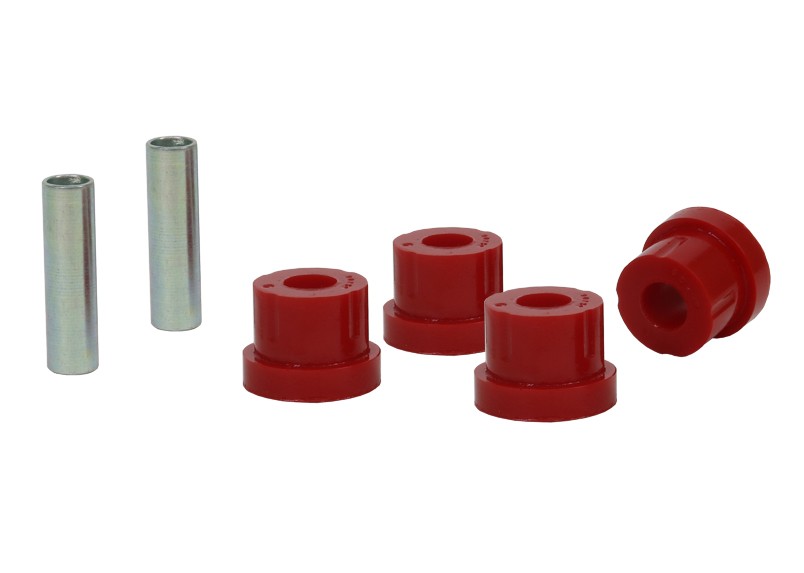

Kit Contents: 4 Bushings, 2 Tubes, Grease
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 34 mm 16 mm 29 mm 7.9 mm 41.2 mm 2 16x12.2x60 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 34 mm
ID (B) 16 mm
L (C) 29 mm
FL (D) 7.9 mm
FLOD (E) 41.2 mm
C/Tube QTY 2
C/Tube Size 16x12.2x60 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 02 EVEN A 05 ODD A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 02
Press Plate # (OUT) EVEN A
Support Sleeve # 05
Press Plate # ODD A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Nolathane Technical Ambassador Mark Larkham talks small cars
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Nolathane Technical Ambassador Mark Larkham talks small cars
45365
Vehicle Applications
45365 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HYUNDAI COUPE 1996-2002 - COUPE RD
HYUNDAI LANTRA 1991-1992 - LANTRA J1 1.6L
HYUNDAI LANTRA 1992-1995 - LANTRA J1 1.8L
HYUNDAI LANTRA 1995-2000 - LANTRA J2
HYUNDAI SONATA 1989-1998 - SONATA Y2, Y3
MITSUBISHI FTO 1994-2001 - FTO DE
MITSUBISHI LANCER 1989-1992 - LANCER CA, CB
MITSUBISHI LANCER 1992-1996 - LANCER CC WAGON AND HATCHBACK
MITSUBISHI LANCER 1992-1996 - LANCER CC SEDAN AND COUPE
MITSUBISHI LANCER 1996-2003 - LANCER CE SEDAN, COUPE AND HATCHBACK
MITSUBISHI LANCER 1997-2003 - LANCER CE WAGON
MITSUBISHI LANCER 2003-2008 - LANCER CG, CH, CS
MITSUBISHI MIRAGE 1996-2004 - MIRAGE CE
MITSUBISHI OUTLANDER 2003-2006 - OUTLANDER ZE, ZF
PROTON IMPIAN - WAJA 2001-2006 - IMPIAN-WAJA CF
PROTON JUMBUCK 2002-2010 - JUMBUCK UTE
PROTON M21 1995-2000 - M21 C99
PROTON PERSONA 1996-2004 - PERSONA C96, C97
PROTON SATRIA 1997-2007 - SATRIA C97, C98
PROTON WIRA 1995-2002 - WIRA C97, C98
