Nolathane
45341

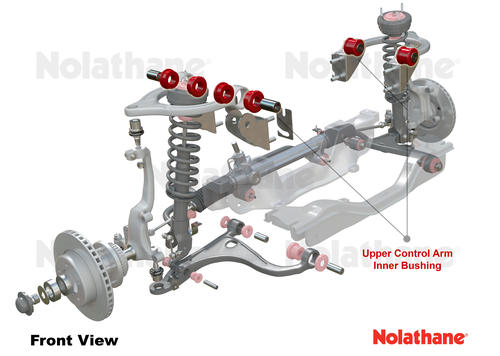

Front Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
45341
Front Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

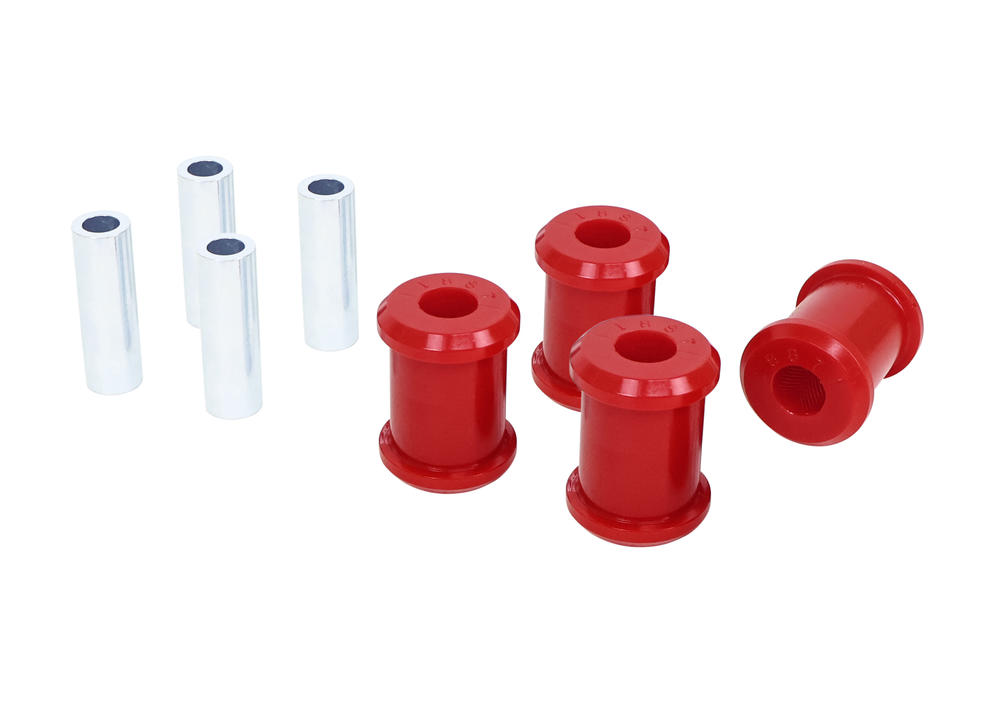

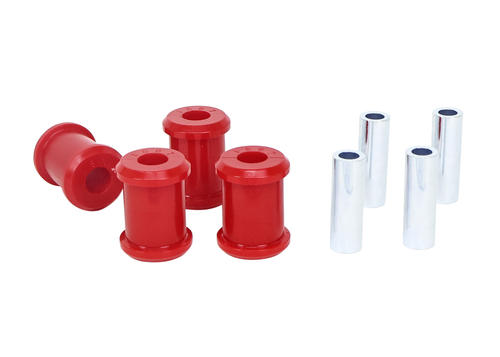

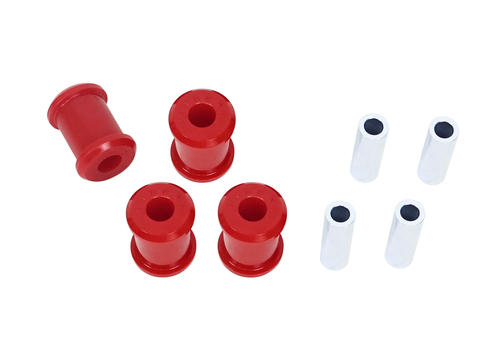

Kit Contents: 8 Bushings, 4 Tubes, Grease
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

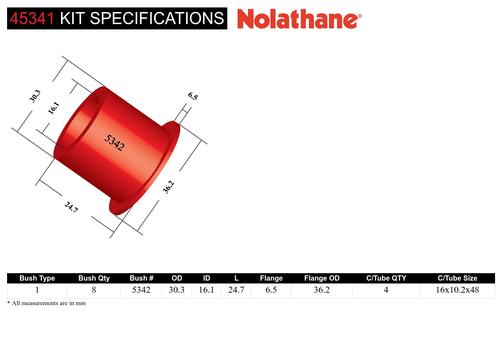

Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 8 30.3 mm 16.1 mm 24.7 mm 6.5 mm 36.2 mm 4 16x10.2x48 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 8
OD (A) 30.3 mm
ID (B) 16.1 mm
L (C) 24.7 mm
FL (D) 6.5 mm
FLOD (E) 36.2 mm
C/Tube QTY 4
C/Tube Size 16x10.2x48 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 01 ODD A 04 EVEN A M10 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 01
Press Plate # (OUT) ODD A
Support Sleeve # 04
Press Plate # EVEN A
Threaded Rod # M10
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
45341
Vehicle Applications
45341 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD FAIRLANE 1999-2002 - FAIRLANE AU
FORD FAIRLANE 2003-2007 - FAIRLANE BA, BF
FORD FAIRMONT 1998-2002 - FAIRMONT AU SEDAN SOLID REAR AXLE
FORD FAIRMONT 1998-2002 - FAIRMONT AU WAGON
FORD FAIRMONT 1998-2002 - FAIRMONT AU SEDAN IRS
FORD FAIRMONT 2002-2008 - FAIRMONT BA, BF
FORD FALCON 1998-2002 - FALCON AU WAGON, UTE AND CAB CHASSIS
FORD FALCON 1998-2002 - FALCON AU SEDAN IRS
FORD FALCON 1998-2002 - FALCON AU SEDAN SOLID REAR AXLE
FORD FALCON 2002-2008 - FALCON BA, BF WAGON, UTE AND CAB CHASSIS
FORD FALCON 2002-2008 - FALCON BA, BF SEDAN
FORD LTD 1999-2002 - LTD AU
FORD LTD 2003-2007 - LTD BA, BF
FORD TICKFORD 1999-2002 - TICKFORD TS 50 AU
FORD TICKFORD 1999-2002 - TICKFORD TL 50 AU
FORD TICKFORD 1999-2002 - TICKFORD TE 50 AU
FPV COBRA 2005-2007 - COBRA BF UTE
FPV F6 SERIES 2004-2007 - F6 TORNADO BA, BF
FPV F6 SERIES 2004-2006 - F6 TYPHOON BA
FPV FORCE 6 2005-2007 - FORCE 6 BF
FPV FORCE 8 2005-2007 - FORCE 8 BF
FPV GT SERIES 2004-2007 - GT / GT-E / GT-P / COBRA BA, BF SEDAN
FPV PURSUIT / SUPER PURSUIT 2004-2008 - PURSUIT / SUPER PURSUIT BA, BF
