Nolathane
45329
Front Axle Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
45329
Front Axle Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:

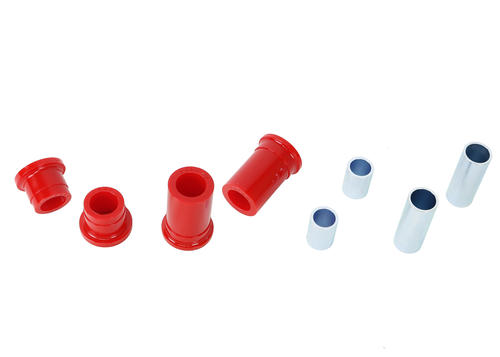

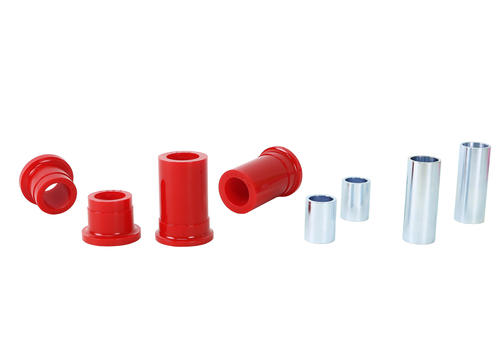

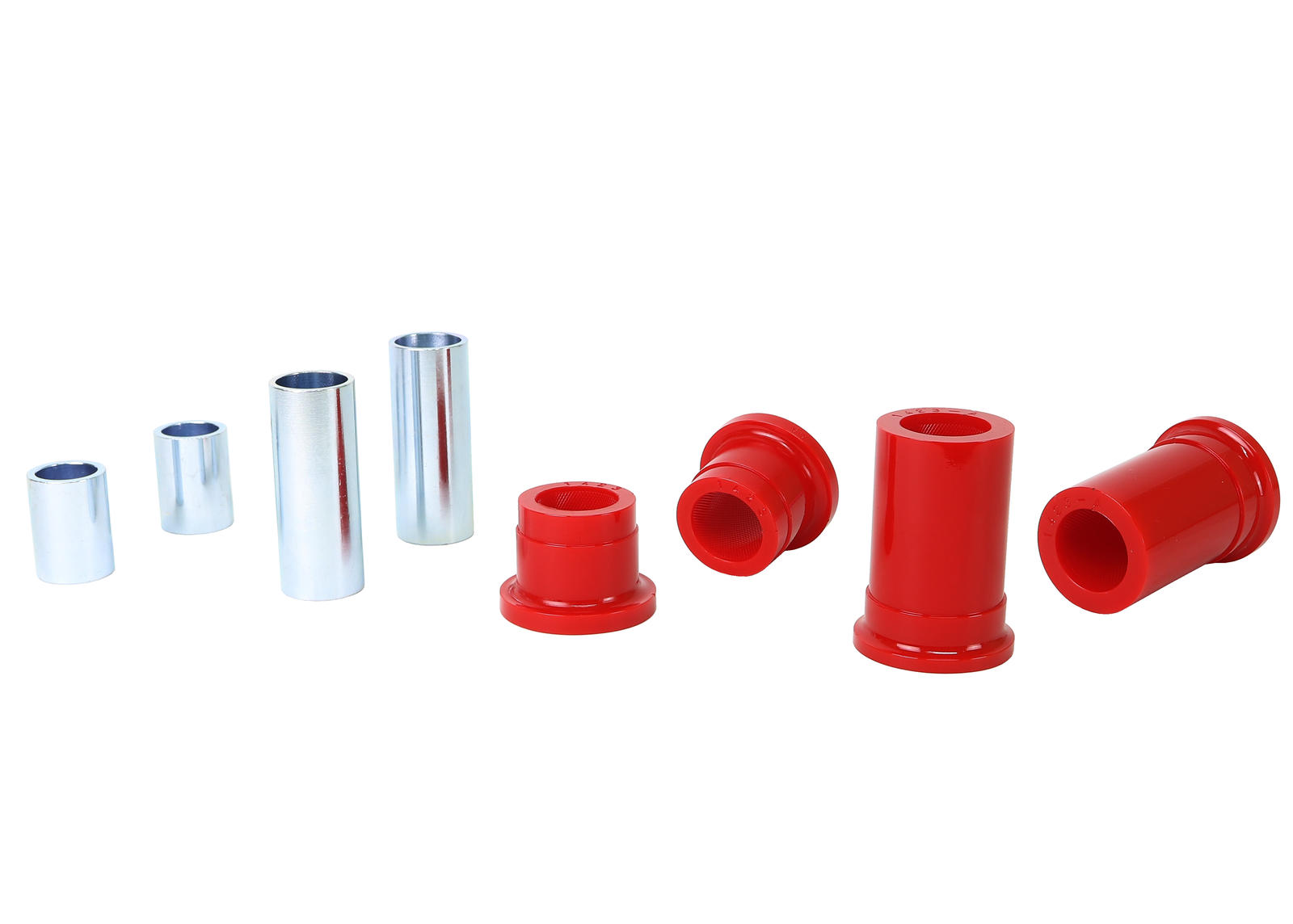

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 4 Bushings, 4 Tubes

Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 4 Bushings, 4 Tubes
Important Notes
  • Excludes models with OEM nylon washers
  • Installs into original shell
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 4 Bushings, 4 Tubes

Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 4 Bushings, 4 Tubes
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 40.2 mm 29 mm 39 mm 6.5 mm 54 mm 2 / 2 28.57x22.2x39 / 30x25.1x76.9 mm click here
1 4 44.8 mm 30 mm 77 mm 5 mm 54 mm 2 / 2 28.57x22.2x39 / 30x25.1x76.9 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 4 4
OD (A) 40.2 mm 44.8 mm
ID (B) 29 mm 30 mm
L (C) 39 mm 77 mm
FL (D) 6.5 mm 5 mm
FLOD (E) 54 mm 54 mm
C/Tube QTY 2 / 2 2 / 2
C/Tube Size 28.57x22.2x39 / 30x25.1x76.9 mm 28.57x22.2x39 / 30x25.1x76.9 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 03 Odd A 06 Even A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 03
Press Plate # (OUT) Odd A
Support Sleeve # 06
Press Plate # Even A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
45329
Vehicle Applications
45329 is suitable for the following vehicles. Select a vehicle for specific fitment details:
MITSUBISHI EXPRESS 1986-2006 - EXPRESS SF, SG, SH, SJ, WA 2WD
MITSUBISHI EXPRESS 1986-2006 - EXPRESS SF, SG, SH, SJ, WA 4WD
MITSUBISHI STARWAGON 1986-2004 - STARWAGON SF, SG, SH, SJ, WA 4WD
MITSUBISHI STARWAGON 1986-2006 - STARWAGON SF, SG, SH, SJ, WA 2WD
MITSUBISHI STARWAGON / DELICA / SPACE GEAR 1986-2006 - STARWAGON SF, SG, SH, SJ, WA 2WD
