Nolathane
45328

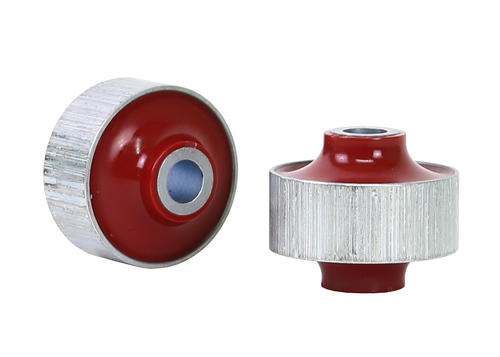

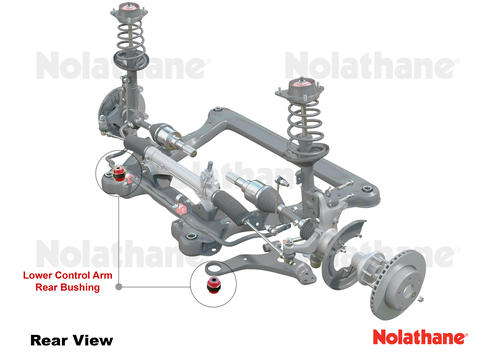

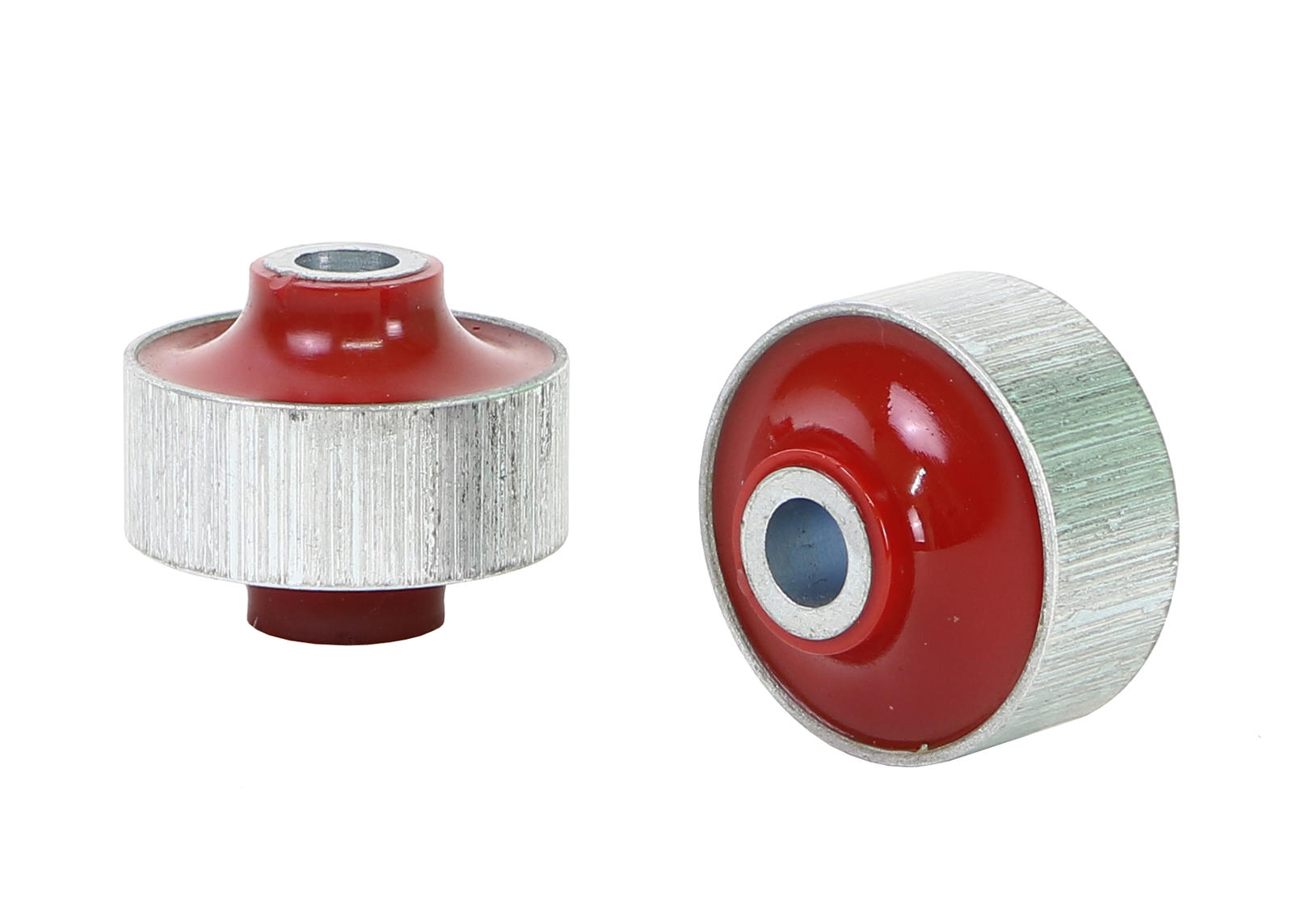

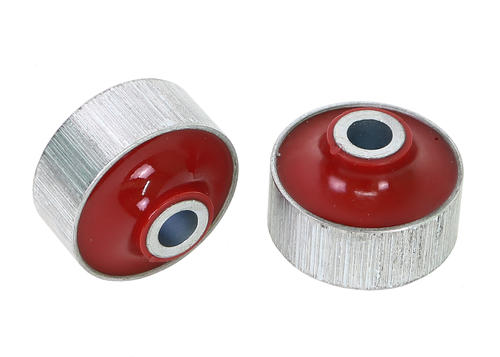

Front Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
45328
Front Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 2 Shell Bushings
Important Notes
Standard replacement
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

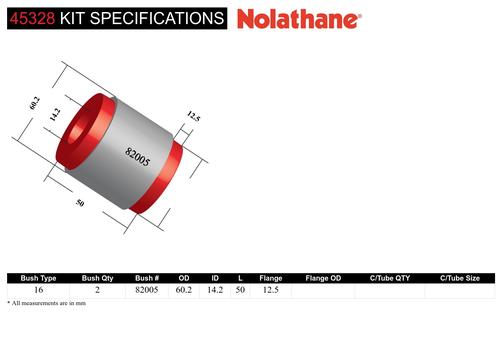

Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
17 2 60.2 mm 14.2 mm 50 mm 12.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 17
Bush Qty 2
OD (A) 60.2 mm
ID (B) 14.2 mm
L (C) 50 mm
FL (D) 12.5 mm
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
3 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
08 EVEN A 07 ODD A 10 EVEN A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
3 hrs Trade Specialist Yes
Press Sleeve # (IN) 08
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) 07
Press Plate # (OUT) ODD A
Support Sleeve # 10
Press Plate # EVEN A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
45328
Vehicle Applications
45328 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HOLDEN APOLLO 1993-1997 - APOLLO JM, JP
LEXUS ES 1991-2001 - ES VCV10R, MCV20R
LEXUS ES 2001-2008 - ES MCV30R
TOYOTA AVALON 2000-2006 - AVALON MCX10R
TOYOTA CAMRY 1992-1998 - CAMRY SDV10, SXV10, VDV10, VCV10
TOYOTA CAMRY 1997-2002 - CAMRY SXV20, MCV20
TOYOTA CAMRY 2002-2006 - CAMRY ACV36, MCV36
