| Kits Required: | 1 |
| Warranty: | Limited Lifetime Warranty |

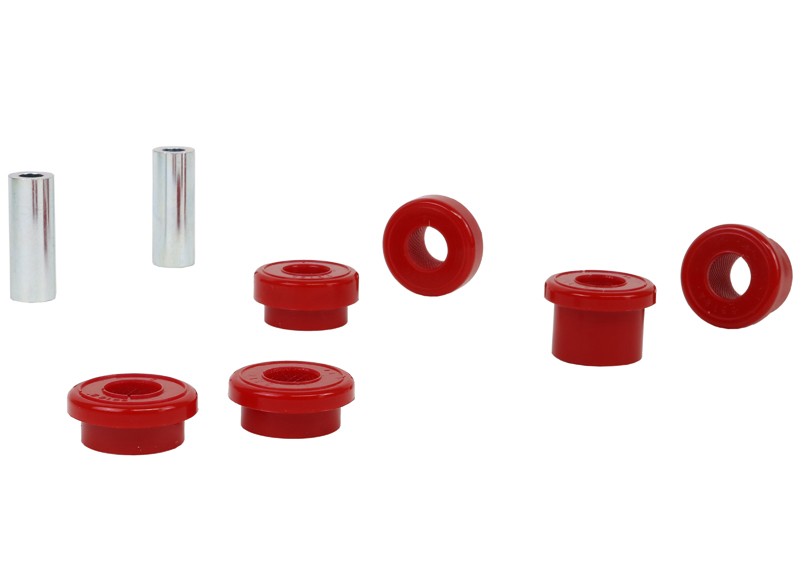

| Kit Contents: | 6 Bushings, 2 Tubes, Install Guide, Grease |
| Install Guide: | Download Here |
Important Notes
Fitter friendly design
US $ NAN
| Kits Required: | 1 |
| Warranty: | Limited Lifetime Warranty |
| Kit Contents: | 6 Bushings, 2 Tubes, Install Guide, Grease |
| Install Guide: | Download Here |
| Bush Type |
Bush Qty |
OD (A) |
ID (B) |
L (C) |
FL (D) |
FLOD (E) |
C/Tube QTY |
C/Tube Size |
Similar Bushing Size |
| 1 | 2 | 40.7 mm | 22 mm | 34 mm | 8 mm | 50 mm | 2 | 22.2x12.2x61 mm | click here |
| 1 | 2 | 39.7 mm | 22 mm | 20 mm | 8 mm | 50 mm | 2 | 22.2x12.2x61 mm | click here |
| 1 | 2 | 39.7 mm | 22 mm | 25.5 mm | 13.5 mm | 50 mm | 2 | 22.2x12.2x61 mm | click here |
| Bush Type | 1 | 1 | 1 |
| Bush Qty | 2 | 2 | 2 |
| OD (A) | 40.7 mm | 39.7 mm | 39.7 mm |
| ID (B) | 22 mm | 22 mm | 22 mm |
| L (C) | 34 mm | 20 mm | 25.5 mm |
| FL (D) | 8 mm | 8 mm | 13.5 mm |
| FLOD (E) | 50 mm | 50 mm | 50 mm |
| C/Tube QTY | 2 | 2 | 2 |
| C/Tube Size | 22.2x12.2x61 mm | 22.2x12.2x61 mm | 22.2x12.2x61 mm |
| Similar Bushing Size | click here | click here | click here |
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
| Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
| Click to Download | 1.5 hrs | DIY - With specialist tools | Yes |
| Press Sleeve # (IN) |
Press Plate # (IN) |
Press Sleeve # (OUT) |
Press Plate # (OUT) |
Support Sleeve # |
Press Plate # |
Threaded Rod # |
Press In/Out Kit |
| N/A | N/A | 03 | ODD A | 06 | EVEN A | M12 | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
| Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
| Click to Download | 1.5 hrs | DIY - With specialist tools | Yes |
| Press Sleeve # (IN) | N/A |
| Press Plate # (IN) | N/A |
| Press Sleeve # (OUT) | 03 |
| Press Plate # (OUT) | ODD A |
| Support Sleeve # | 06 |
| Press Plate # | EVEN A |
| Threaded Rod # | M12 |
| Press In/Out Kit | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
