Nolathane 45293 Front Axle Control Arm Lower - Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
45293
Front Axle Control Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
45293
Front Axle Control Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:

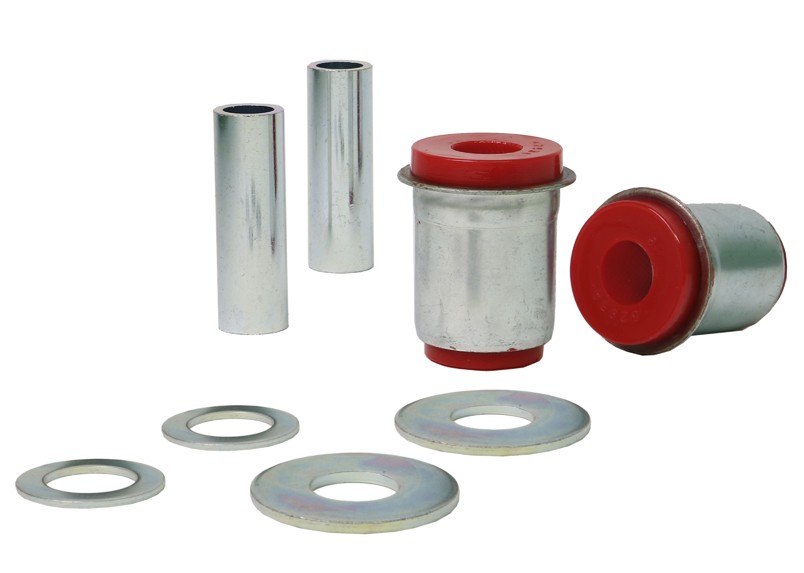

Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes, 4 Washers

Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 2
Warranty: lifetime warranty
Kit Contents: 2 Shell Bushings, 2 Tubes, 4 Washers
Install Guide: Download Here
Important Notes
  • OEM design
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes, 4 Washers

Contents
Kit Contains;

Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes, 4 Washers
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
17 2 AI=44.8 AII=43.5 mm 21.5 mm 65.5 mm 9 mm 46 mm 2 22.2x16.2x70 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 17
Bush Qty 2
OD (A) AI=44.8 AII=43.5 mm
ID (B) 21.5 mm
L (C) 65.5 mm
FL (D) 9 mm
FLOD (E) 46 mm
C/Tube QTY 2
C/Tube Size 22.2x16.2x70 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
05 Odd A 04 Even A 07 Odd A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve # (IN) 05
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 04
Press Plate # (OUT) Even A
Support Sleeve # 07
Press Plate # Odd A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
45293
Vehicle Applications
45293 is suitable for the following vehicles. Select a vehicle for specific fitment details:
TOYOTA 4 RUNNER 1985-1989 - 4 RUNNER LN61, YN63 (IFS AND LEAF REAR)
TOYOTA 4 RUNNER 1988-1996 - 4 RUNNER LN130, RN130, KVN130, VZN130, YN130
TOYOTA DYNA 1985-1995 - DYNA LH81, YH81
TOYOTA DYNA 100 1985-1995 - DYNA LH81, YH81
TOYOTA DYNA 100 1995-2001 - DYNA LY100, YY100
TOYOTA HIACE 1982-1989 - HIACE H50, 60, 70 SERIES
TOYOTA HIACE 1989-2005 - HIACE H100 SERIES
TOYOTA HILUX 1988-1997 - HILUX LN107, 111, RN106, 110, 111 4WD (IFS AND LEAF REAR)
TOYOTA HILUX 1997-2005 - HILUX KZN165, LN167, 172, RZN169, 174, VZN167 4WD
TOYOTA HILUX SURF 1988-1997 - HILUX SURF LN130, RN130, KVN130, VZN130, YN130
