Nolathane
45280
Front Control Arm Lower - Inner Bushing Kit
*** CONTACT NOLATHANE ***
45280
Front Control Arm Lower - Inner Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

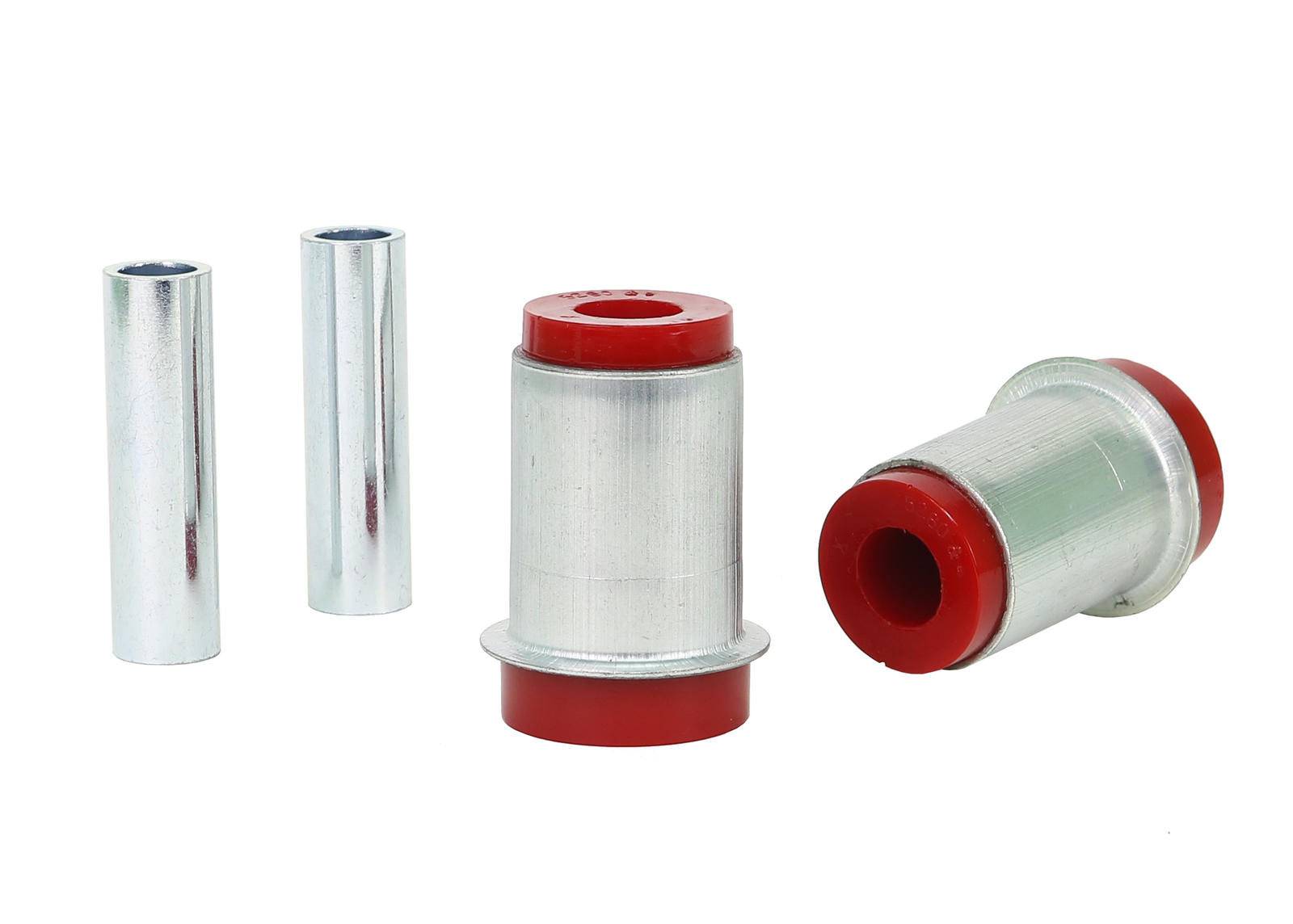

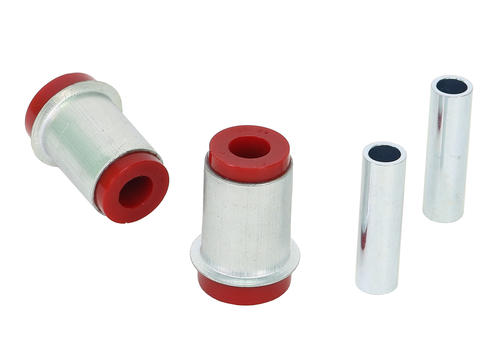

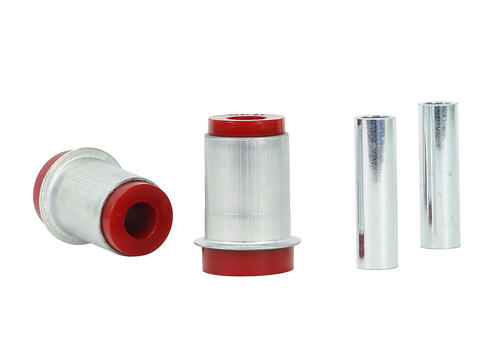

Kit Contents: 2 Shell Bushings, 2 Tubes, Grease
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
17 2 AI=45.4 AII=45 mm 19 mm 81 mm 14 mm 48.6 mm 2 19x16.2x80 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 17
Bush Qty 2
OD (A) AI=45.4 AII=45 mm
ID (B) 19 mm
L (C) 81 mm
FL (D) 14 mm
FLOD (E) 48.6 mm
C/Tube QTY 2
C/Tube Size 19x16.2x80 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
05 ODD A 04 EVEN A 07 ODD A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2 hrs Trade Specialist Yes
Press Sleeve # (IN) 05
Press Plate # (IN) ODD A
Press Sleeve # (OUT) 04
Press Plate # (OUT) EVEN A
Support Sleeve # 07
Press Plate # ODD A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Mark Larkham talks Dual Cab Utes
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Mark Larkham talks Dual Cab Utes
45280
Vehicle Applications
45280 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD ECONOVAN 1984-1997 - ECONOVAN SB, SE, SF, SG, SH 2WD
FORD ECONOVAN 1986-1988 - ECONOVAN SB, SE, SF, SG, SH 4WD
FORD ECONOVAN 1997-2006 - ECONOVAN JG, JH 2WD
FORD RANGER 2WD 2006-2011 - RANGER PJ, PK 2WD
FORD SPECTRON 1984-1990 - SPECTRON VAN 2WD
FORD SPECTRON 1986-1988 - SPECTRON VAN 4WD
MAZDA BT-50 2WD 2006-2011 - BT-50 UN 2WD
MAZDA E SERIES 1984-2006 - E SERIES E1800, E2000 E2200 2WD
MAZDA E SERIES 1984-1988 - E SERIES E1400, E1800 2WD
