Nolathane 451000 Front Axle Control Arm Lower - Inner Rear Bushing Kit-Single Offset
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
451000
Front Axle Control Arm Lower - Inner Rear Bushing Kit-Single Offset
*** CONTACT NOLATHANE ***
451000
Front Axle Control Arm Lower - Inner Rear Bushing Kit-Single Offset
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes
Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved braking performance, and less under load alignment change.
Kits Required: 1
Warranty: lifetime warranty

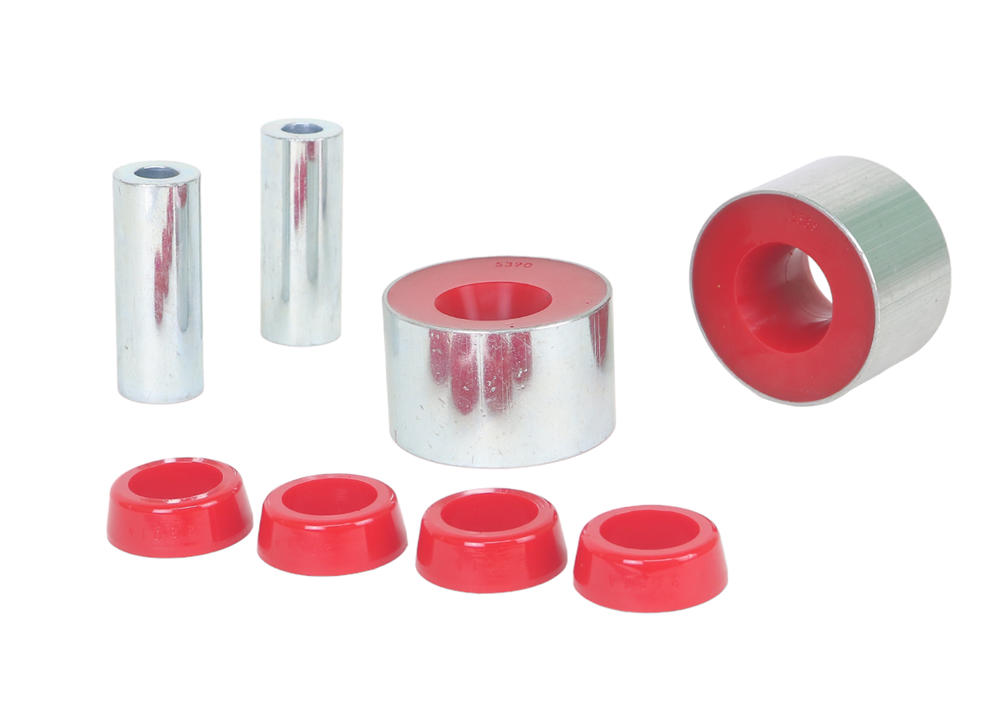

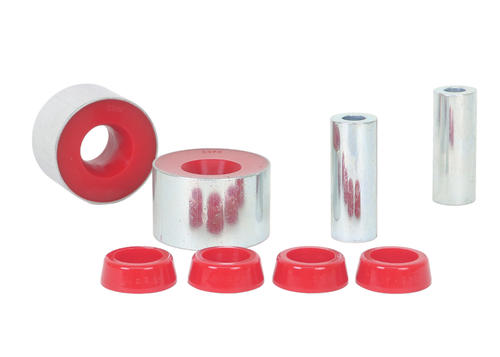

Kit Contents: 2 Shell Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
  • Steering-Pull Correction
  • 72mm OD - suits models to - 11/2011
  • Adds +0.5deg caster
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes

Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 6 72.1 mm 28.5 mm 45 mm 2 28.5x14.3x75 mm click here
3 6 AI=43 AII=38 mm 28 mm 15 mm 2 mm 43 mm 2 28.5x14.3x75 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16 3
Bush Qty 6 6
OD (A) 72.1 mm AI=43 AII=38 mm
ID (B) 28.5 mm 28 mm
L (C) 45 mm 15 mm
FL (D) 2 mm
FLOD (E) 43 mm
C/Tube QTY 2 2
C/Tube Size 28.5x14.3x75 mm 28.5x14.3x75 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 1.5 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
10 Even A 09 Odd A 13 Odd B M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 1.5 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) 10
Press Plate # (IN) Even A
Press Sleeve # (OUT) 09
Press Plate # (OUT) Odd A
Support Sleeve # 13
Press Plate # Odd B
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
451000
Vehicle Applications
451000 is suitable for the following vehicles. Select a vehicle for specific fitment details:
NISSAN ELGRAND 2010-ON - ELGRAND E52
NISSAN MAXIMA 2008-2013 - MAXIMA J32
NISSAN MURANO 2007-2014 - MURANO Z51
