Nolathane
45087
Front Control Arm Lower - Inner Bushing Kit
*** CONTACT NOLATHANE ***
45087
Front Control Arm Lower - Inner Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

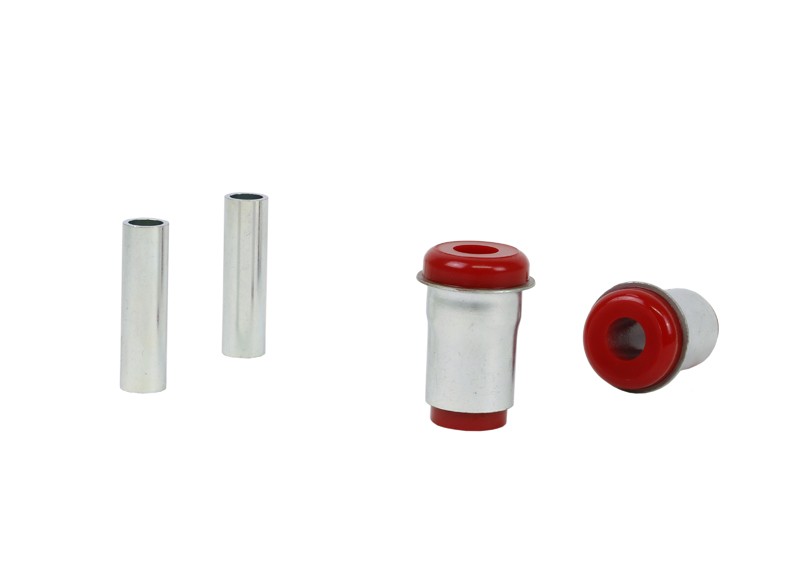

Kit Contents: 2 Shell Bushings, 2 Tubes, Grease
Important Notes
Suits models 08/1974 - on
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
17 2 AI=32 AII=30 mm 16 mm 60 mm 10 mm 36 mm 2 16x12.2x59 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 17
Bush Qty 2
OD (A) AI=32 AII=30 mm
ID (B) 16 mm
L (C) 60 mm
FL (D) 10 mm
FLOD (E) 36 mm
C/Tube QTY 2
C/Tube Size 16x12.2x59 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
02 EVEN A 01 ODD A 04 EVEN A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2 hrs Trade Specialist Yes
Press Sleeve # (IN) 02
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) 01
Press Plate # (OUT) ODD A
Support Sleeve # 04
Press Plate # EVEN A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Nolathane Technical Ambassador Mark Larkham talks small cars
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Nolathane Technical Ambassador Mark Larkham talks small cars
45087
Vehicle Applications
45087 is suitable for the following vehicles. Select a vehicle for specific fitment details:
TOYOTA CELICA 1971-1975 - CELICA TA22
TOYOTA CELICA 1971-1977 - CELICA RA23, RA28
TOYOTA CELICA 1977-1981 - CELICA RA40
TOYOTA CELICA 1977-1981 - CELICA TA40
TOYOTA CELICA 1981-1983 - CELICA RA60 SOLID REAR AXLE
TOYOTA CELICA 1981-1985 - CELICA RA61, 65, SA63 IRS
TOYOTA COROLLA 1970-1981 - COROLLA KE20, 25, 26, 30, 35, 36, 38
TOYOTA COROLLA 1977-1981 - COROLLA KE50, 55
TOYOTA COROLLA 1979-1985 - COROLLA KE70, 71, AE70, 71 SEDAN AND HATCH
TOYOTA COROLLA 1979-1987 - COROLLA KE70, 71, AE70, 71 WAGON
TOYOTA COROLLA 1983-1987 - COROLLA AE86 SPRINTER
TOYOTA COROLLA SPRINTER 1983-1987 - COROLLA SPRINTER AE86
TOYOTA CORONA 1979-1983 - CORONA RT132, RT133, XT130 SEDAN
TOYOTA CORONA 1979-1983 - CORONA RT132, RT133, XT130 WAGON
TOYOTA CORONA 1983-1987 - CORONA RT142, ST141
TOYOTA CRESSIDA 1977-1981 - CRESSIDA MX32, MX36 SEDAN
TOYOTA CRESSIDA 1977-1981 - CRESSIDA MX32, MX36 WAGON
TOYOTA CRESSIDA 1981-1985 - CRESSIDA MX62
TOYOTA CRESSIDA 1984-1988 - CRESSIDA MX73
TOYOTA SUPRA 1981-1985 - SUPRA MA61
TOYOTA SUPRA 1982-1985 - SUPRA RA61, 65, SA63
TOYOTA T18 1979-1982 - T18 TE72
