Nolathane
45011A
Front Control Arm Lower - Inner Bushing Kit
*** CONTACT NOLATHANE ***
45011A
Front Control Arm Lower - Inner Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

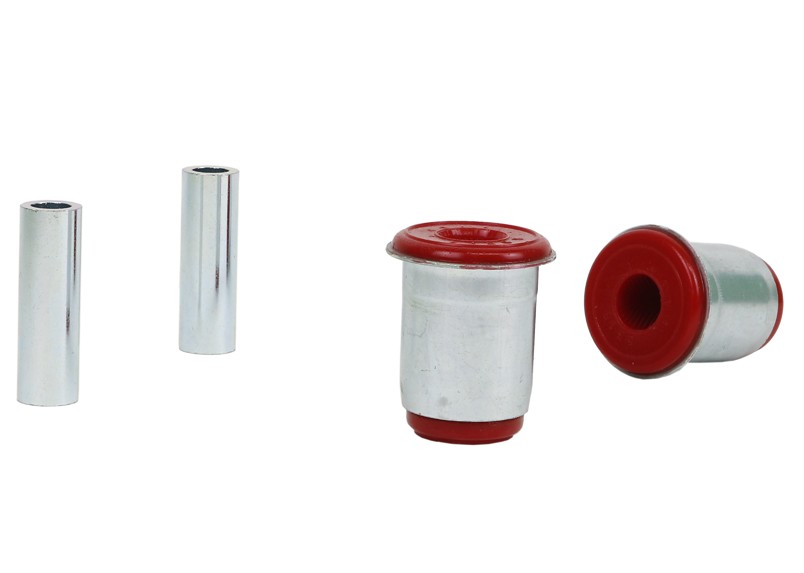

Kit Contents: 2 Shell Bushings, 2 Tubes, Grease
Important Notes
Direct OEM replacement design
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
17 2 AI=41 AII=39.5 mm 19 mm 62 mm 6.5 mm 47.3 mm 2 19x12.2x61 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 17
Bush Qty 2
OD (A) AI=41 AII=39.5 mm
ID (B) 19 mm
L (C) 62 mm
FL (D) 6.5 mm
FLOD (E) 47.3 mm
C/Tube QTY 2
C/Tube Size 19x12.2x61 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1.5 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
04 EVEN A 03 ODD A 06 EVEN A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1.5 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) 04
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) 03
Press Plate # (OUT) ODD A
Support Sleeve # 06
Press Plate # EVEN A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
45011A
Vehicle Applications
45011A is suitable for the following vehicles. Select a vehicle for specific fitment details:
HOLDEN CALAIS 1985-1988 - CALAIS VK, VL SEDAN
HOLDEN CALAIS 1988-1988 - CALAIS VL WAGON
HOLDEN CALAIS 1988-1991 - CALAIS VN
HOLDEN CALAIS 1991-1993 - CALAIS VP
HOLDEN CALAIS 1993-1997 - CALAIS VR, VS
HOLDEN CALAIS 1997-2000 - CALAIS VT
HOLDEN CALAIS 2000-2002 - CALAIS VX
HOLDEN CALAIS 2002-2004 - CALAIS VY
HOLDEN CALAIS 2004-2006 - CALAIS VZ
HOLDEN CAPRICE 1990-1994 - CAPRICE VQ
HOLDEN CAPRICE 1994-1999 - CAPRICE VR, VS
HOLDEN CAPRICE 1999-2003 - CAPRICE WH
HOLDEN CAPRICE 2003-2004 - CAPRICE WK
HOLDEN CAPRICE 2004-2006 - CAPRICE WL
HOLDEN COMMODORE 1978-1988 - COMMODORE VB, VC, VH, VK, VL WAGON (INCL HDT)
HOLDEN COMMODORE 1978-1988 - COMMODORE VB, VC, VH, VK, VL SEDAN (INCL HDT)
HOLDEN COMMODORE 1988-1993 - COMMODORE VN, VP, VG WAGON AND UTE
HOLDEN COMMODORE 1988-1993 - COMMODORE VN, VP SEDAN
HOLDEN COMMODORE 1993-2000 - COMMODORE VR, VS WAGON AND UTE
HOLDEN COMMODORE 1993-1997 - COMMODORE VR, VS SEDAN
HOLDEN COMMODORE 1997-2000 - COMMODORE VT SEDAN AND WAGON
HOLDEN COMMODORE 2000-2002 - COMMODORE VX SEDAN AND WAGON
HOLDEN COMMODORE 2000-2002 - COMMODORE VU UTE
HOLDEN COMMODORE 2002-2004 - COMMODORE VY
HOLDEN COMMODORE 2004-2006 - COMMODORE VZ RWD
HOLDEN CREWMAN 2003-2004 - CREWMAN VY RWD
HOLDEN CREWMAN 2004-2007 - CREWMAN VZ RWD
HOLDEN MONARO 2001-2004 - MONARO V2
HOLDEN MONARO 2004-2006 - MONARO VZ
HOLDEN ONE TONNER 2002-2004 - ONE TONNER VY
HOLDEN ONE TONNER 2004-2006 - ONE TONNER VZ
HOLDEN STATESMAN 1990-1994 - STATESMAN VQ
HOLDEN STATESMAN 1994-1999 - STATESMAN VR, VS
HOLDEN STATESMAN 1999-2003 - STATESMAN WH
HOLDEN STATESMAN 2003-2004 - STATESMAN WK
HOLDEN STATESMAN 2004-2006 - STATESMAN WL
HSV CLUBSPORT 1989-1991 - CLUBSPORT VN
HSV CLUBSPORT 1993-1994 - CLUBSPORT VP
HSV CLUBSPORT 1993-1997 - CLUBSPORT VR, VS WAGON
HSV CLUBSPORT 1993-1997 - CLUBSPORT VR, VS SEDAN
