Nolathane
45006
Front Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
45006
Front Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

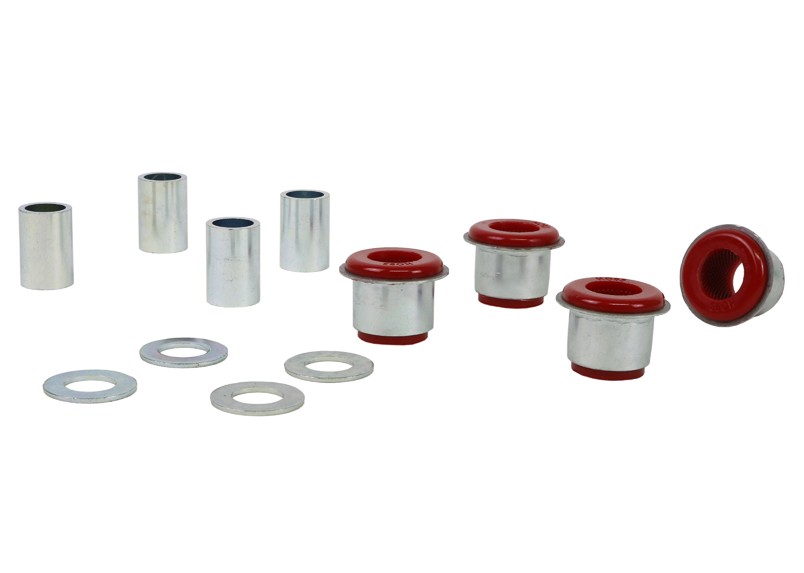

Kit Contents: 4 Shell Bushings, 4 Tubes, 4 Washers, Install Guide, Grease
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
17 4 AI=33.5 AII=32.5 mm 22.2 mm 33.5 mm 5.5 mm 39 mm 4 22.2x17.2x33 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 17
Bush Qty 4
OD (A) AI=33.5 AII=32.5 mm
ID (B) 22.2 mm
L (C) 33.5 mm
FL (D) 5.5 mm
FLOD (E) 39 mm
C/Tube QTY 4
C/Tube Size 22.2x17.2x33 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
03 ODD A 01 ODD A 04 EVEN A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) 03
Press Plate # (IN) ODD A
Press Sleeve # (OUT) 01
Press Plate # (OUT) ODD A
Support Sleeve # 04
Press Plate # EVEN A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication

Larko Talks Family Movers
Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication

Larko Talks Family Movers
45006
Vehicle Applications
45006 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HOLDEN H SERIES 1969-1971 - H SERIES HT, HG
HOLDEN H SERIES 1971-1976 - H SERIES HQ, HJ SEDAN AND WAGON
HOLDEN H SERIES 1971-1976 - H SERIES HQ, HJ UTE, VAN AND CAB CHASSIS
HOLDEN H SERIES 1976-1980 - H SERIES HX, HZ SEDAN AND WAGON
HOLDEN H SERIES 1976-1980 - H SERIES HX, HZ UTE, VAN AND CAB CHASSIS
HOLDEN MONARO 1969-1971 - MONARO HT, HG
HOLDEN MONARO 1974-1976 - MONARO HQ, HJ
HOLDEN MONARO 1976-1980 - MONARO HX, HZ
HOLDEN STATESMAN 1980-1985 - STATESMAN WB
HOLDEN SUNBIRD 1977-1978 - SUNBIRD LX
HOLDEN SUNBIRD 1978-1980 - SUNBIRD UC
HOLDEN TORANA 1971-1975 - TORANA LC, LJ, TA
HOLDEN TORANA 1970-1974 - TORANA GTR XU-1 LJ
HOLDEN TORANA 1975-1978 - TORANA LH, LX SUNBIRD
HOLDEN TORANA 1974-1978 - TORANA LH, LX
HOLDEN TORANA 1978-1979 - TORANA UC
HOLDEN WB 1980-1985 - WB UTE AND VAN
