Nolathane
44030
Front Axle Strut Mount - Bushing Kit
*** CONTACT NOLATHANE ***
44030
Front Axle Strut Mount - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

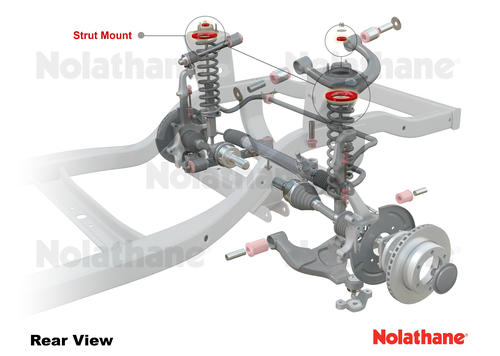

Hard working or lifted commercial or 4x4 vehicles tend to suffer from premature wear of the upper strut mount/ shock absorber bushings. Designed to work with the original OEM strut top, each Nolathane kit contains both upper strut mount pads and shock absorber pin bushings to restore the strut mount to as new condition.
Kits Required: 1
Warranty: Limited Lifetime Warranty

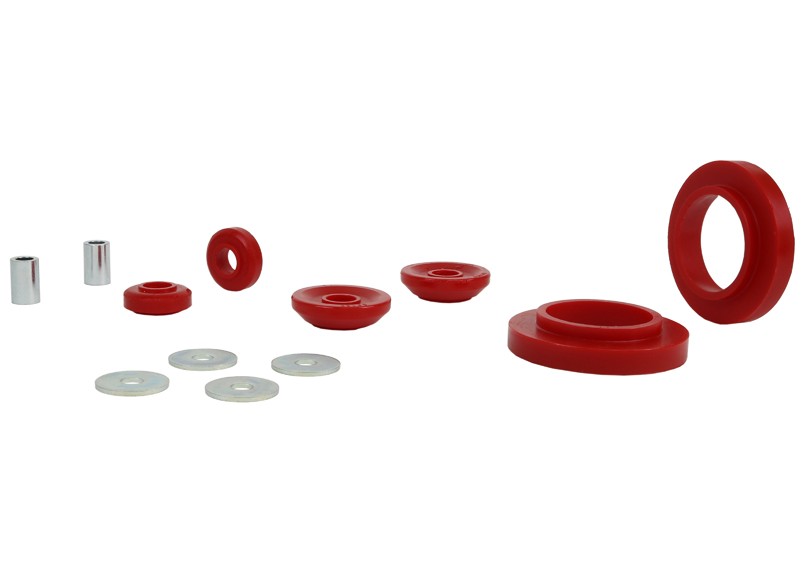

Kit Contents: 6 Bushings, 2 Tubes, 4 Washers
Install Guide: Download Here
Important Notes
  • Includes top spring pad
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

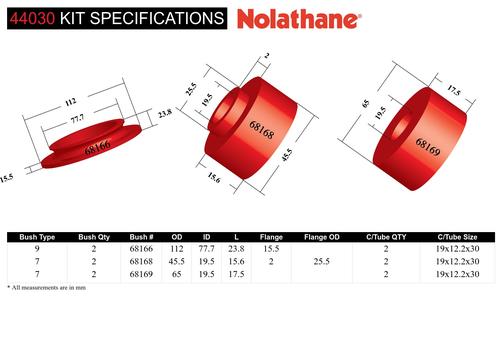

Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
7 6 65 mm 19.5 mm 17.5 mm 2 19x12.2x30 mm click here
7 6 45.5 mm 19.5 mm 15.6 mm 2 mm 25.5 mm 2 19x12.2x30 mm click here
9 6 112 mm 77.7 mm 23.8 mm 15.5 mm 2 19x12.2x30 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 7 7 9
Bush Qty 6 6 6
OD (A) 65 mm 45.5 mm 112 mm
ID (B) 19.5 mm 19.5 mm 77.7 mm
L (C) 17.5 mm 15.6 mm 23.8 mm
FL (D) 2 mm 15.5 mm
FLOD (E) 25.5 mm
C/Tube QTY 2 2 2
C/Tube Size 19x12.2x30 mm 19x12.2x30 mm 19x12.2x30 mm
Similar Bushing Size click here click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 1.5 hrs DIY - With specialist tools Yes
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 1.5 hrs DIY - With specialist tools Yes
44030
Vehicle Applications
44030 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD EVEREST 2015-2018 - EVEREST UA 2WD
FORD EVEREST 2015-2018 - EVEREST UA 4WD
FORD RANGER 2011-2015 - RANGER PX I 2WD
FORD RANGER 2011-2015 - RANGER PX I 4WD
FORD RANGER 2015-2018 - RANGER PXII 4WD
FORD RANGER 2015-2018 - RANGER PXII 2WD
MAZDA BT-50 2011-2020 - BT-50 UP, UR 2WD
MAZDA BT-50 2011-2020 - BT-50 UP, UR 4WD
