Nolathane
43102
Rear Shock Absorber - Upper Bushing Kit
*** CONTACT NOLATHANE ***
43102
Rear Shock Absorber - Upper Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Nolathane shock bushings enhance the performance of new and used shock absorbers.
Kits Required: 1
Warranty: Limited Lifetime Warranty

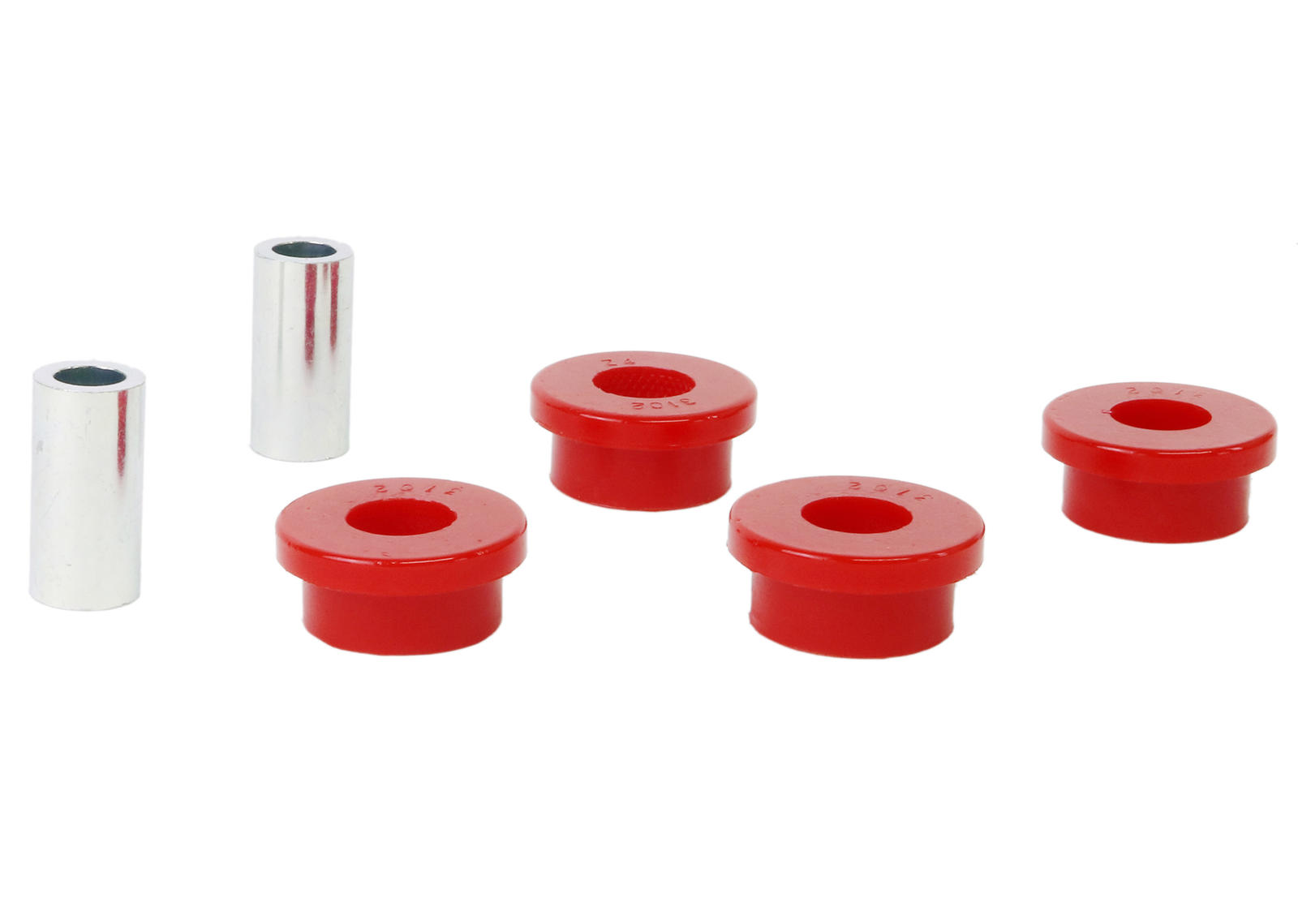

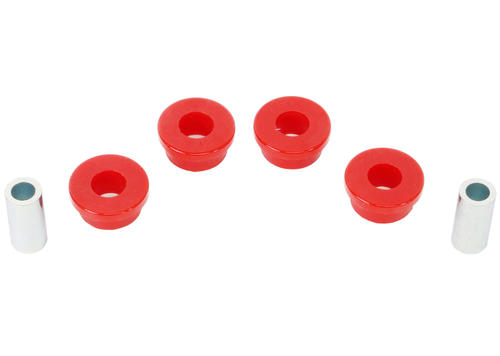

Kit Contents: 4 Bushings, 2 Tubes, Grease
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 33 mm 18.6 mm 19 mm 6 mm 43 mm 2 19x12.2x39 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 33 mm
ID (B) 18.6 mm
L (C) 19 mm
FL (D) 6 mm
FLOD (E) 43 mm
C/Tube QTY 2
C/Tube Size 19x12.2x39 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 02 EVEN A 05 ODD A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 02
Press Plate # (OUT) EVEN A
Support Sleeve # 05
Press Plate # ODD A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Larko explains Shock Absorbers and the important role Shock Bushings play

How hard is Nolathane?

Larko talks Family Movers
Videos

Larko explains Shock Absorbers and the important role Shock Bushings play

How hard is Nolathane?

Larko talks Family Movers
43102
Vehicle Applications
43102 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD FAIRLANE 2003-2007 - FAIRLANE BA, BF
FORD FAIRMONT 2002-2008 - FAIRMONT BA, BF
FORD FALCON 2002-2008 - FALCON BA, BF SEDAN
FORD LTD 2003-2007 - LTD BA, BF
FORD TERRITORY 2004-2011 - TERRITORY SX, SY AWD
FORD TERRITORY 2004-2011 - TERRITORY SX, SY RWD
FPV F6 SERIES 2004-2006 - F6 TYPHOON BA
FPV F6X 2008-2009 - F6X SY
FPV FORCE 6 2005-2007 - FORCE 6 BF
FPV FORCE 8 2005-2007 - FORCE 8 BF
FPV GT SERIES 2004-2007 - GT / GT-E / GT-P / COBRA BA, BF SEDAN
