Nolathane
43096
Rear Axle Shock Absorber - Lower Bushing Kit
*** CONTACT NOLATHANE ***
43096
Rear Axle Shock Absorber - Lower Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Nolathane shock bushings enhance the performance of new and used shock absorbers.
Kits Required: 1
Warranty: Limited Lifetime Warranty

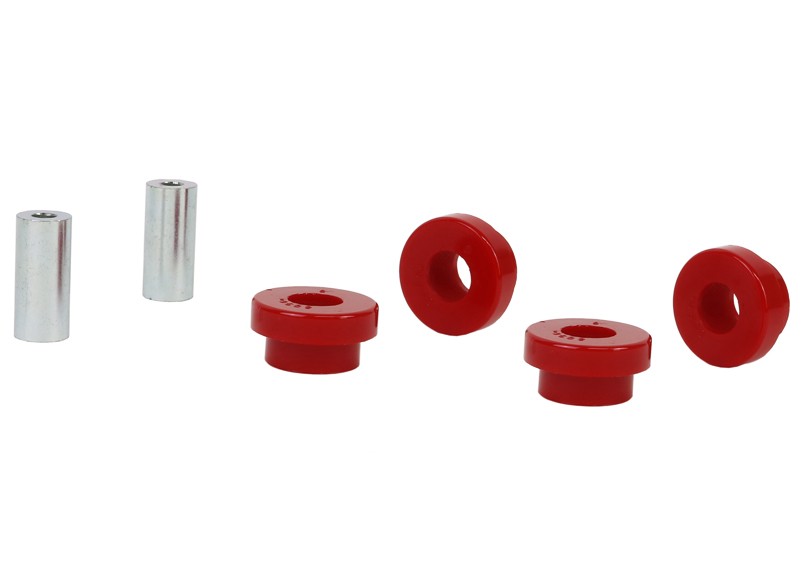

Kit Contents: 4 Bushings, 2 Tubes
Important Notes
  • Suits models with cast arm
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 37.2 mm 22 mm 25 mm 12 mm 50 mm 2 22.2x10.2x50 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 37.2 mm
ID (B) 22 mm
L (C) 25 mm
FL (D) 12 mm
FLOD (E) 50 mm
C/Tube QTY 2
C/Tube Size 22.2x10.2x50 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2 hrs DIY - Do it yourself
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 02 Even A 05 Odd A M10 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2 hrs DIY - Do it yourself
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 02
Press Plate # (OUT) Even A
Support Sleeve # 05
Press Plate # Odd A
Threaded Rod # M10
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

43096
Vehicle Applications
43096 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HONDA CIVIC 1987-1993 - CIVIC 4TH GEN EC, ED, EE
HONDA CIVIC 1991-1995 - CIVIC 5TH GEN EG, EH
HONDA CIVIC 1994-2001 - CIVIC 6TH GEN EJ, EK, EM
HONDA CRX 1987-1992 - CRX ED, EE
HONDA CRX 1992-1998 - CRX EG, EH
HONDA HR-V 1999-2006 - HR-V GH
HONDA INTEGRA 1986-1993 - INTEGRA DA, DB
HONDA INTEGRA 1993-2001 - INTEGRA DC2, DC4
HONDA INTEGRA 1993-2001 - INTEGRA DC2 TYPE R
