43022
Rear Axle Shock Absorber - Lower Bushing Kit
*** CONTACT NOLATHANE ***
43022

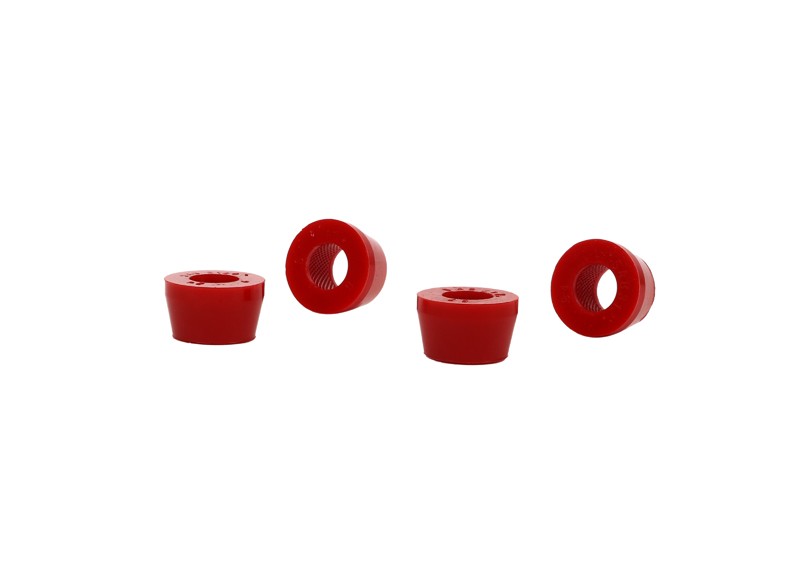

Rear Axle Shock Absorber - Lower Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Nolathane shock bushings enhance the performance of new and used shock absorbers.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 4 Bushings
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
3 4 AI=38 AII=31.5 mm 19.4 mm 22.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 3
Bush Qty 4
OD (A) AI=38 AII=31.5 mm
ID (B) 19.4 mm
L (C) 22.5 mm
FL (D)
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 01 Odd A 04 Even A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 01
Press Plate # (OUT) Odd A
Support Sleeve # 04
Press Plate # Even A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

43022
Vehicle Applications
43022 is suitable for the following vehicles. Select a vehicle for specific fitment details:
LAND ROVER 110/127 1983-1990 - 110/127 L316 LDH
LAND ROVER 88/109 1956-1961 - 88/109 SERIES 1, 2
LAND ROVER 88/109 1961-1971 - 88/109 SERIES 2A
LAND ROVER 88/109 1971-1986 - 88/109 SERIES 3
LAND ROVER 90 1984-1990 - 90 L316 LDV
LAND ROVER DEFENDER 1990-1998 - DEFENDER L316 TDI AND V8
LAND ROVER DEFENDER 1998-2016 - DEFENDER L316 TD5 AND V8
LAND ROVER DEFENDER 2007-2016 - DEFENDER L316, L317 PUMA ENGINE
LAND ROVER DISCOVERY 1989-1998 - DISCOVERY LJ SERIES 1
LAND ROVER DISCOVERY 1998-2004 - DISCOVERY L318 SERIES 2
LAND ROVER RANGE ROVER 1969-1986 - RANGE ROVER CLASSIC
LAND ROVER RANGE ROVER 1985-1996 - RANGE ROVER CLASSIC
TOYOTA 4 RUNNER 1988-1996 - 4 RUNNER LN130, RN130, KVN130, VZN130, YN130
TOYOTA HIACE 1982-1989 - HIACE H50, 60, 70 SERIES
TOYOTA HIACE 1989-2005 - H100 SERIES
TOYOTA HIACE 2005-2019 - HIACE H200 SERIES
TOYOTA HIACE / COMMUTER 2005-2019 - HIACE H200 SERIES
TOYOTA HILUX 1988-1997 - HILUX LN107, 111, RN106, 110, 111 4WD (IFS AND LEAF REAR)
TOYOTA HILUX 1988-1997 - HILUX RN105, LN106, YN106 4WD (LEAF FRONT AND REAR)
TOYOTA HILUX SURF 1988-1997 - HILUX SURF LN130, RN130, KVN130, VZN130, YN130
TOYOTA LAND CRUISER 1980-1989 - LAND CRUISER 60 SERIES
TOYOTA LAND CRUISER 1984-1996 - LAND CRUISER BUNDERA (COIL FRONT AND REAR)
TOYOTA LAND CRUISER 1984-1999 - LAND CRUISER 70 SERIES (LEAF FRONT AND REAR)
TOYOTA LAND CRUISER 1984-1996 - LAND CRUISER BUNDERA (LEAF FRONT AND REAR)
TOYOTA LAND CRUISER 1990-1997 - LAND CRUISER 80 SERIES
TOYOTA LAND CRUISER 1998-2007 - LAND CRUISER 105 SERIES
TOYOTA LAND CRUISER 1999-2007 - LAND CRUISER 74, 76, 78 SERIES
TOYOTA LAND CRUISER 1999-2007 - LAND CRUISER 79 SERIES
TOYOTA LAND CRUISER 2007-ON - LAND CRUISER 76, 78 SERIES
TOYOTA LAND CRUISER 2007-ON - LAND CRUISER 79 SERIES
