Nolathane
42896
Rear Axle Sway Bar Link - Assembly
*** CONTACT NOLATHANE ***
42896
Rear Axle Sway Bar Link - Assembly
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Nolathane heavy duty quick release sway bar links are a simple solution to provide your vehicle with on-road stability, and the ability to quickly allow the sway bar to be disconnected for extreme off-road articulation use. Greaseable bearing, multiple collet options, and ability to trim the length means these can be manipulated to suit a range of applications and will stand up to the test of times.
Kits Required: 2
Warranty: 1 Year / 20,000Kms

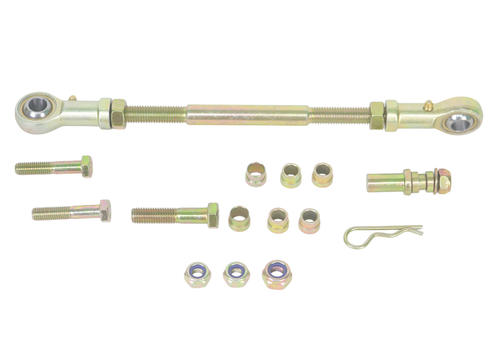

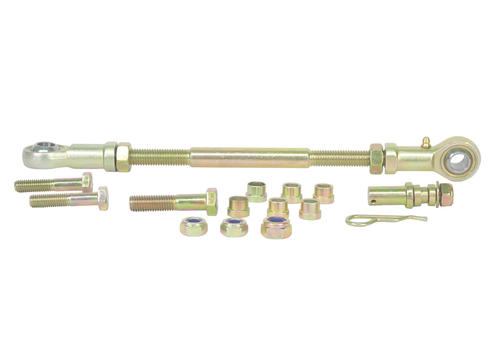

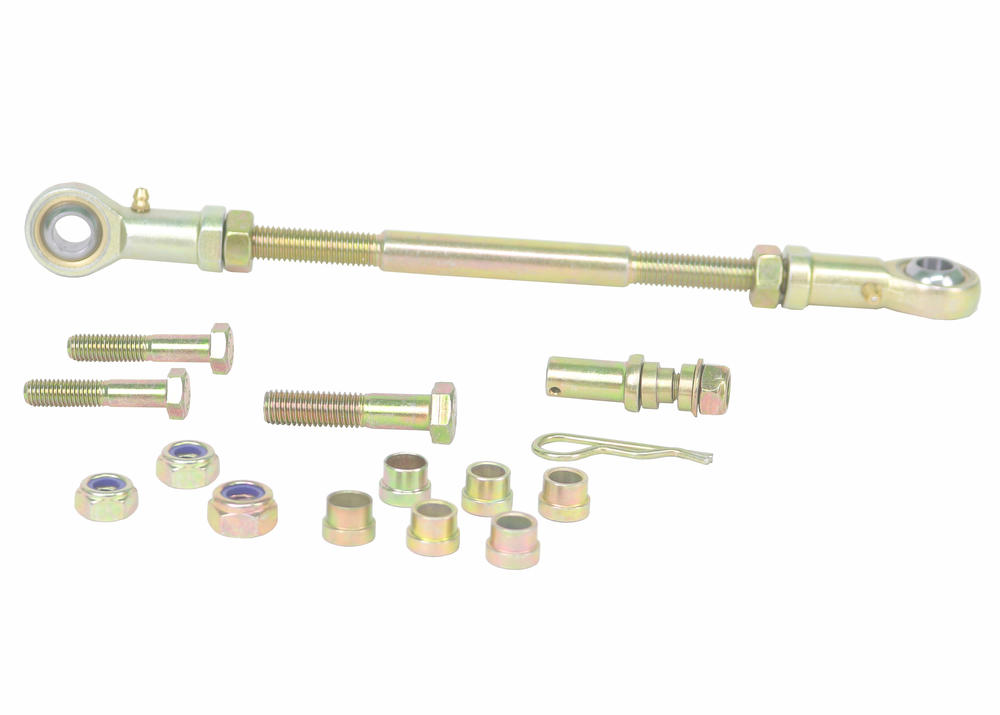

Kit Contents: 1 Link, 1 R Clip, 4 Bolts, 7 Colletts, 1 Spacer, 1 Washer, 6 Nuts
Important Notes
  • Adjustable extra heavy duty - quick disconnect
  • Suits lifted models 50 - 200mm
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
✓
Manufactured from high quality steel and include heavy duty steel ball joints ensuring maximum strength and durability.
✓
Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.
✓
Heavy duty ball joint ensures optimum durability & steering predictability.
✓
This kit is covered by a 1 Year / 20,000kms warranty including parts and labour.

Features
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
✓
Manufactured from high quality steel and include heavy duty steel ball joints ensuring maximum strength and durability.
✓
Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.
✓
Heavy duty ball joint ensures optimum durability & steering predictability.
✓
This kit is covered by a 1 Year / 20,000kms warranty including parts and labour.
Kit Specifications
Link Type Adjustable On Car Adjustable Adjustment Bolt Diameter Overall Length Configuration
Bearing Yes Yes 50mm 12mm 390mm-440mm Horizontal
Kit Specifications
Link Type Bearing
Adjustable Yes
On Car Adjustable Yes
Adjustment 50mm
Bolt Diameter 12mm
Overall Length 390mm-440mm
Configuration Horizontal
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
42896
Vehicle Applications
42896 is suitable for the following vehicles. Select a vehicle for specific fitment details:
JEEP GLADIATOR 2020-ON - GLADIATOR JT
MERCEDES-BENZ X-CLASS 2017-2020 - X-CLASS X470 4MATIC
NISSAN NAVARA 2015-ON - NAVARA D23, NP300 SINGLE & KING CAB 4WD (LEAF REAR)
NISSAN NAVARA 2015-ON - NAVARA D23, NP300 DUAL CAB 4WD (COIL REAR)
NISSAN NAVARA NP300 2015-ON - NAVARA D23, NP300 SINGLE & KING CAB 4WD (LEAF REAR)
NISSAN PATROL 1997-2016 - PATROL GU Y61 WAGON
NISSAN PATROL 1997-2016 - PATROL GU Y61 CAB CHASSIS (COIL FRONT AND REAR)
