Nolathane
42809
Sway Bar - Link 12mm Ball Stud
*** CONTACT NOLATHANE ***
42809
Sway Bar - Link 12mm Ball Stud
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Knock, knock, knock! That's the sound you hear when your sway bar links are not doing their job. Links are a common service item due to either worn or over compliant bushings/ joints and possibly bent or snapped centre bodies. Upgrade with Nolathane links boasting heavy duty joints and uprated centre body that outlast and outperform the original equipment.
Kits Required: 1
Warranty: 3 Year/ 60,000Km's

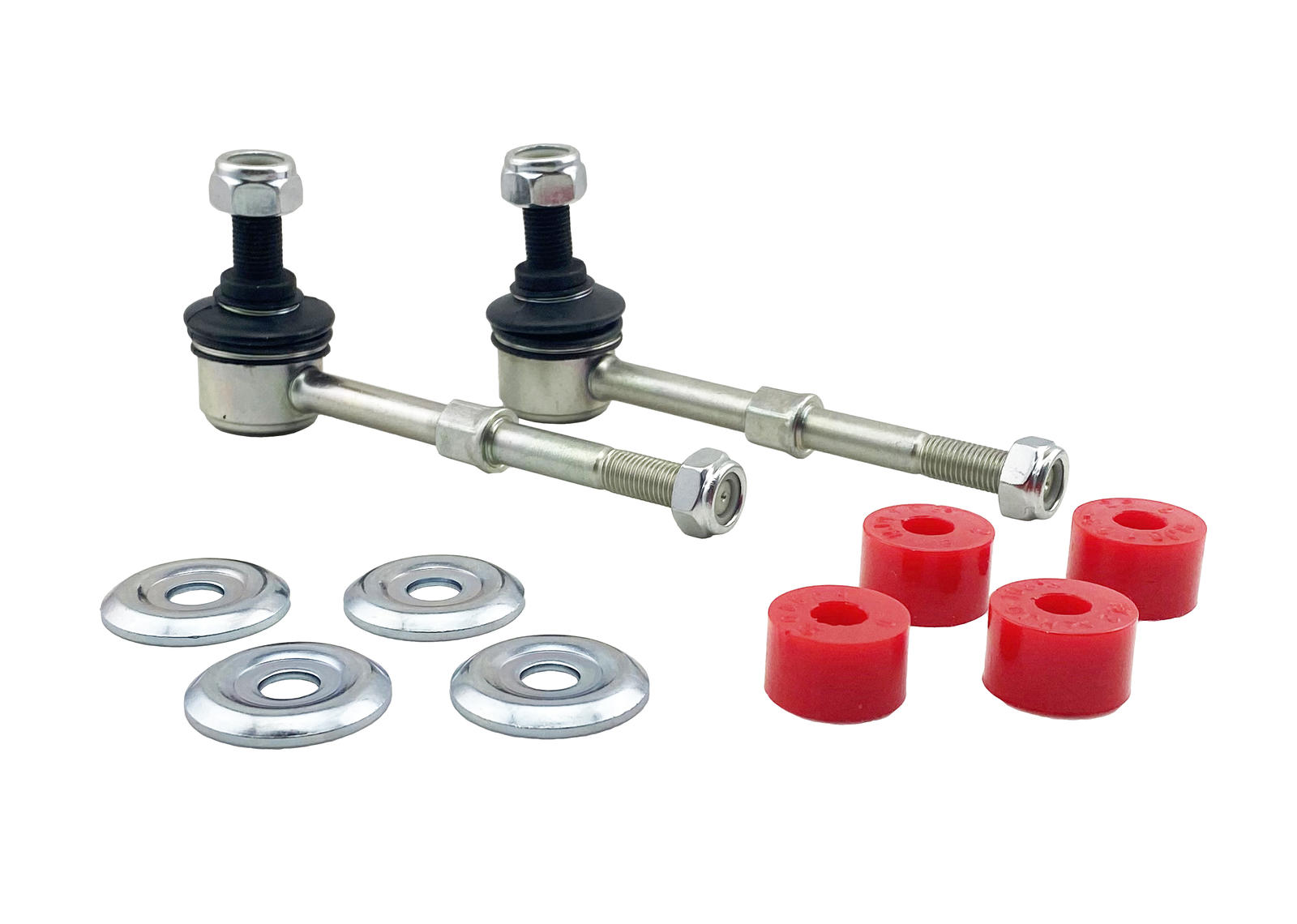

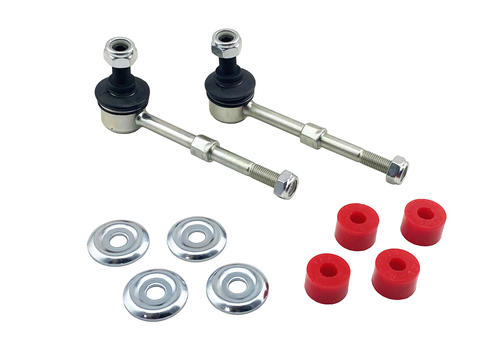

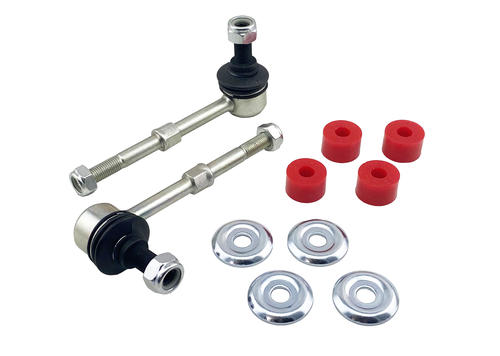

Kit Contents: 2 Links, 4 Bushings, 4 Washers
Important Notes
100mm - horizontal/vertical - 12mm ball stud/ 10mm bushing shank
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
Manufactured from high quality steel and include heavy duty steel ball joints ensuring maximum strength and durability.
Manufactured from high quality steel and utilise the latest in material formulation technology link bushings ensuring maximum strength and durability.
Heavy duty ball joint ensures optimum durability & steering predictability.
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

Features
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
Manufactured from high quality steel and include heavy duty steel ball joints ensuring maximum strength and durability.
Manufactured from high quality steel and utilise the latest in material formulation technology link bushings ensuring maximum strength and durability.
Heavy duty ball joint ensures optimum durability & steering predictability.
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
Kit Specifications
Link Type Adjustable On Car Adjustable Adjustment Bolt Diameter Notes Overall Length Configuration
Ball/Bushing Fixed N/A N/A 12mm Vehicle Specific Link 75mm Horizontal/ Vertical
Kit Specifications
Link Type Ball/Bushing
Adjustable Fixed
On Car Adjustable N/A
Adjustment N/A
Bolt Diameter 12mm
Notes Vehicle Specific Link
Overall Length 75mm
Configuration Horizontal/ Vertical
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Videos

Sway Bar Servicing Solutions
Videos

Sway Bar Servicing Solutions
42809
Vehicle Applications
42809 is suitable for the following vehicles. Select a vehicle for specific fitment details:
LEXUS NX 2014-ON - NX Z10, Z15
TOYOTA RAV 4 2013-2018 - RAV 4 ZSA42, ASA44, ALA49
UNIVERSAL PRODUCTS SWAY BAR - LINKS AND BUSHINGS SWAY BAR - LINK BALL/BUSHING STYLE
