Nolathane
42793
Sway Bar Link - 12mm Ball Stud
*** CONTACT NOLATHANE ***
42793
Sway Bar Link - 12mm Ball Stud
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge
Do you have every sway bar link on the shelf? Well you don't need too, Nolathane have developed a clever cut to length universal sway bar link that has a 12mm ball stud has a working range of 80-260mm c/c. 1 part number covers hundreds of applications.
Kits Required: 1
Warranty: 3 Year / 60,000Kms

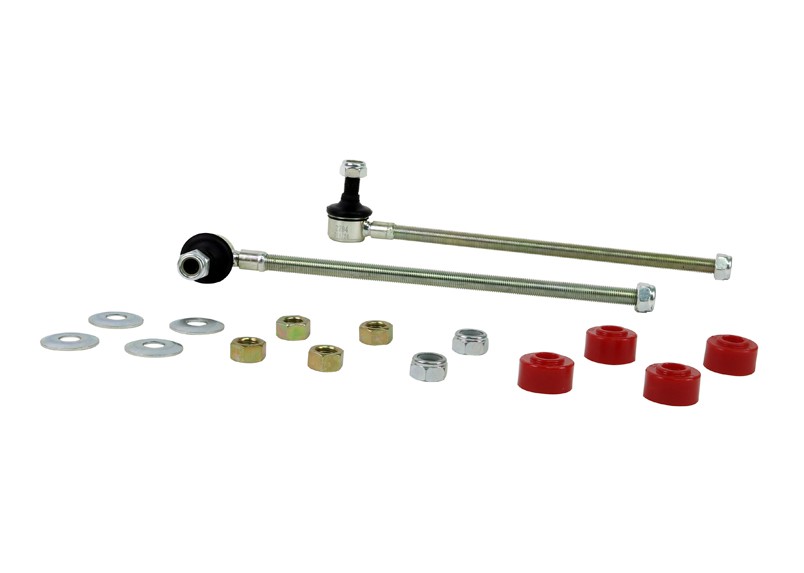

Kit Contents: 2 Links, 4 Bushings, 4 Washers
Important Notes
80-260mm - horizontal/vertical - universal cut to length link - 12mm ball stud/bushing shank
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
✓
Manufactured from high quality steel and include heavy duty steel ball joints ensuring maximum strength and durability.
✓
Manufactured from high quality steel and utilise the latest in material formulation technology link bushings ensuring maximum strength and durability.
✓
Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.
✓
Heavy duty ball joint ensures optimum durability & steering predictability.
✓
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
✓
Manufactured from high quality steel and include heavy duty steel ball joints ensuring maximum strength and durability.
✓
Manufactured from high quality steel and utilise the latest in material formulation technology link bushings ensuring maximum strength and durability.
✓
Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.
✓
Heavy duty ball joint ensures optimum durability & steering predictability.
✓
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
Kit Specifications
Link Type Adjustable On Car Adjustable Adjustment Bolt Diameter Notes Overall Length Configuration
Ball/Bushing Yes Yes 180mm 12mm Universal Cut To Length 80mm-260mm Horizontal/ Vertical
Kit Specifications
Link Type Ball/Bushing
Adjustable Yes
On Car Adjustable Yes
Adjustment 180mm
Bolt Diameter 12mm
Notes Universal Cut To Length
Overall Length 80mm-260mm
Configuration Horizontal/ Vertical
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Videos

Sway Bar Servicing Solutions

Fitting Tip - Link Pin Bushings
Videos

Sway Bar Servicing Solutions

Fitting Tip - Link Pin Bushings
42793
Vehicle Applications
42793 is suitable for the following vehicles. Select a vehicle for specific fitment details:
NISSAN PATROL 1997-2016 - PATROL GU Y61 WAGON
NISSAN PATROL 1999-2016 - PATROL GU Y61 CAB CHASSIS (COIL SPRING FRONT AND LEAF SPRING REAR)
NISSAN PATROL 1999-2016 - PATROL GU Y61 CAB CHASSIS (COIL SPRING FRONT AND REAR)
TOYOTA FJ CRUISER 2009-2018 - FJ CRUISER GSJ15
TOYOTA HILUX SURF 1989-1996 - HILUX SURF LN130, RN130, KVN130, VZN130, YN130
TOYOTA HILUX SURF 1993-2002 - HILUX SURF KDN185, KZN185, RZN185, VZN180, VZN185
TOYOTA LAND CRUISER PRADO 1996-2003 - LAND CRUISER PRADO 95 SERIES
TOYOTA LAND CRUISER PRADO 2003-2009 - LAND CRUISER PRADO 120 SERIES
TOYOTA LAND CRUISER PRADO 2009-ON - LAND CRUISER PRADO 150 SERIES
TOYOTA RAV 4 2005-2012 - RAV 4 ACA31, 33, 36, 38, ALA30, GSA33
UNIVERSAL PRODUCTS SWAY BAR - LINKS AND BUSHINGS SWAY BAR LINK - BALL/BUSHING STYLE
