Nolathane
42697
Front Sway Bar - Mount Bushing Kit
*** CONTACT NOLATHANE ***
42697
Front Sway Bar - Mount Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

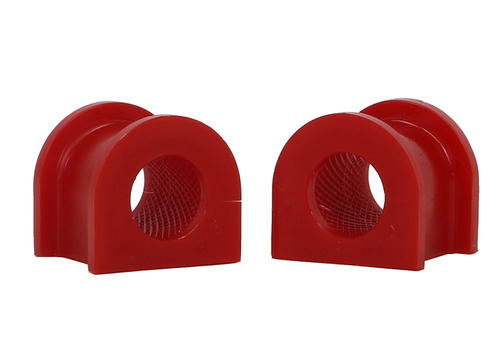

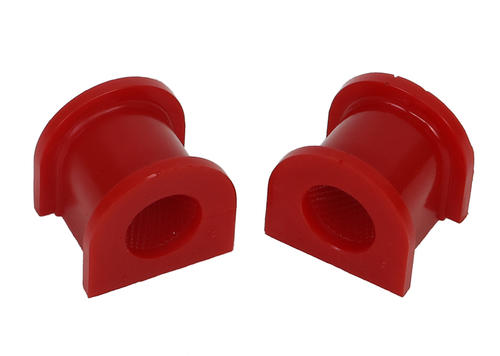

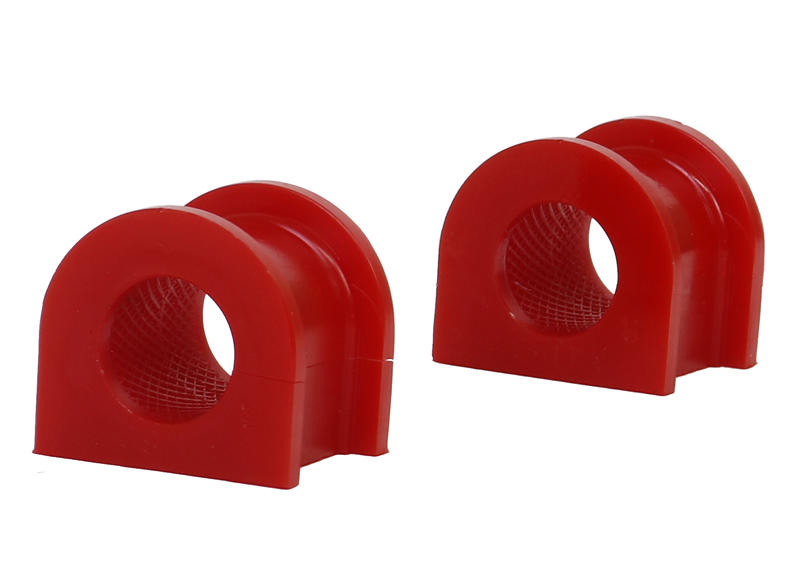

Designed to fit a 20mm sway bar. Nolathane's sway bar mount bushings not only boasts the latest in bushing material technology but feature a knurled ID specifically designed to retain grease. Backed up by a Limited Lifetime Warranty. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance. They are the most positive link between your vehicles body, springs, struts, arms, bars and shocks.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 2 Bushings, Grease
Important Notes
20mm
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
4 2 29.5 mm 20 mm 32.3 mm 3.8 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

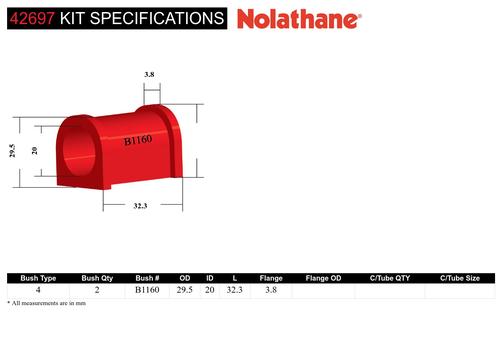

Kit Specifications
Bush Type 4
Bush Qty 2
OD (A) 29.5 mm
ID (B) 20 mm
L (C) 32.3 mm
FL (D) 3.8 mm
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Videos

Sway Bar Servicing Solutions

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

Sway Bar Servicing Solutions

Larko talks Bushing Lubrication

Larko talks Family Movers
42697
Vehicle Applications
42697 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD ESCAPE 2001-2012 - ESCAPE BA, ZA, ZB, ZC, ZD
FORD TELSTAR 1983-1987 - TELSTAR AR, AS
FORD TELSTAR 1987-1992 - TELSTAR AT, AV
MAZDA 626 1983-1987 - 626 GC
MAZDA 626 1987-1991 - 626 GD SEDAN AND HATCHBACK
MAZDA 626 1987-1997 - 626 GV WAGON
MAZDA MX-6 1987-1991 - MX-6 GD
MAZDA RX-7 1979-1985 - RX-7 SERIES I, II, III
MAZDA TRIBUTE 2001-2008 - TRIBUTE YU, CU
