Nolathane 42690 Rear Axle Sway Bar Mount - Bushing Kit 18mm
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
42690
Rear Axle Sway Bar Mount - Bushing Kit 18mm
*** CONTACT NOLATHANE ***
42690
Rear Axle Sway Bar Mount - Bushing Kit 18mm
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:

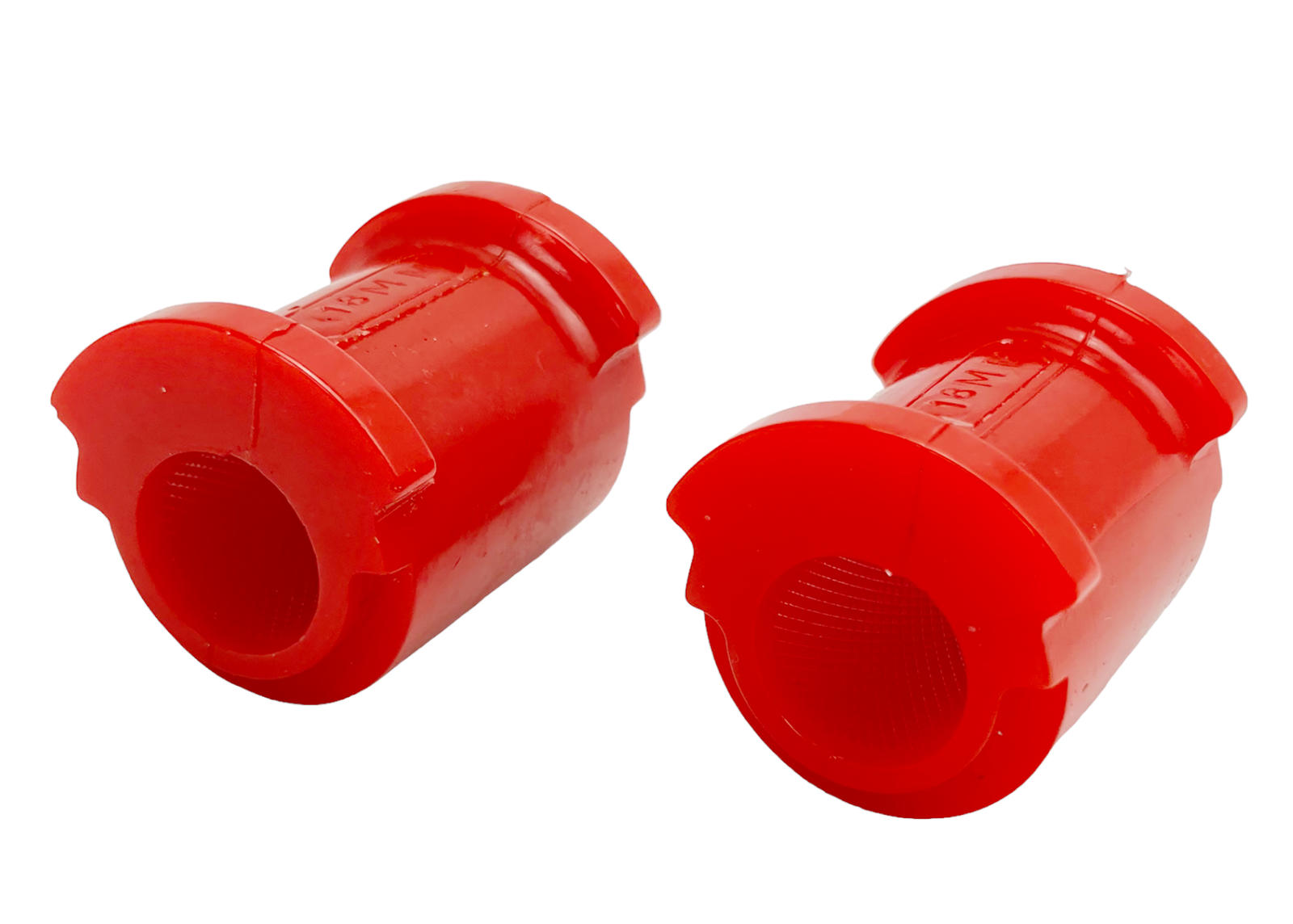

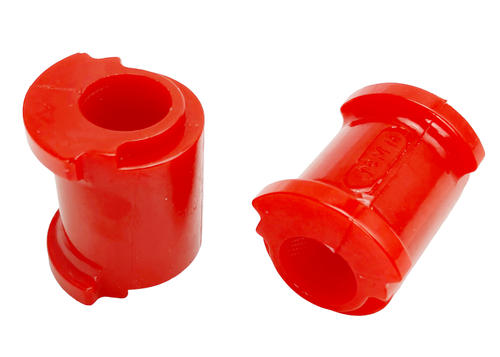

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Bushings
Designed to fit a 18mm sway bar. Nolathane's sway bar mount bushings not only boasts the latest in bushing material technology but feature a knurled ID specifically designed to retain grease. Backed up by a Limited Lifetime Warranty. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance. They are the most positive link between your vehicles body, springs, struts, arms, bars and shocks.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 2 Bushings
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Bushings

Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Bushings
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
This kit is covered by a limited lifetime warranty including parts and labour.

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
This kit is covered by a limited lifetime warranty including parts and labour.

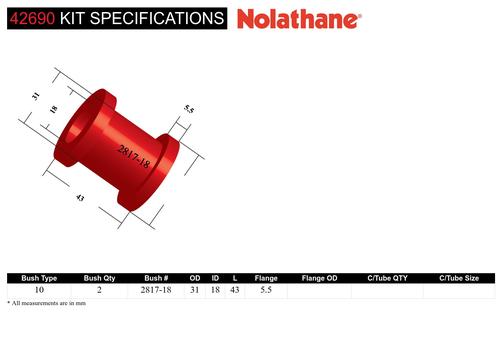

Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
10 2 31 mm 18 mm 43 mm 5.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 10
Bush Qty 2
OD (A) 31 mm
ID (B) 18 mm
L (C) 43 mm
FL (D) 5.5 mm
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Odd A 01 Odd A 04 Even A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 01
Press Plate # (OUT) Odd A
Support Sleeve # 04
Press Plate # Even A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Sway Bar Servicing Solutions

Larko Talks Bushing Lubrication
Videos

How Hard Is Nolathane?

Sway Bar Servicing Solutions

Larko Talks Bushing Lubrication
42690
Vehicle Applications
42690 is suitable for the following vehicles. Select a vehicle for specific fitment details:
LEXUS GS 1997-2000 - GS JZS160, UZS160
LEXUS IS 1999-2005 - IS GXE10, JCE10
TOYOTA ALTEZZA 1999-2005 - ALTEZZA XE10
