42680
Rear Axle Sway Bar Link - Bushing Kit
*** CONTACT NOLATHANE ***
42680
Rear Axle Sway Bar Link - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane bushings are engineered to last and deliver improved driving performance.
Kits Required: 1
Warranty: Limited Lifetime Warranty

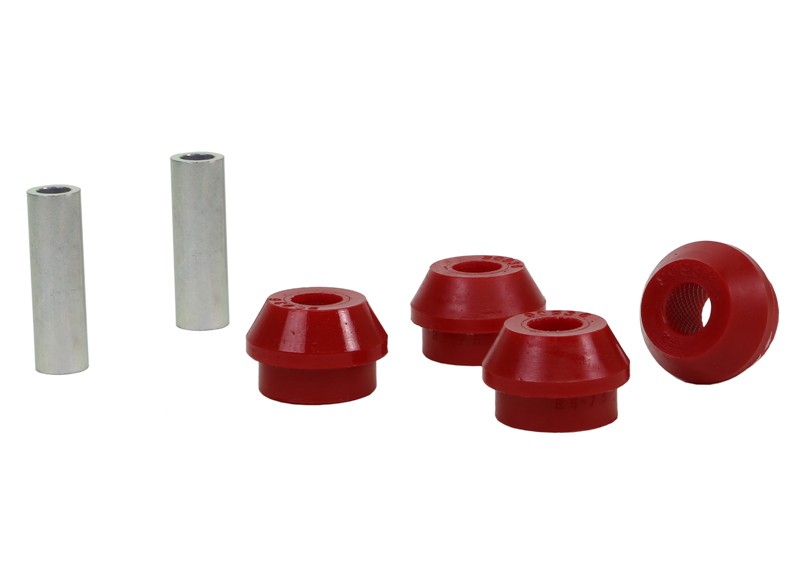

Kit Contents: 4 Bushings, 2 Tubes
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

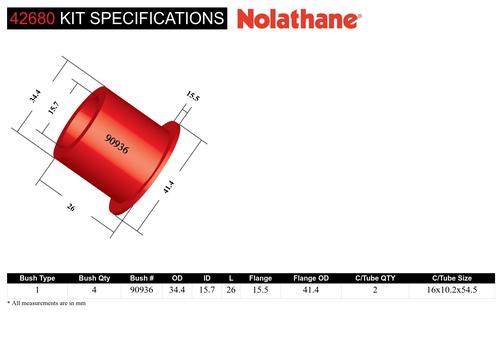

Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 34.4 mm 15.7 mm 26 mm 15.5 mm 41.4 mm 2 16x10.2x54.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 34.4 mm
ID (B) 15.7 mm
L (C) 26 mm
FL (D) 15.5 mm
FLOD (E) 41.4 mm
C/Tube QTY 2
C/Tube Size 16x10.2x54.5 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 02 EVEN A 05 ODD A M10 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 02
Press Plate # (OUT) EVEN A
Support Sleeve # 05
Press Plate # ODD A
Threaded Rod # M10
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

42680
Vehicle Applications
42680 is suitable for the following vehicles. Select a vehicle for specific fitment details:
SUBARU BRZ 2012-2021 - ZC6
SUBARU BRZ 2021-ON - ZD8
SUBARU FORESTER 2008-2013 - SH
SUBARU FORESTER 2012-2018 - SJ
SUBARU IMPREZA 2007-2011 - WRX GE, GH
SUBARU IMPREZA 2007-2011 - GE, GH
SUBARU IMPREZA 2008-2011 - WRX STI GR
SUBARU IMPREZA 2011-2014 - WRX GV, GR
SUBARU IMPREZA 2011-2014 - WRX STI GV, GR
SUBARU IMPREZA 2011-2016 - GJ, GP
SUBARU LEVORG 2014-2020 - VM
SUBARU LIBERTY 2009-2014 - BM, BR
SUBARU LIBERTY 2015-2020 - BN, BS
SUBARU OUTBACK 2009-2015 - BR
SUBARU OUTBACK 2021-ON - BT
SUBARU WRX 2014-2021 - WRX VA
SUBARU WRX 2014-2021 - WRX STI VA
SUBARU WRX 2022-ON - WRX VB, VN
SUBARU XV 2011-2017 - GP
TOYOTA 86 2012-2021 - ZN6
TOYOTA GR 86 2022-ON - ZN8
