Nolathane
42413
Front Sway Bar - Link Bushing Kit
*** CONTACT NOLATHANE ***
42413
Front Sway Bar - Link Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge
Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane bushings are engineered to last and deliver improved driving performance.
Kits Required: 1
Warranty: Limited Lifetime Warranty

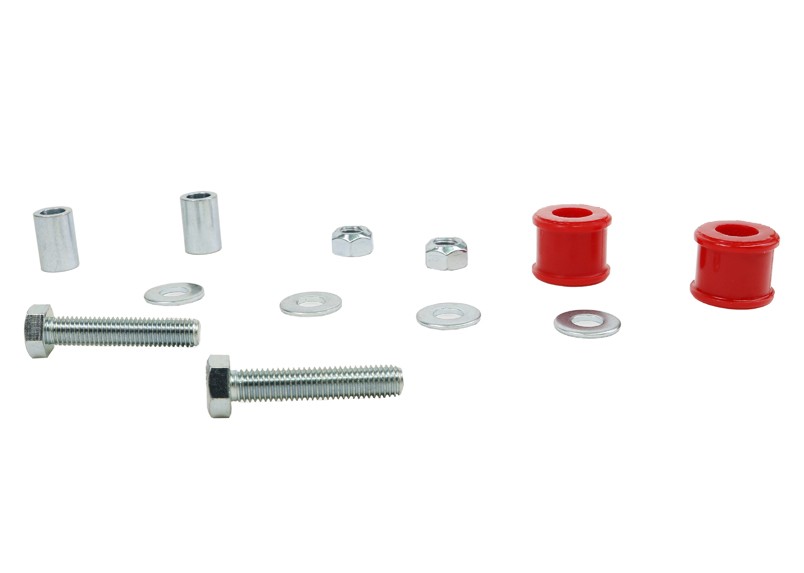

Kit Contents: 2 Bushings, 2 Tubes, 2 Bolts, 4 Washers, 2 Nuts
Important Notes
Contains bushings, bolts, nuts and crush tubes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
10 2 27.3 mm 15.2 mm 23.8 mm 2.9 mm 30.3 mm 2 16x10.2x24 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 10
Bush Qty 2
OD (A) 27.3 mm
ID (B) 15.2 mm
L (C) 23.8 mm
FL (D) 2.9 mm
FLOD (E) 30.3 mm
C/Tube QTY 2
C/Tube Size 16x10.2x24 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A ODD A N/A N/A 03 ODD A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve # (IN) N/A
Press Plate # (IN) ODD A
Press Sleeve # (OUT) N/A
Press Plate # (OUT) N/A
Support Sleeve # 03
Press Plate # ODD A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Fitting Tip - Link Pin Bushings

How hard is Nolathane?

Why Nolathane your 4x4
Videos

Fitting Tip - Link Pin Bushings

How hard is Nolathane?

Why Nolathane your 4x4
42413
Vehicle Applications
42413 is suitable for the following vehicles. Select a vehicle for specific fitment details:
LEXUS LX 1998-2008 - LX 470 UZJ100
TOYOTA DYNA 2001-2005 - DYNA LY230, KDY230
TOYOTA DYNA 2001-2005 - DYNA 250 LY230, KDY230
TOYOTA HIACE 1995-2005 - HIACE SBV RCH12, RCH22, RZH10
TOYOTA HIACE 2005-2019 - HIACE KDH20#, KDH22#, THD20#, TRH22#
TOYOTA HIACE / COMMUTER 2005-2019 - HIACE / COMMUTER KDH20#, KDH22#, THD20#, TRH22#
TOYOTA LAND CRUISER 1998-2007 - LAND CRUISER 100 SERIES IFS
TOYOTA LAND CRUISER 1999-2007 - LAND CRUISER 78 SERIES
TOYOTA LAND CRUISER 1999-2007 - LAND CRUISER 79 SERIES
TOYOTA LAND CRUISER 2007-ON - LAND CRUISER 76, 78 SERIES
TOYOTA LAND CRUISER 2007-ON - LAND CRUISER 79 SERIES
