Kits Required: | 1 |
Warranty: | Limited Lifetime Warranty |

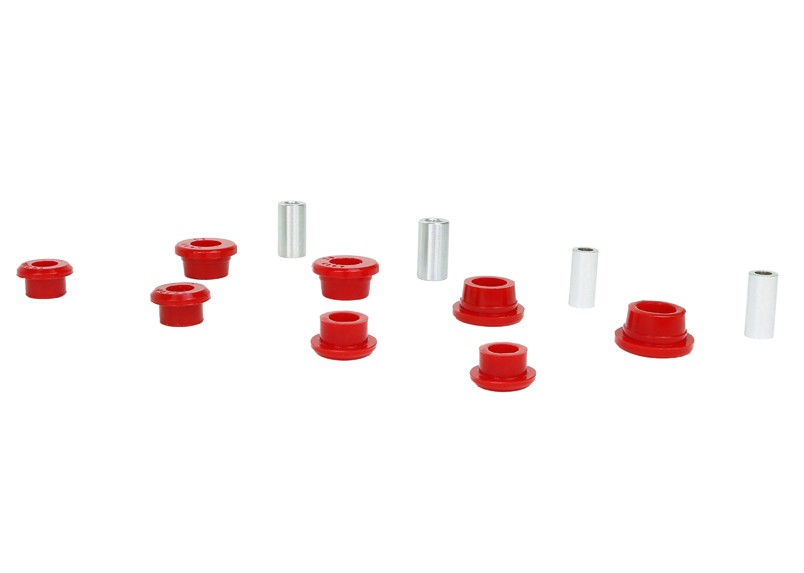

Kit Contents: | 8 Bushings, 4 Tubes, Grease |
Important Notes
US $ NAN

Kits Required: | 1 |
Warranty: | Limited Lifetime Warranty |
Kit Contents: | 8 Bushings, 4 Tubes, Grease |
Bush Type |
Bush Qty |
OD (A) |
ID (B) |
L (C) |
FL (D) |
FLOD (E) |
C/Tube QTY |
C/Tube Size |
Similar Bushing Size |
3 | 4 | AI=26.4 AII=25 mm | 17.9 mm | 17.3 mm | 9.2 mm | 36.2 mm | 2 / 2 | 14x8.2x30 / 18x10.2x34 mm | click here |
1 | 4 | 23 mm | 14 mm | 15.7 mm | 4.8 mm | 28.8 mm | 2 / 2 | 14x8.2x30 / 18x10.2x34 mm | click here |
Bush Type | 3 | 1 |
Bush Qty | 4 | 4 |
OD (A) | AI=26.4 AII=25 mm | 23 mm |
ID (B) | 17.9 mm | 14 mm |
L (C) | 17.3 mm | 15.7 mm |
FL (D) | 9.2 mm | 4.8 mm |
FLOD (E) | 36.2 mm | 28.8 mm |
C/Tube QTY | 2 / 2 | 2 / 2 |
C/Tube Size | 14x8.2x30 / 18x10.2x34 mm | 14x8.2x30 / 18x10.2x34 mm |
Similar Bushing Size | click here | click here |
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
![]() |
1 hrs | DIY - Do it yourself | |
Press Sleeve # (IN) |
Press Plate # (IN) |
Press Sleeve # (OUT) |
Press Plate # (OUT) |
Support Sleeve # |
Press Plate # |
Threaded Rod # |
Press In/Out Kit |
N/A | N/A | N/A | N/A | 03 | ODD A | M10 | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
![]() |
1 hrs | DIY - Do it yourself | |
Press Sleeve # (IN) | N/A |
Press Plate # (IN) | N/A |
Press Sleeve # (OUT) | N/A |
Press Plate # (OUT) | N/A |
Support Sleeve # | 03 |
Press Plate # | ODD A |
Threaded Rod # | M10 |
Press In/Out Kit | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
