42170
Sway Bar Link - Assembly
*** CONTACT NOLATHANE ***
42170
Sway Bar Link - Assembly
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge


Knock, knock, knock! That's the sound you hear when your sway bar links are not doing their job. Links are a common service item due to either worn or over compliant bushings/ joints and possibly bent or snapped centre bodies. Upgrade with Nolathane links boasting heavy duty joints and uprated centre body that outlast and outperform the original equipment.
Kits Required: 1
Warranty: 3 Year / 60,000Kms

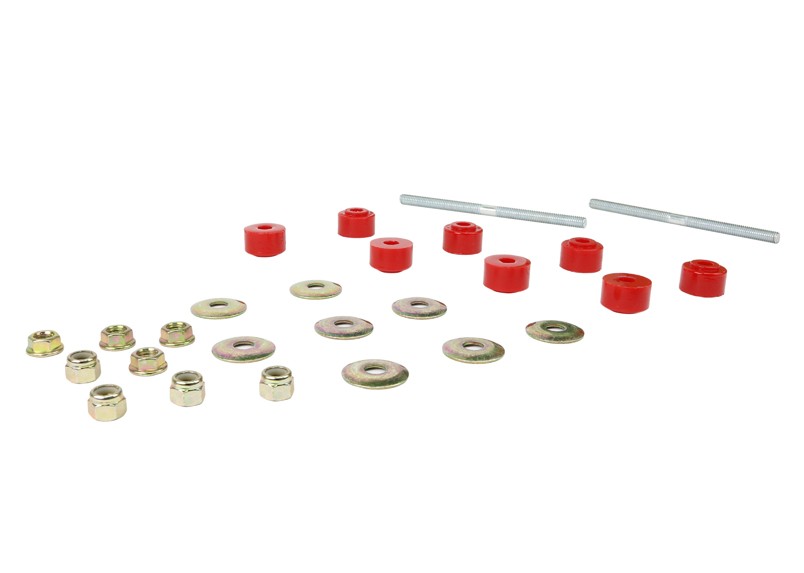

Kit Contents: 2 Links, 8 Bushings, 8 Washers, 8 Nuts
Install Guide: Download Here
Important Notes
  • 165mm
  • Links, Nuts, Washers and Bushings
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
Manufactured from high quality steel and utilise the latest in material formulation technology link bushings ensuring maximum strength and durability.
Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
Manufactured from high quality steel and utilise the latest in material formulation technology link bushings ensuring maximum strength and durability.
Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Link Type Adjustable On Car Adjustable Adjustment Bolt Diameter Notes Overall Length Configuration
Bushing Yes Yes 30mm 10mm Contains Hardware 130mm-160mm Vertical
Kit Specifications
Link Type Bushing
Adjustable Yes
On Car Adjustable Yes
Adjustment 30mm
Bolt Diameter 10mm
Notes Contains Hardware
Overall Length 130mm-160mm
Configuration Vertical
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 1 hrs DIY - Do it yourself
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 1 hrs DIY - Do it yourself
42170
Vehicle Applications
42170 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD FAIRLANE 1967-1969 - ZA, ZB
FORD FAIRLANE 1969-1972 - ZC, ZD
FORD FAIRLANE 1972-1976 - ZF, ZG
FORD FAIRLANE 1976-1979 - ZH
FORD FAIRLANE 1979-1982 - ZJ
FORD FAIRLANE 1982-1988 - ZK, ZL
FORD FAIRLANE 1995-1996 - NF
FORD FAIRLANE 1996-1999 - NL
FORD FAIRLANE 1999-2002 - AU
FORD FAIRMONT 1965-1966 - XP
FORD FAIRMONT 1966-1969 - XR, XT
FORD FAIRMONT 1969-1972 - XW, XY
FORD FAIRMONT 1972-1976 - XA, XB
FORD FAIRMONT 1976-1979 - XC
FORD FAIRMONT 1979-1982 - XD
FORD FAIRMONT 1982-1988 - XE, XF SEDAN
FORD FAIRMONT 1982-1993 - XE, XF WAGON, UTE AND VAN
FORD FAIRMONT 1988-1994 - EA, EB, ED SEDAN
FORD FAIRMONT 1994-1996 - EF WAGON
FORD FAIRMONT 1994-1996 - EF SEDAN
FORD FAIRMONT 1996-1998 - EL WAGON
FORD FAIRMONT 1996-1998 - EL SEDAN
FORD FAIRMONT 1998-2002 - AU SEDAN SOLID REAR AXLE
FORD FAIRMONT 1998-2002 - AU WAGON, UTE AND CAB CHASSIS
FORD FAIRMONT 1998-2002 - AU SEDAN IRS
FORD FALCON 1960-1966 - XK-XP
FORD FALCON 1966-1969 - XR, XT
FORD FALCON 1969-1972 - XW, XY
FORD FALCON 1972-1976 - XA, XB
FORD FALCON 1976-1979 - XC
FORD FALCON 1979-1982 - XD
FORD FALCON 1982-1988 - XE, XF SEDAN
FORD FALCON 1982-1993 - XE, XF WAGON, UTE AND VAN
FORD FALCON 1988-1994 - EA, EB, ED SEDAN
FORD FALCON 1988-1994 - EA, EB, ED WAGON
FORD FALCON 1993-1996 - XG UTE AND VAN (SHOCK FRONT END)
FORD FALCON 1994-1996 - EF WAGON
FORD FALCON 1994-1996 - EF SEDAN
FORD FALCON 1996-1998 - EL SEDAN
FORD FALCON 1996-1999 - XH UTE AND VAN (STRUT FRONT END)
< MORE >
