Nolathane
42102
Front Axle Sway Bar Link - Bushing Kit
*** CONTACT NOLATHANE ***
42102
Front Axle Sway Bar Link - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane bushings are engineered to last and deliver improved driving performance.
Kits Required: 2
Warranty: Limited Lifetime Warranty

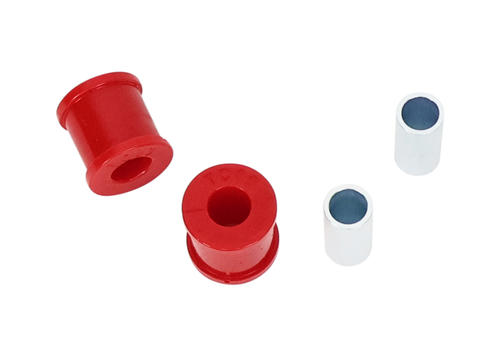

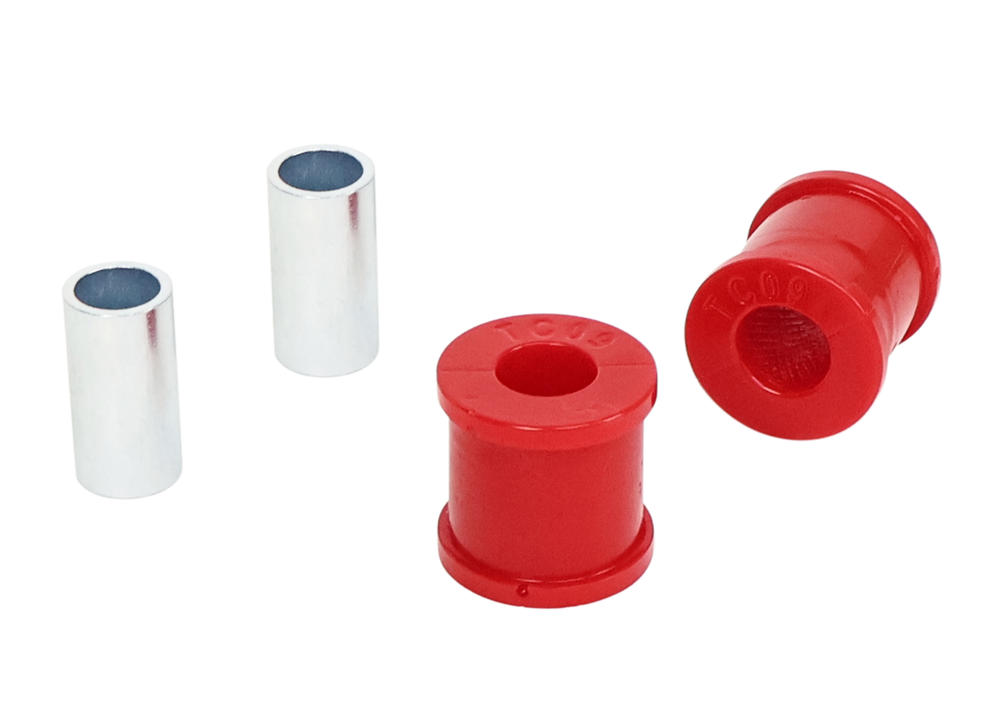

Kit Contents: 2 Bushings, 2 Tubes
Important Notes
  • 1 Piece bushing design
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

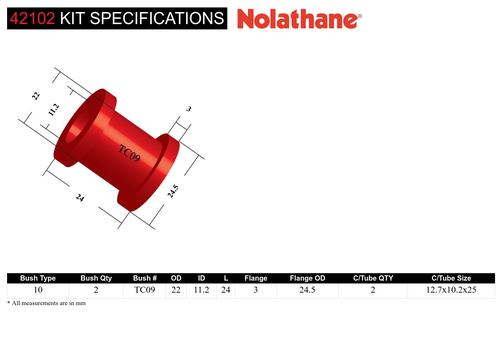

Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
10 2 22 mm 11.2 mm 24 mm 3 mm 24.5 mm 2 12.7x10.2x25 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 10
Bush Qty 2
OD (A) 22 mm
ID (B) 11.2 mm
L (C) 24 mm
FL (D) 3 mm
FLOD (E) 24.5 mm
C/Tube QTY 2
C/Tube Size 12.7x10.2x25 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A EVEN A N/A N/A 03 ODD A M10 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) N/A
Press Plate # (OUT) N/A
Support Sleeve # 03
Press Plate # ODD A
Threaded Rod # M10
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

42102
Vehicle Applications
42102 is suitable for the following vehicles. Select a vehicle for specific fitment details:
DAIHATSU ROCKY 1984-1993 - F7, F8 (LEAF SPRING)
DAIHATSU ROCKY 1993-1998 - F7, F8 (LEAF SPRING)
LAND ROVER DEFENDER 1990-1998 - L316 TDI AND V8
LAND ROVER DISCOVERY 1989-1998 - LJ SERIES 1
LEXUS LX 1998-2008 - 470 UZJ100
SUBARU LIBERTY 1989-1994 - BC, BJ, BF
TOYOTA CAMRY 1982-1988 - V10, V11
TOYOTA CELICA 1981-1983 - RA60 SOLID AXLE
TOYOTA CELICA 1981-1985 - MA61
TOYOTA CELICA 1982-1985 - RA61, RA63, RA65 IRS
TOYOTA COASTER 1982-1993 - B20, 21, B30
TOYOTA COROLLA 1979-1985 - E70 SEDAN AND COUPE
TOYOTA COROLLA 1983-1987 - E86
TOYOTA COROLLA 1983-1989 - E80
TOYOTA COROLLA 1987-1995 - E90 WAGON
TOYOTA CORONA 1979-1983 - XT130 SEDAN AND HATCH
TOYOTA CORONA 1983-1987 - ST140
TOYOTA CORONA 1984-1987 - RT140
TOYOTA CRESSIDA 1980-1985 - X6
TOYOTA LAND CRUISER 1969-1984 - 40 SERIES
TOYOTA LAND CRUISER 1967-1980 - 50 SERIES
TOYOTA LAND CRUISER 1981-1991 - 60 SERIES HJ
TOYOTA LAND CRUISER 1980-1990 - 60 SERIES FJ
TOYOTA LAND CRUISER 1990-1996 - 70 SERIES KZJ, PZJ
TOYOTA LAND CRUISER 1990-1997 - 80 SERIES
TOYOTA LAND CRUISER 1998-2007 - 100 SERIES
TOYOTA LAND CRUISER 1998-2007 - 105 SERIES
TOYOTA LAND CRUISER 1999-2007 - 74, 76, 78 SERIES
TOYOTA LAND CRUISER 2007-ON - 76, 78 SERIES
TOYOTA LAND CRUISER 2007-ON - 79 SERIES
TOYOTA LITEACE 1979-1986 - M20
TOYOTA SPACIA 1992-1998 - R20
TOYOTA SPACIA 1998-2002 - R40
TOYOTA TARAGO 1982-1990 - R20, R30
TOYOTA TOWN ACE SBV 1992-2001 - R30
TOYOTA TOWN ACE SBV 1997-2007 - R40, R50
