Nolathane
421004

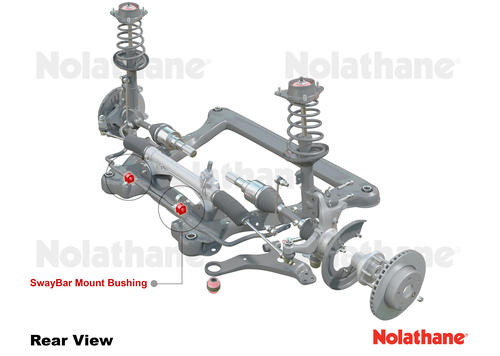

Front Sway Bar Mount - Bushing Kit
*** CONTACT NOLATHANE ***
421004
Front Sway Bar Mount - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Designed to fit a 25.4mm sway bar. Nolathane's sway bar mount bushings not only boasts the latest in bushing material technology but feature a knurled ID specifically designed to retain grease. Backed up by a Limited Lifetime Warranty. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance. They are the most positive link between your vehicles body, springs, struts, arms, bars and shocks.
Kits Required: 1
Warranty: Limited Lifetime Warranty

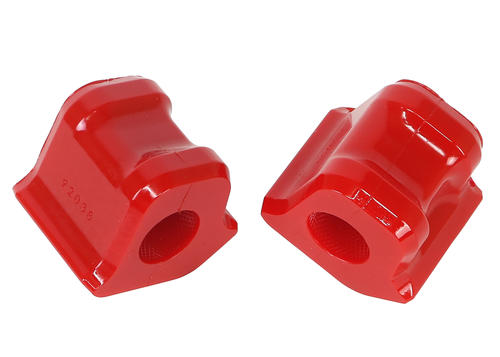

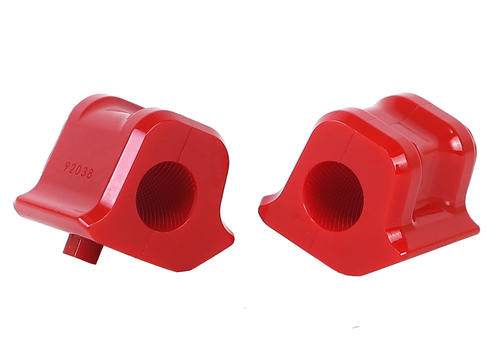

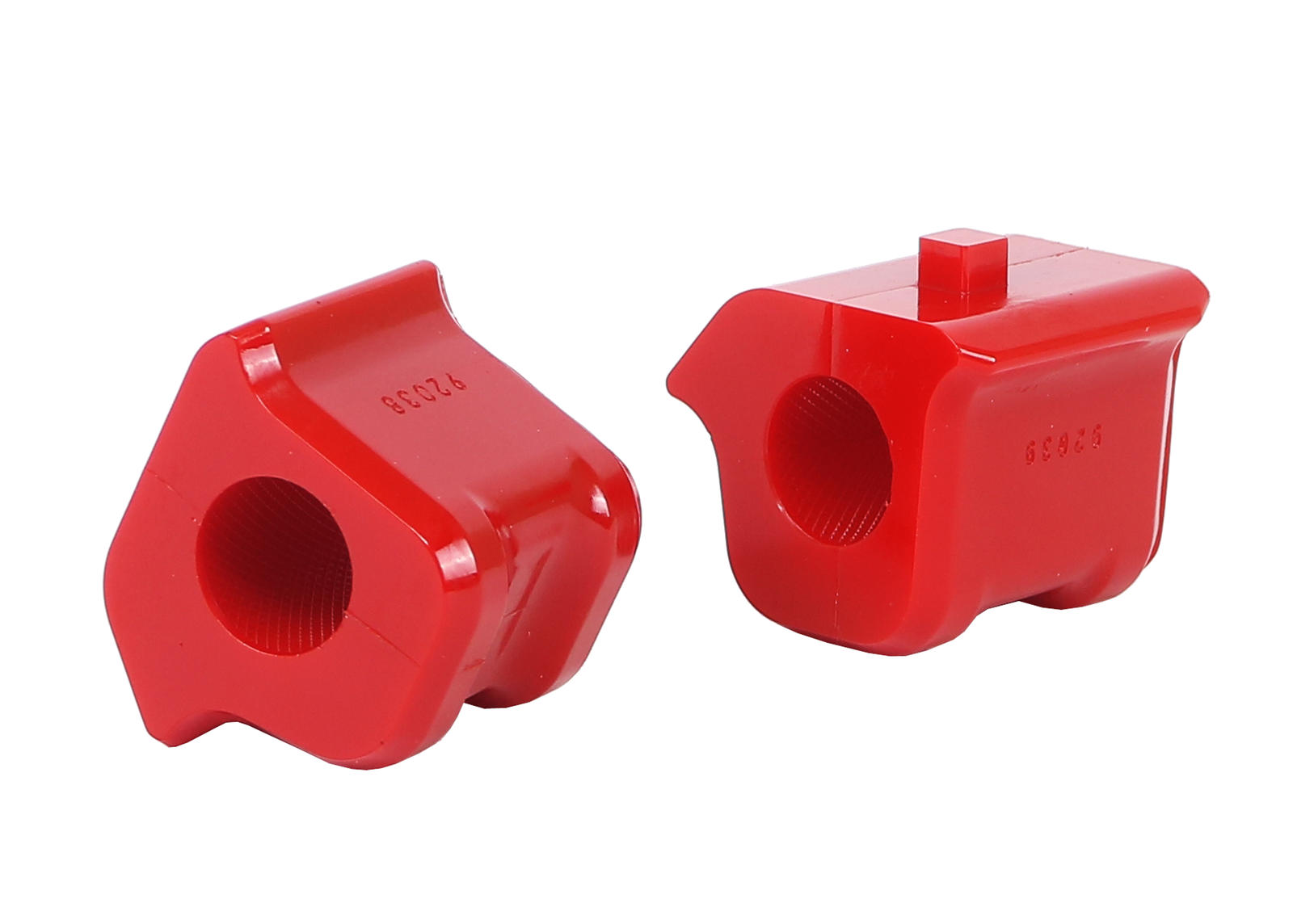

Kit Contents: 2 Bushings, Install Guide, Grease
Install Guide: Download Here
Important Notes
25.4mm
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

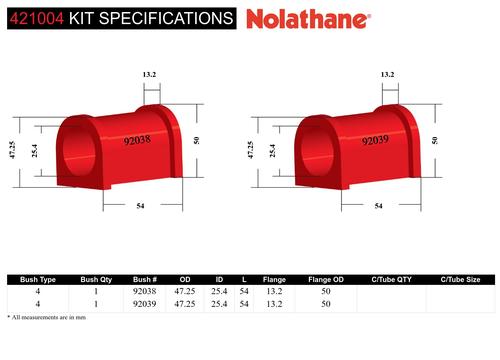

Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
4 1 47.25 mm 25.4 mm 54 mm 13.2 mm 50 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 4
Bush Qty 1
OD (A) 47.25 mm
ID (B) 25.4 mm
L (C) 54 mm
FL (D) 13.2 mm
FLOD (E) 50 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 1 hrs DIY - Do it yourself
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 1 hrs DIY - Do it yourself
Videos

Sway Bar Servicing Solutions

How Hard Is Nolathane?

Nolathane Technical Ambassador Mark Larkham Talks Small Cars
Videos

Sway Bar Servicing Solutions

How Hard Is Nolathane?

Nolathane Technical Ambassador Mark Larkham Talks Small Cars
421004
Vehicle Applications
421004 is suitable for the following vehicles. Select a vehicle for specific fitment details:
LEXUS CT 2011-ON - CT 200H ZWA10R
TOYOTA COROLLA 2007-2012 - COROLLA ZRE142, 143, 152, 152, 153, 156
TOYOTA COROLLA 2012-2018 - COROLLA ZRE161, 162, 165, 172, 182, ZWE186
TOYOTA PRIUS 2008-2015 - PRIUS ZVW30, ZVW35
TOYOTA RAV 4 2005-2012 - RAV 4 ACA31, 33, 36, 38, ALA30, GSA33
TOYOTA RAV 4 2013-2018 - RAV 4 ZSA42, ASA44, ALA49
