42038

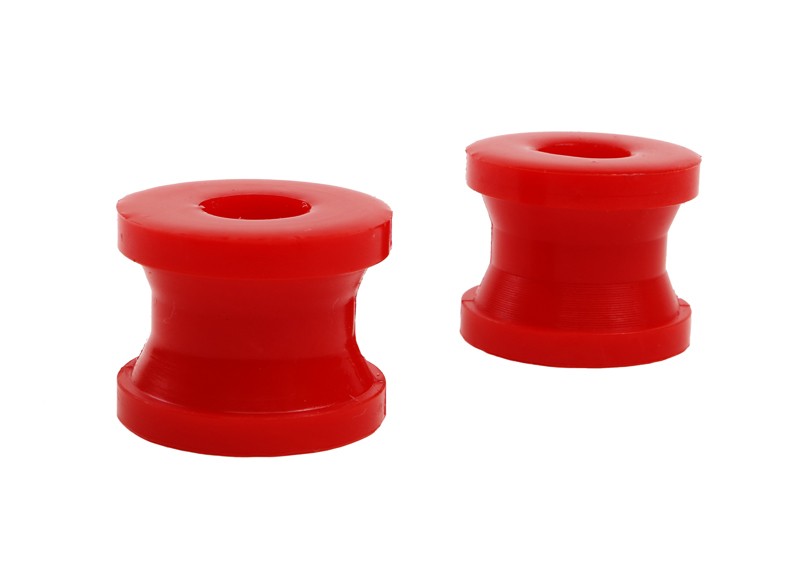

Rear Sway Bar - Link Upper Bushing Kit
*** CONTACT NOLATHANE ***
42038
Rear Sway Bar - Link Upper Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane bushings are engineered to last and deliver improved driving performance.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 2 Bushings, Grease
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
10 2 AI=31 AII=26 mm 14.5 mm 27.8 mm 5.2 mm 35.2 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 10
Bush Qty 2
OD (A) AI=31 AII=26 mm
ID (B) 14.5 mm
L (C) 27.8 mm
FL (D) 5.2 mm
FLOD (E) 35.2 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A ODD A N/A N/A 06 EVEN A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve # (IN) N/A
Press Plate # (IN) ODD A
Press Sleeve # (OUT) N/A
Press Plate # (OUT) N/A
Support Sleeve # 06
Press Plate # EVEN A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Fitting Tip - Link Pin Bushings

How hard is Nolathane?

Larko talks Family Movers
Videos

Fitting Tip - Link Pin Bushings

How hard is Nolathane?

Larko talks Family Movers
42038
Vehicle Applications
42038 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HOLDEN CALAIS 1991-1993 - CALAIS VP
HOLDEN CALAIS 1993-1997 - CALAIS VR, VS
HOLDEN CALIBRA 1991-1997 - CALIBRA YE
HOLDEN CAPRICE 1990-1994 - CAPRICE VQ
HOLDEN CAPRICE 1994-1999 - CAPRICE VR, VS
HOLDEN COMMODORE 1988-1993 - COMMODORE VN, VP SEDAN
HOLDEN COMMODORE 1993-1997 - COMMODORE VR, VS SEDAN
HOLDEN STATESMAN 1990-1994 - STATESMAN VQ
HOLDEN STATESMAN 1994-1999 - STATESMAN VR, VS
HSV CLUBSPORT 1993-1994 - CLUBSPORT VP
HSV CLUBSPORT 1993-1997 - CLUBSPORT VR, VS SEDAN
HSV GRANGE 1996-1998 - GRANGE VS
HSV GTS 1994-1997 - GTS VR, VS
HSV MANTA 1995-1997 - MANTA VS SEDAN
HSV SENATOR 1992-1993 - SENATOR VP
HSV SENATOR 1993-1997 - SENATOR VR, VS
TOYOTA LEXCEN 1989-1993 - LEXCEN T1 SEDAN IRS
TOYOTA LEXCEN 1993-1997 - LEXCEN T2 SEDAN IRS
