Nolathane 41143 Front Axle Steering Rack and Pinion

41143

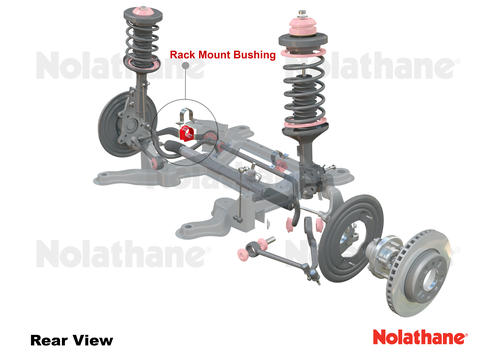

Front Axle Steering Rack and Pinion - Mount Bushing Kit

*** CONTACT NOLATHANE ***

41143

Front Axle Steering Rack and Pinion - Mount Bushing Kit

*** CONTACT NOLATHANE ***

Vehicle Kit Contains:
Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:

Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.

Kits Required:	1
Warranty:	lifetime warranty

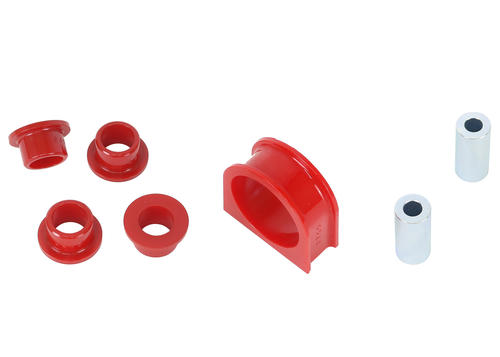

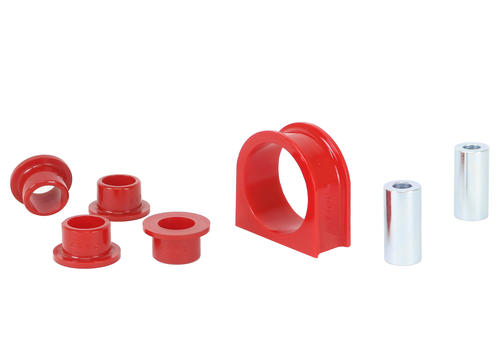

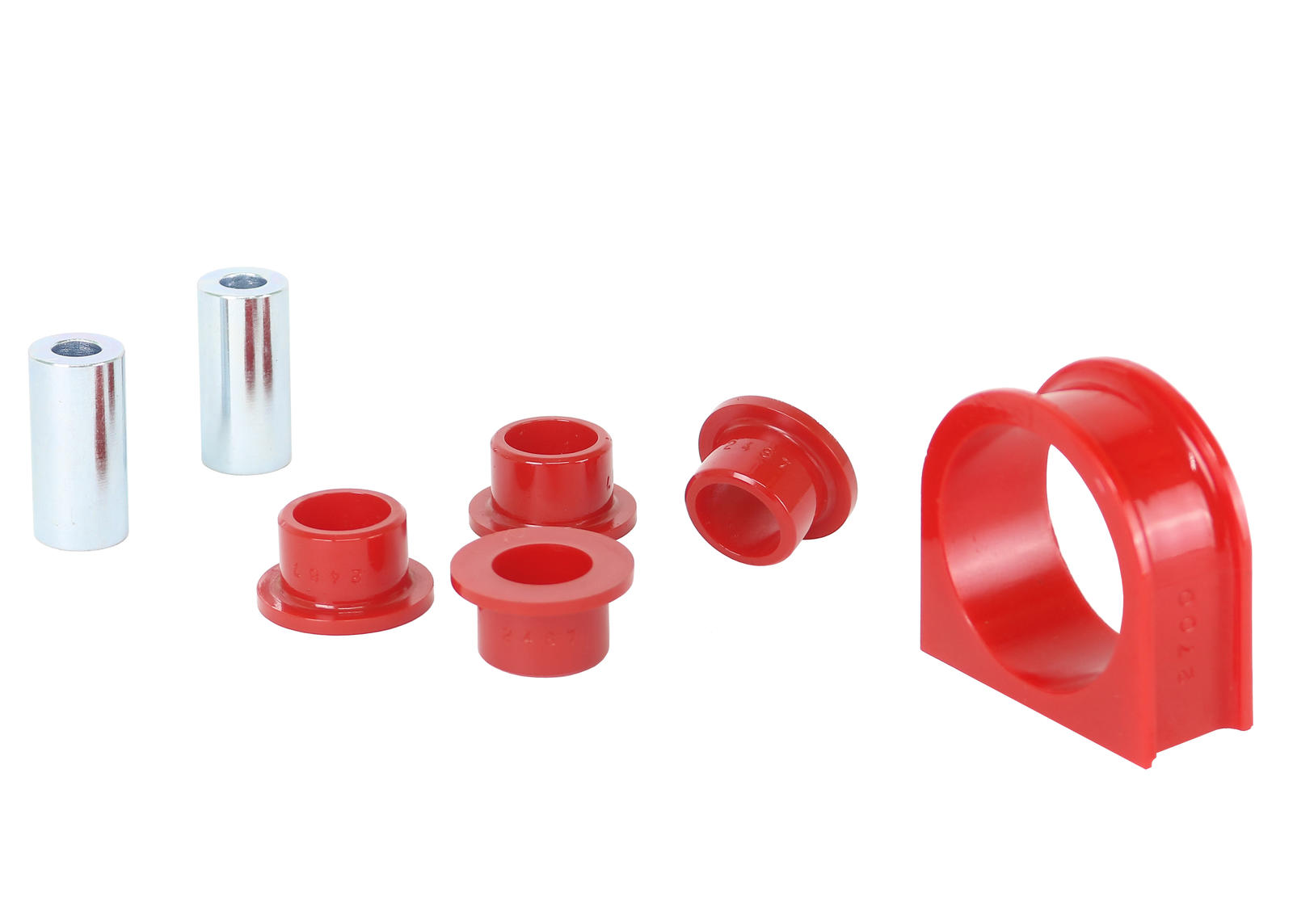

Kit Contents:	5 Bushings, 2 Tubes

Important Notes

US $ NAN

Calculate shipping?

Click here for rates & other info

Contents

Kit Contains;

Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:

Contents

Kit Contains;

Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:

Features

✓

The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.

✓

Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.

✓

Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.

✓

This kit is covered by a limited lifetime warranty including parts and labour.

Features

✓

The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.

✓

Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.

✓

This kit is covered by a limited lifetime warranty including parts and labour.

Kit Specifications

Bush Type	Bush Qty	OD (A)	ID (B)	L (C)	FL (D)	FLOD (E)	C/Tube QTY	C/Tube Size	Similar Bushing Size
1	5	26.3 mm	19 mm	19.5 mm	3.4 mm	36.2 mm	2	19x10.2x42 mm	click here
10	5	63.1 mm	50.5 mm	26.6 mm	3.1 mm	66.8 mm	2	19x10.2x42 mm	click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Kit Specifications

Bush Type	1	10

Bush Qty	5	5

OD (A)	26.3 mm	63.1 mm

ID (B)	19 mm	50.5 mm

L (C)	19.5 mm	26.6 mm

FL (D)	3.4 mm	3.1 mm

FLOD (E)	36.2 mm	66.8 mm

C/Tube QTY	2	2

C/Tube Size	19x10.2x42 mm	19x10.2x42 mm

Similar Bushing Size	click here	click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation

Install Guide	Fitment Time	Degree of Difficulty	Recommend Wheel Alignment
	2.5 hrs	DIY - With specialist tools	Yes

Press Sleeve # (IN)	Press Plate # (IN)	Press Sleeve # (OUT)	Press Plate # (OUT)	Support Sleeve #	Press Plate #	Threaded Rod #	Press In/Out Kit
Not Applicable	Not Applicable	Not Applicable	Not Applicable	03	Odd A	Not Applicable	NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation

Install Guide	Fitment Time	Degree of Difficulty	Recommend Wheel Alignment
	2.5 hrs	DIY - With specialist tools	Yes

Press Sleeve # (IN)	Not Applicable
Press Plate # (IN)	Not Applicable
Press Sleeve # (OUT)	Not Applicable
Press Plate # (OUT)	Not Applicable
Support Sleeve #	03
Press Plate #	Odd A
Threaded Rod #	Not Applicable
Press In/Out Kit	NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
