Nolathane
41124

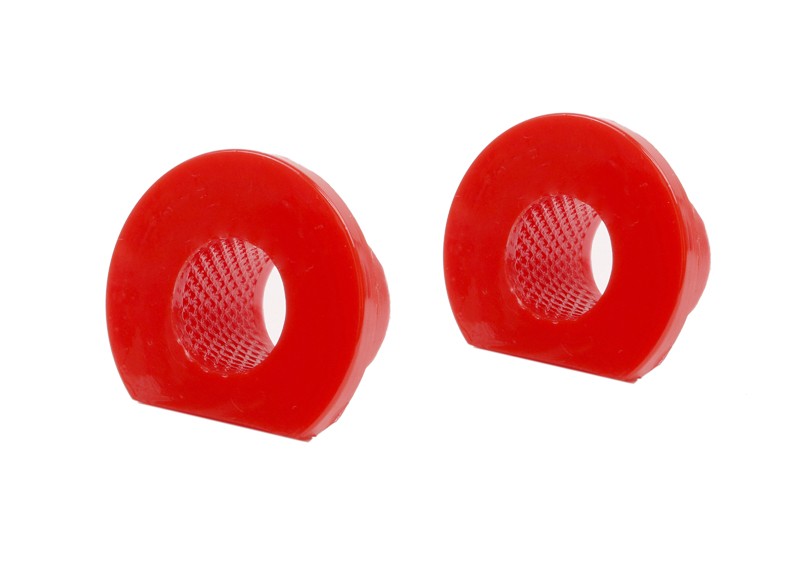

Front Steering - Rack and Pinion Mount Bushing Kit
*** CONTACT NOLATHANE ***
41124
Front Steering - Rack and Pinion Mount Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 2 Bushings, Install Guide, Grease
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 2 23.7 mm 17.7 mm 23.3 mm 4 mm 39.8 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 2
OD (A) 23.7 mm
ID (B) 17.7 mm
L (C) 23.3 mm
FL (D) 4 mm
FLOD (E) 39.8 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A N/A N/A 03 ODD A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) N/A
Press Plate # (OUT) N/A
Support Sleeve # 03
Press Plate # ODD A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Mark Larkham talks Nolathane Steering Rack Bushings

How hard is Nolathane?

Larko talks Family Movers
Videos

Mark Larkham talks Nolathane Steering Rack Bushings

How hard is Nolathane?

Larko talks Family Movers
41124
Vehicle Applications
41124 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD FAIRLANE 2003-2007 - FAIRLANE BA, BF
FORD FAIRMONT 2002-2008 - FAIRMONT BA, BF
FORD FALCON 2002-2008 - FALCON BA, BF WAGON, UTE AND CAB CHASSIS
FORD FALCON 2002-2008 - FALCON BA, BF SEDAN
FORD LTD 2003-2007 - LTD BA, BF
FPV COBRA 2005-2007 - COBRA BF UTE
FPV F6 SERIES 2004-2007 - F6 TORNADO BA, BF
FPV F6 SERIES 2004-2006 - F6 TYPHOON BA
FPV FORCE 6 2005-2007 - FORCE 6 BF
FPV FORCE 8 2005-2007 - FORCE 8 BF
FPV GT SERIES 2004-2007 - GT / GT-E / GT-P / COBRA BA, BF SEDAN
FPV PURSUIT / SUPER PURSUIT 2004-2008 - PURSUIT / SUPER PURSUIT BA, BF
