Nolathane 41118 Front Axle Steering Rack and Pinion - Mount Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
41118
Front Axle Steering Rack and Pinion - Mount Bushing Kit
*** CONTACT NOLATHANE ***
41118
Front Axle Steering Rack and Pinion - Mount Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:

Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.
Kits Required: 1
Warranty: lifetime warranty

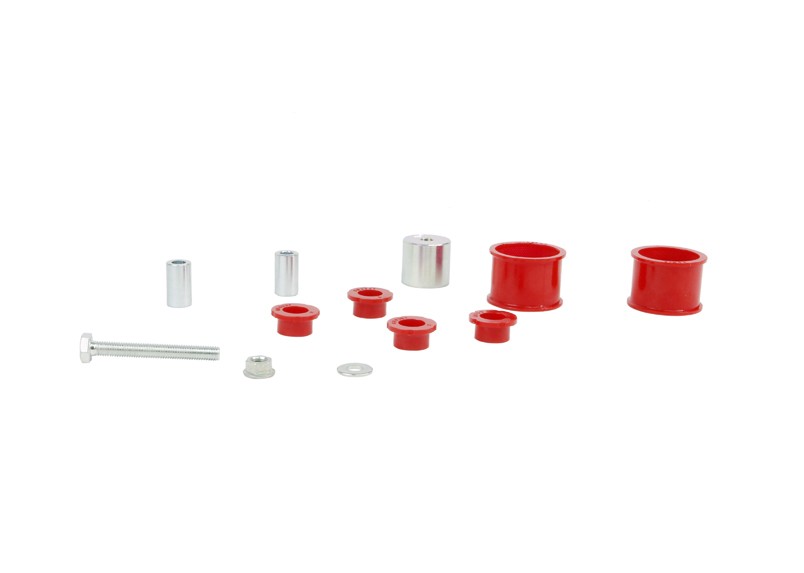

Kit Contents: 6 Bushings, 2 Tubes, Removal Tool
Install Guide: Download Here
Important Notes
  • Includes installation tool
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
10 6 51 mm 45.5 mm 41 mm 4 mm 58.5 mm 2 18x10.2x32 mm click here
1 6 24 mm 17.8 mm 15.8 mm 3.5 mm 32.8 mm 2 18x10.2x32 mm click here
10 6 51 mm 47 mm 41 mm 5 mm 57 mm 2 18x10.2x32 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 10 1 10
Bush Qty 6 6 6
OD (A) 51 mm 24 mm 51 mm
ID (B) 45.5 mm 17.8 mm 47 mm
L (C) 41 mm 15.8 mm 41 mm
FL (D) 4 mm 3.5 mm 5 mm
FLOD (E) 58.5 mm 32.8 mm 57 mm
C/Tube QTY 2 2 2
C/Tube Size 18x10.2x32 mm 18x10.2x32 mm 18x10.2x32 mm
Similar Bushing Size click here click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Odd A 05 Odd A 08 Even A M10 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 05
Press Plate # (OUT) Odd A
Support Sleeve # 08
Press Plate # Even A
Threaded Rod # M10
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Mark Larkham Talks Nolathane Steering Rack Bushings

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Mark Larkham Talks Nolathane Steering Rack Bushings

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
41118
Vehicle Applications
41118 is suitable for the following vehicles. Select a vehicle for specific fitment details:
SUBARU FORESTER 2008-2013 - FORESTER SH
SUBARU IMPREZA 2007-2011 - IMPREZA GE, GH
SUBARU IMPREZA 2007-2011 - IMPREZA WRX GE, GH
SUBARU IMPREZA 2008-2011 - IMPREZA WRX STI GR
SUBARU IMPREZA 2011-2014 - IMPREZA WRX GV, GR
SUBARU IMPREZA 2011-2014 - IMPREZA WRX STI GV, GR
SUBARU LIBERTY 2003-2009 - LIBERTY BL, BP
SUBARU OUTBACK 2003-2009 - OUTBACK BP
SUBARU WRX 2014-2021 - WRX STI VA
SUBARU XV 2011-2017 - XV GP
