Nolathane
41116

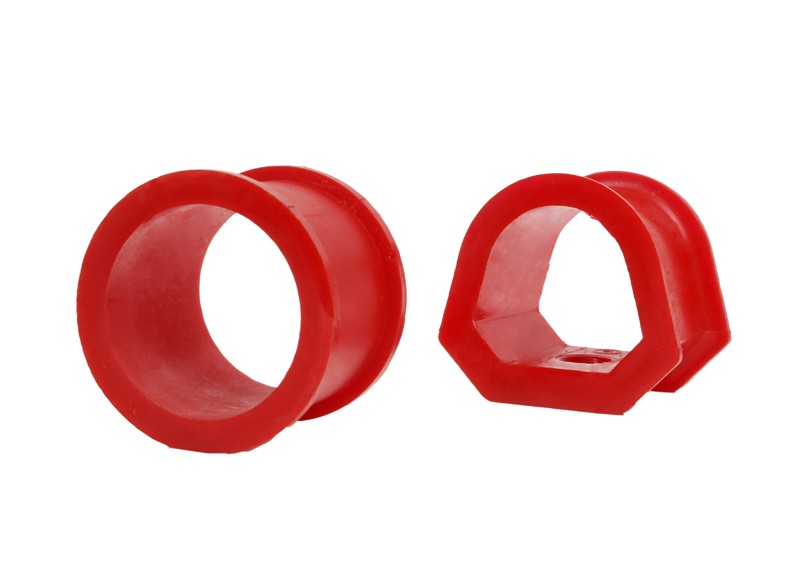

Front Axle Steering Rack and Pinion - Mount Bushing Kit
*** CONTACT NOLATHANE ***
41116
Front Axle Steering Rack and Pinion - Mount Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 2 Bushings
Important Notes
  • Suits power steering models
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
4 2 50 mm 47 mm 44 mm 4 mm 61.5 mm click here
10 2 55.8 mm 47.8 mm 46.3 mm 4 mm 63 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 4 10
Bush Qty 2 2
OD (A) 50 mm 55.8 mm
ID (B) 47 mm 47.8 mm
L (C) 44 mm 46.3 mm
FL (D) 4 mm 4 mm
FLOD (E) 61.5 mm 63 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Even A 06 Even A 09 Odd A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Even A
Press Sleeve # (OUT) 06
Press Plate # (OUT) Even A
Support Sleeve # 09
Press Plate # Odd A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

41116
Vehicle Applications
41116 is suitable for the following vehicles. Select a vehicle for specific fitment details:
MITSUBISHI LANCER 1992-1996 - LANCER CC WAGON AND HATCH
MITSUBISHI LANCER 1992-1996 - LANCER CC SEDAN AND COUPE
MITSUBISHI LANCER 1995-2004 - LANCER CE SEDAN, COUPE AND HATCH
PROTON IMPIAN - WAJA 2001-2005 - IMPIAN-WAJA CF
PROTON JUMBUCK 2002-2008 - JUMBUCK C97
PROTON M21 1995-2000 - M21 C99
PROTON PERSONA 1994-2008 - PERSONA C9_S, C9_M
PROTON SATRIA 1997-2006 - SATRIA C9_M
PROTON WIRA 1995-2007 - WIRA C97, C98
