41115
Front Steering - Rack and Pinion Mount Bushing Kit
*** CONTACT NOLATHANE ***
41115
Front Steering - Rack and Pinion Mount Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Kits Required: 1
Warranty: Limited Lifetime Warranty

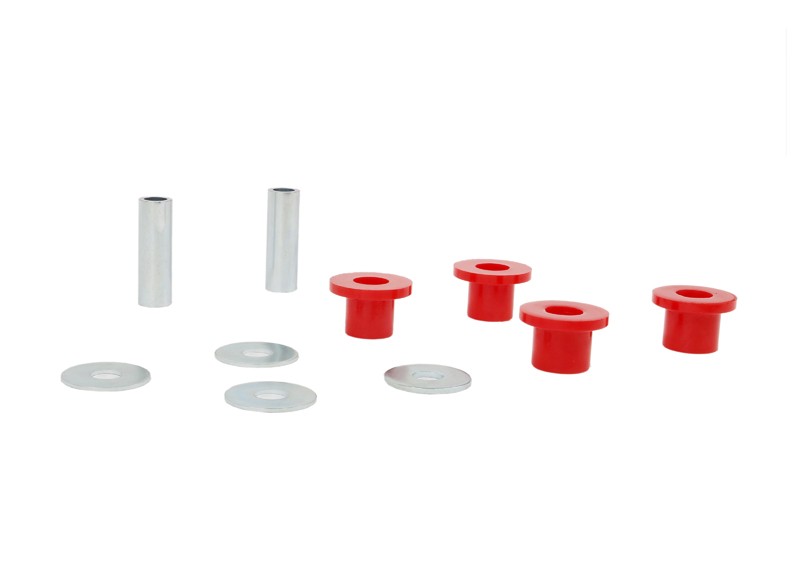

Kit Contents: 4 Bushings, 2 Tubes, 4 Washers, Install Guide, Grease
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 2 25.5 mm 18.9 mm 28.7 mm 5.5 mm 43.7 mm 2 19x13.2x60 mm click here
1 2 28.8 mm 18.9 mm 28.4 mm 5.5 mm 43.7 mm 2 19x13.2x60 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 2 2
OD (A) 25.5 mm 28.8 mm
ID (B) 18.9 mm 18.9 mm
L (C) 28.7 mm 28.4 mm
FL (D) 5.5 mm 5.5 mm
FLOD (E) 43.7 mm 43.7 mm
C/Tube QTY 2 2
C/Tube Size 19x13.2x60 mm 19x13.2x60 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A N/A N/A 03 ODD A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) N/A
Press Plate # (OUT) N/A
Support Sleeve # 03
Press Plate # ODD A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Mark Larkham talks Nolathane Steering Rack Bushings

How hard is Nolathane?

Why Nolathane your 4x4
Videos

Mark Larkham talks Nolathane Steering Rack Bushings

How hard is Nolathane?

Why Nolathane your 4x4
41115
Vehicle Applications
41115 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FOTON TUNLAND 2012-ON - TUNLAND P201 4WD
FOTON TUNLAND 2012-ON - TUNLAND P201 2WD
TOYOTA FORTUNER 2015-ON - FORTUNER GUN156 4WD
TOYOTA HILUX 2WD 2005-2015 - HILUX GGN15R, KUN16R, TGN15R, 16R 2WD (IFS FRONT AND LEAF SPRING REAR)
TOYOTA HILUX 4WD 2005-2015 - HILUX GGN25R, KUN26R 4WD (IFS FRONT AND LEAF SPRING REAR)
TOYOTA LAND CRUISER PRADO 2003-2009 - LAND CRUISER PRADO 120 SERIES
