Nolathane
41113
Front Steering - Bump Steer Correction Kit
*** CONTACT NOLATHANE ***
41113
Front Steering - Bump Steer Correction Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Nolathane bump steer correction kits are designed to correct suspension geometry improving dynamic toe settings during wheel travel. A reduction to bump steer results in sharper handling and reduced understeer.
Kits Required: 1
Warranty: Limited Lifetime Warranty

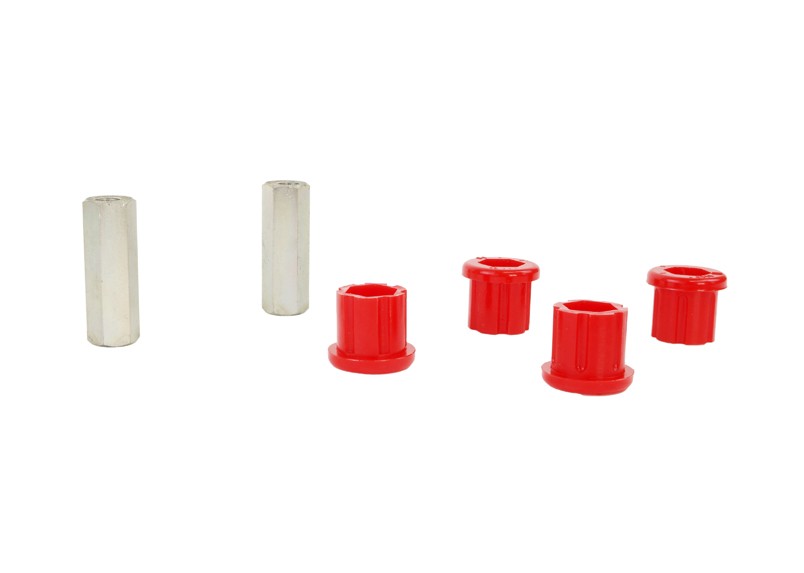

Kit Contents: 4 Bushings, 2 Tubes, Install Guide, Grease
Install Guide: Download Here
Important Notes
Mount - suits 2WD models - excludes electric power steering models - bump steer correction
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Offset mounting point to rectify vehicles with poor wheel alignment.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Engineered to alter/ eliminate unwanted bump steer, optimising the vehicles steering characteristics.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Offset mounting point to rectify vehicles with poor wheel alignment.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Engineered to alter/ eliminate unwanted bump steer, optimising the vehicles steering characteristics.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 31.9 mm 21.9 (Hex) mm 34.7 mm 6.5 mm 40.2 mm 2 22.2x12.2x70 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Alignment Type Adjustment Type On Car Adjustable Adjustment Notes
Bumpsteer Fixed Offset No Bump Steer Correction
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 31.9 mm
ID (B) 21.9 (Hex) mm
L (C) 34.7 mm
FL (D) 6.5 mm
FLOD (E) 40.2 mm
C/Tube QTY 2
C/Tube Size 22.2x12.2x70 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment Type Bumpsteer
Adjustment Type Fixed Offset
On Car Adjustable No
Adjustment Notes Bump Steer Correction
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 01 ODD A 04 EVEN A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 01
Press Plate # (OUT) ODD A
Support Sleeve # 04
Press Plate # EVEN A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven tyre wear

How hard is Nolathane?

Larko talks Family Movers
Videos

Uneven tyre wear

How hard is Nolathane?

Larko talks Family Movers
41113
Vehicle Applications
41113 is suitable for the following vehicles. Select a vehicle for specific fitment details:
CHRYSLER 300C 2004-2012 - 300C LX
CHRYSLER 300C 2011-ON - 300C LD
DODGE CHALLENGER 2011-ON - CHALLENGER 3RD GEN LX
