Nolathane
41105
Front Steering - Rack and Pinion Mount Bushing Kit
*** CONTACT NOLATHANE ***
41105
Front Steering - Rack and Pinion Mount Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 1 Bushing
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.

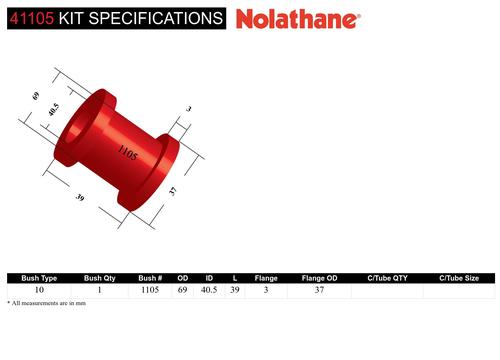

Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
10 1 69 mm 40.5 mm 39 mm 3 mm 37 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 10
Bush Qty 1
OD (A) 69 mm
ID (B) 40.5 mm
L (C) 39 mm
FL (D) 3 mm
FLOD (E) 37 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A EVEN B 09 ODD A 12 EVEN B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) EVEN B
Press Sleeve # (OUT) 09
Press Plate # (OUT) ODD A
Support Sleeve # 12
Press Plate # EVEN B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Mark Larkham talks Nolathane Steering Rack Bushings

How hard is Nolathane?

Larko talks Family Movers
Videos

Mark Larkham talks Nolathane Steering Rack Bushings

How hard is Nolathane?

Larko talks Family Movers
41105
Vehicle Applications
41105 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HOLDEN ADVENTRA 2003-2004 - ADVENTRA VY
HOLDEN ADVENTRA 2004-2009 - ADVENTRA VZ
HOLDEN CALAIS 1997-2000 - CALAIS VT
HOLDEN CALAIS 2000-2002 - CALAIS VX
HOLDEN CALAIS 2002-2004 - CALAIS VY
HOLDEN CALAIS 2004-2006 - CALAIS VZ
HOLDEN CAPRICE 1999-2003 - CAPRICE WH
HOLDEN CAPRICE 2003-2004 - CAPRICE WK
HOLDEN CAPRICE 2004-2006 - CAPRICE WL
HOLDEN COMMODORE 1997-2000 - COMMODORE VT SEDAN AND WAGON
HOLDEN COMMODORE 2000-2002 - COMMODORE VX SEDAN AND WAGON
HOLDEN COMMODORE 2000-2002 - COMMODORE VU UTE
HOLDEN COMMODORE 2002-2004 - COMMODORE VY
HOLDEN COMMODORE 2004-2006 - COMMODORE VZ RWD
HOLDEN CREWMAN 2003-2004 - CREWMAN VY RWD
HOLDEN CREWMAN 2003-2004 - CREWMAN VY AWD
HOLDEN CREWMAN 2004-2007 - CREWMAN VZ RWD
HOLDEN CREWMAN 2004-2007 - CREWMAN VZ AWD
HOLDEN MONARO 2001-2004 - MONARO V2
HOLDEN MONARO 2004-2006 - MONARO VZ
HOLDEN ONE TONNER 2002-2004 - ONE TONNER VY
HOLDEN ONE TONNER 2004-2006 - ONE TONNER VZ
HOLDEN STATESMAN 1999-2003 - STATESMAN WH
HOLDEN STATESMAN 2003-2004 - STATESMAN WK
HOLDEN STATESMAN 2004-2006 - STATESMAN WL
HSV AVALANCHE 2003-2006 - AVALANCHE Y SERIES, Z SERIES
HSV CLUBSPORT 1997-2000 - CLUBSPORT VT
HSV CLUBSPORT 2000-2002 - CLUBSPORT VX
HSV CLUBSPORT 2002-2004 - CLUBSPORT Y SERIES
HSV CLUBSPORT 2004-2006 - CLUBSPORT Z SERIES
HSV COUPE 2001-2004 - COUPE GTO V2
HSV COUPE 2001-2004 - COUPE GTS V2
HSV COUPE 2004-2006 - COUPE 4 V2, Z SERIES
HSV COUPE 2004-2007 - COUPE GTO Z SERIES
HSV GRANGE 1999-2003 - GRANGE WH
HSV GRANGE 2003-2004 - GRANGE WK
HSV GRANGE 2004-2006 - GRANGE WL
HSV GTS 1997-2000 - GTS VT
HSV GTS 2000-2001 - GTS VX
HSV GTS 2002-2004 - GTS Y SERIES
< MORE >
