Nolathane
41101

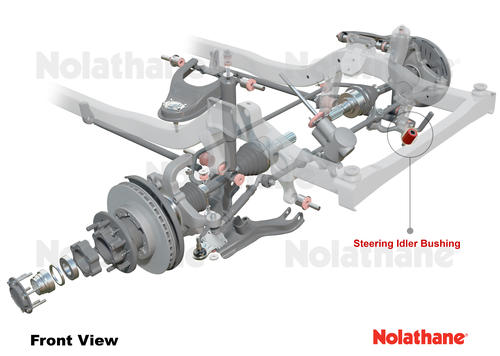

Front Steering - Idler Bushing Kit
*** CONTACT NOLATHANE ***
41101
Front Steering - Idler Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge
Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability induce positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

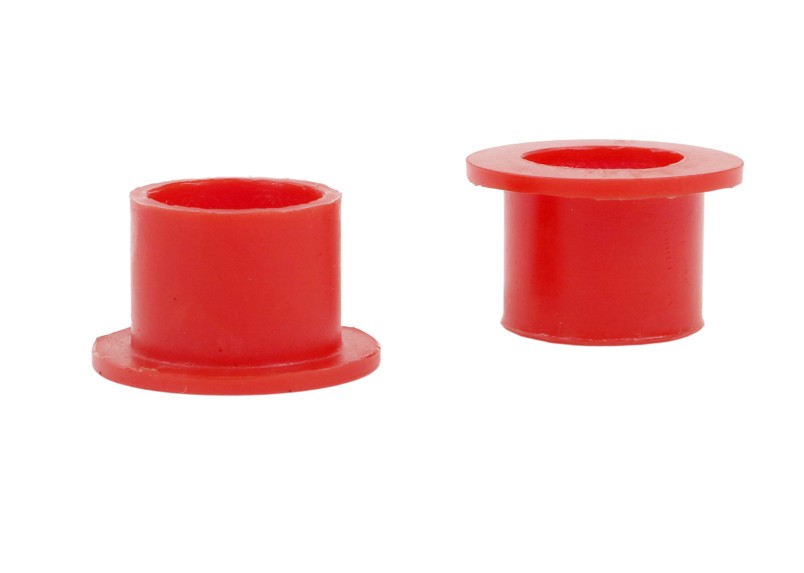

Kit Contents: 2 Bushings, Grease
Important Notes
24mm OD, 19.5mm ID - suits models 08/1991 - on
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 2 33 mm 19.2 mm 31.5 mm 5 mm 38.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 2
OD (A) 33 mm
ID (B) 19.2 mm
L (C) 31.5 mm
FL (D) 5 mm
FLOD (E) 38.5 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 02 EVEN A 05 ODD A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 02
Press Plate # (OUT) EVEN A
Support Sleeve # 05
Press Plate # ODD A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Why Nolathane your 4x4
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Why Nolathane your 4x4
41101
Vehicle Applications
41101 is suitable for the following vehicles. Select a vehicle for specific fitment details:
TOYOTA 4 RUNNER 1989-1996 - 4 RUNNER LN130, RN130, KVN130, VZN130, YN130
TOYOTA HILUX 4WD 1988-1997 - HILUX RN105, LN106, YN106 4WD (LEAF SPRING FRONT AND REAR)
TOYOTA HILUX 4WD 1988-1997 - HILUX LN107, 111, RN106, 110, 111 4WD (IFS FRONT AND LEAF SPRING REAR)
TOYOTA HILUX SURF 1989-1996 - HILUX SURF LN130, RN130, KVN130, VZN130, YN130
