Nolathane
41014

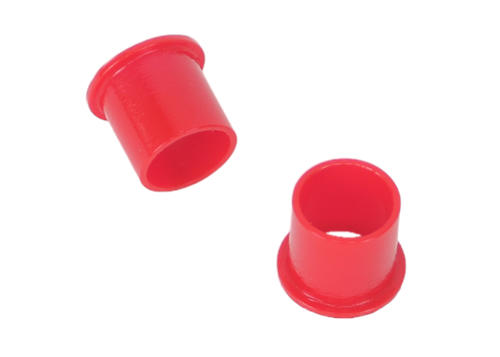

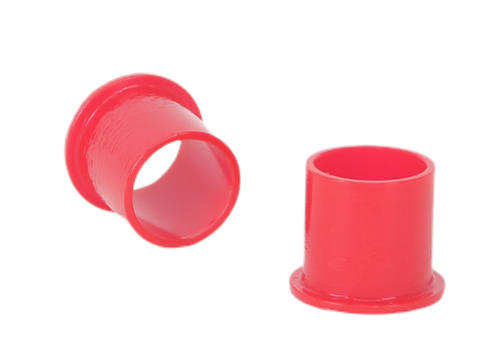

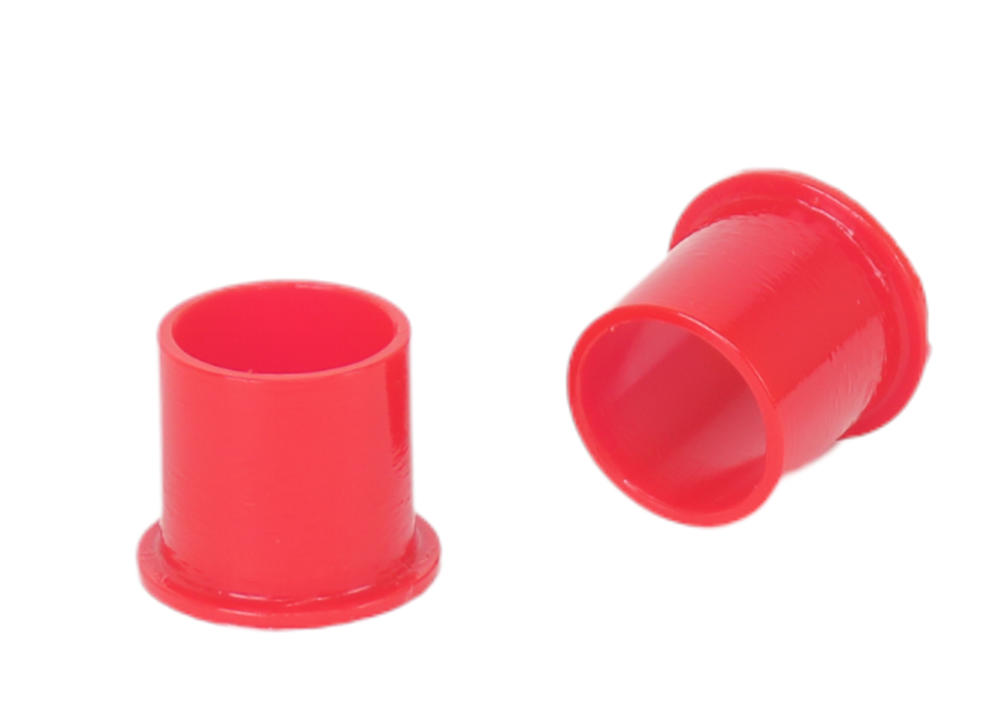

Front Axle Steering Idler Arm - Bushing Kit
*** CONTACT NOLATHANE ***
41014
Front Axle Steering Idler Arm - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 2 Bushings

Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability induce positive steering precision and feedback.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 2 Bushings
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 2 Bushings

Contents
Kit Contains;

Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 2 Bushings
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
This kit is covered by a limited lifetime warranty including parts and labour.

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 2 23.5 mm 20.5 mm 24 mm 2 mm 28 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Type 1 - Shackle Bushing
Kit Specifications
Bush Type 1
Bush Qty 2
OD (A) 23.5 mm
ID (B) 20.5 mm
L (C) 24 mm
FL (D) 2 mm
FLOD (E) 28 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Type 1 - Shackle Bushing
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
2.5 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable Not Applicable Not Applicable 03 Odd A Not Applicable NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
2.5 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) Not Applicable
Press Plate # (OUT) Not Applicable
Support Sleeve # 03
Press Plate # Odd A
Threaded Rod # Not Applicable
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
41014
Vehicle Applications
41014 is suitable for the following vehicles. Select a vehicle for specific fitment details:
NISSAN DATSUN 1985-1997 - DATSUN D21 4WD
NISSAN DATSUN 1985-1997 - DATSUN D21 2WD
NISSAN DATSUN STANZA 1973-1982 - DATSUN STANZA 710, A10
NISSAN NAVARA 1986-1998 - NAVARA D21 4WD
NISSAN NAVARA 1985-1998 - NAVARA D21 2WD
NISSAN NOMAD 1986-1995 - NOMAD C22
NISSAN PATHFINDER 1986-1995 - PATHFINDER WD21
NISSAN TERRANO 1986-1996 - TERRANO WD21
NISSAN TERRANO II 1992-2007 - TERRANO II R20
NISSAN UTE 1980-1986 - UTE 720 4WD
NISSAN UTE 1980-1986 - UTE 720 RWD
NISSAN VANETTE 1981-1987 - VANETTE C20, KC120
NISSAN VANETTE 1986-1995 - NOMAD C22
