Nolathane

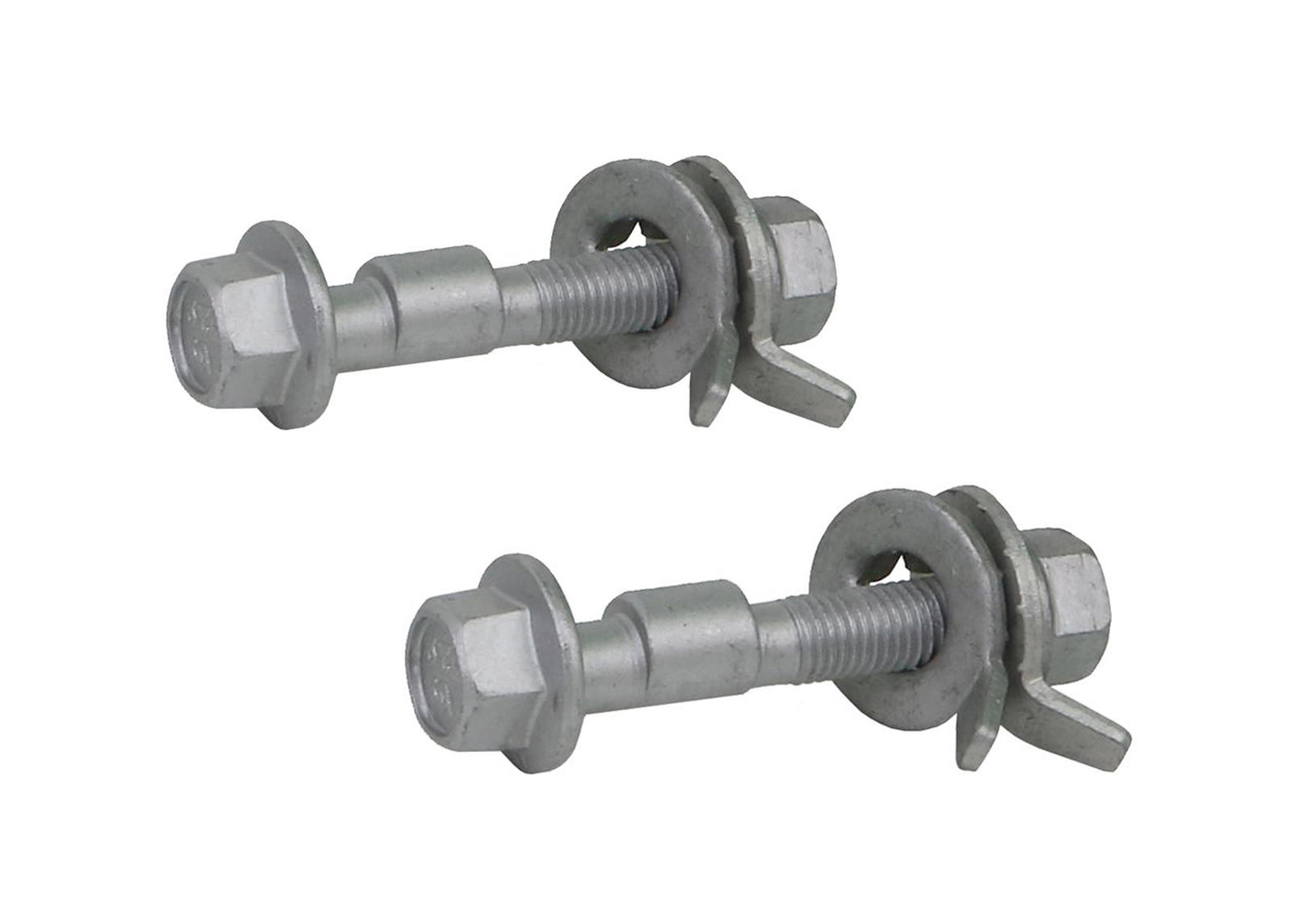

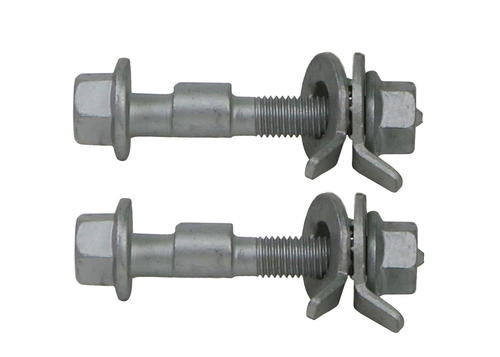

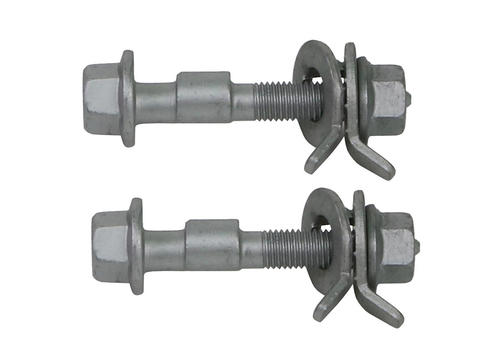

44260
Front Camber adjusting - bolt
44260
Front Camber adjusting - bolt
Dealers
Share
Print
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Larko's Comments:

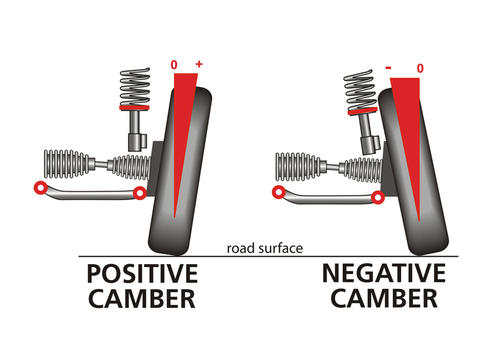

Suffering uneven tyre wear? Sounds like poor alignment. Nolathane 14mm camber bolts provide the largest adjustment range (of up to +/- 1.5deg) to get that alignment back in check. Unlike other "friction" lock designs we use a positive toothed lock washer which means NO SLIP. Simple to adjust and lock time after time with out slipping.
Important Notes:
14mm - suits 80 series models to-1993 - adds +/- 1.5deg camber
Kits Required: 1
Warranty: 3 Year / 60,000Kms
Features
  Supporting metal hardware with corrosion resistant coatings completes the kit for installation
  Provides a window of adjustment to rectify or optimise a vehicles wheel alignment
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a 3 year/ 60,000km warranty - For more information click here

Features
  Supporting metal hardware with corrosion resistant coatings completes the kit for installation
  Provides a window of adjustment to rectify or optimise a vehicles wheel alignment
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a 3 year/ 60,000km warranty - For more information click here
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs Trade Specialist Yes
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs Trade Specialist Yes
Kit Specifications
Bushing Type 20
Alignment Type Adjustment Type On Car Adjustable
Camber Camber Bolt Yes
Alignment Notes:
adds +/- 1.5deg
Packaged Weight & Dimensions
Weight Depth Width Height
0.240kg 7cm 14cm 20cm

Kit Specifications
Bushing Type 20

Alignment Type Camber
Adjustment Type Camber Bolt
On Car Adjustable Yes
Alignment Notes:
adds +/- 1.5deg
Packaged Weight & Dimensions
Weight Depth Width Height
0.240kg 7cm 14cm 20cm
Videos

Mark Larkham explains Camber Bolts

Mark Larkham talks camber

Why Nolathane your small car
Videos

Mark Larkham explains Camber Bolts

Mark Larkham talks camber

Why Nolathane your small car
44260
Vehicle Applications
44260 is suitable for the following vehicles. Select a vehicle for specific fitment details:
AUDI 80, 90 AND QUATTRO B4 (TYP 8C)(10/1991-1996)
CHRYSLER NEON PL(1994-2005)
CHRYSLER PT CRUISER PT(7/2000-7/2010)
CHRYSLER SRT-4 PL(2003-2005)
CHRYSLER VOYAGER GS, RG(2/1997-3/2008)
DODGE SRT-4 PL(2003-2005)
FORD CAPRI SA, SC, SE(10/1989-7/1995)
FORD MUSTANG S197 INCL GT AND SHELBY GT500(2005-2010)
FORD MUSTANG S197 INCL GT AND SHELBY GT500(2011-2014)
HOLDEN APOLLO JK, JL(9/1989-2/1993)
HOLDEN CAPTIVA CG(10/2006-ON)
HONDA CIVIC FD2 EXCL TYPE R(2/2006-2011)
HONDA CIVIC FD2 TYPE R(2/2006-2011)
HYUNDAI ELANTRA HD(10/2006-6/2011)
HYUNDAI ELANTRA MD(6/2011-3/2016)
HYUNDAI I30 FD(7/2007-2011)
HYUNDAI I30 GD(2012-ON)
HYUNDAI S COUPE UE2 , UE3(7/1990-3/1996)
HYUNDAI VELOSTER FS INCL TURBO(3/2011-ON)
KIA CARNIVAL KV(7/1999-2/2007)
KIA CARNIVAL VQ INCL GRAND(8/2006-2014)
KIA CERATO YD INCL KOUP(4/2013-ON)
LAND ROVER FREELANDER LN(2/1998-10/2006)
MAZDA MAZDA3 BM(2/2014-ON)
MITSUBISHI LANCER CH, CS(8/2004-9/2008)
MITSUBISHI LANCER CJ FWD(10/2008-ON)
MITSUBISHI LANCER CJ RALLIART AWD(10/2008-ON)
NISSAN 200B N810(1977-1981)
NISSAN 200SX S14, S15(7/1994-2002)
NISSAN CEFIRO A32(8/1994-11/1999)
NISSAN ELGRAND E50(5/1997-5/2002)
NISSAN JUKE F15(8/2010-ON)
NISSAN MAXIMA A32(2/1995-11/1999)
NISSAN MICRA K12(10/2003-9/2010)
NISSAN MICRA K13(10/2010-ON)
NISSAN MURANO Z50(2002-2007)
NISSAN PATHFINDER R50(5/1995-2004)
NISSAN PULSAR B17, C12(2/2013-ON)
NISSAN SILVIA S14, S15(7/1994-2002)
NISSAN TIIDA C11(2/2006-2012)
NISSAN TIIDA C12(2011-ON)
RENAULT CLIO II X65(1998-2012)
RENAULT CLIO III X85 INCL SPORT(2005-8/2013)
SUBARU FORESTER SF INCL TURBO(8/1997-8/2002)
SUBARU FORESTER SG INCL TURBO(9/2002-8/2008)
SUBARU FORESTER SH INCL TURBO(9/2008-8/2013)
SUBARU IMPREZA GC SEDAN, GF WAGON EXCL WRX AND STI(4/1993-9/2000)
SUBARU IMPREZA GD SEDAN, GG WAGON MY01-02 EXCL WRX AND STI(10/2000-9/2002)
SUBARU IMPREZA GD SEDAN, GG WAGON MY03-07 EXCL WRX AND STI(9/2002-8/2007)
SUBARU IMPREZA GE SEDAN, GH HATCH EXCL WRX AND STI(9/2007-8/2011)
SUBARU IMPREZA GJ SEDAN, GP HATCH EXCL WRX AND STI(9/2011-11/2016)
SUBARU IMPREZA WRX GC SEDAN, GF WAGON(4/1993-9/2000)
SUBARU IMPREZA WRX GD SEDAN MY01-02(10/2000-9/2002)
SUBARU IMPREZA WRX GG WAGON MY01-02(10/2000-9/2002)
SUBARU IMPREZA WRX GD SEDAN MY03-07(9/2002-8/2007)
SUBARU IMPREZA WRX GG WAGON MY03-07(10/2002-8/2007)
SUBARU IMPREZA WRX GV SEDAN, GR HATCH(9/2007-3/2014)
SUBARU IMPREZA WRX VA SEDAN(4/2014-ON)
SUBARU IMPREZA WRX STI GC SEDAN, GF WAGON(4/1993-9/2000)
SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY01-02(10/2000-9/2002)
SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY03(10/2002-9/2003)
SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY04(10/2003-9/2004)
SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY05-06(9/2004-8/2006)
SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY07(9/2006-8/2007)
SUBARU IMPREZA WRX STI GV SEDAN, GR HATCH(9/2007-2/2014)
SUBARU IMPREZA WRX STI VA SEDAN(3/2014-ON)
SUBARU LEGACY BC, BF INCL RS TURBO(10/1989-5/1994)
SUBARU LEGACY BD, BG(6/1994-8/1998)
SUBARU LEGACY BE, BH INCL TURBO(9/1998-8/2003)
SUBARU LEGACY BM, BR INCL TURBO(9/2009-12/2014)
SUBARU LEVORG VA(5/2015-ON)
SUBARU LIBERTY BC, BF INCL RS TURBO(10/1989-5/1994)
SUBARU LIBERTY BD, BG(6/1994-8/1998)
SUBARU LIBERTY BE, BH INCL TURBO(9/1998-8/2003)
SUBARU LIBERTY BM, BR INCL TURBO(9/2009-12/2014)
SUBARU OUTBACK BG(7/1996-8/1998)
SUBARU OUTBACK BH(9/1998-8/2003)
SUBARU SVX CXW(3/1992-7/1997)
TOYOTA CAMRY SV10, 11(3/1983-4/1987)
TOYOTA CAMRY SV20, 21, 22(5/1987-2/1993)
TOYOTA ECHO NCP10, NCP12(10/1999-10/2005)
TOYOTA MR2 SPYDER ZZW30(10/2000-3/2006)
UNIVERSAL PRODUCTS CAMBER ADJUSTING BOLT KIT
