Nolathane
43103
Rear Axle Shock Absorber - Lower Bushing Kit
*** CONTACT NOLATHANE ***
43103
Rear Axle Shock Absorber - Lower Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Nolathane shock bushings enhance the performance of new and used shock absorbers.
Kits Required: 1
Warranty: Limited Lifetime Warranty

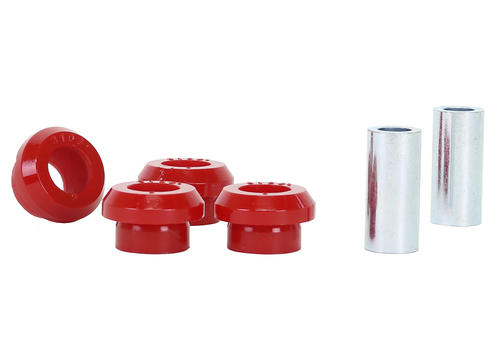

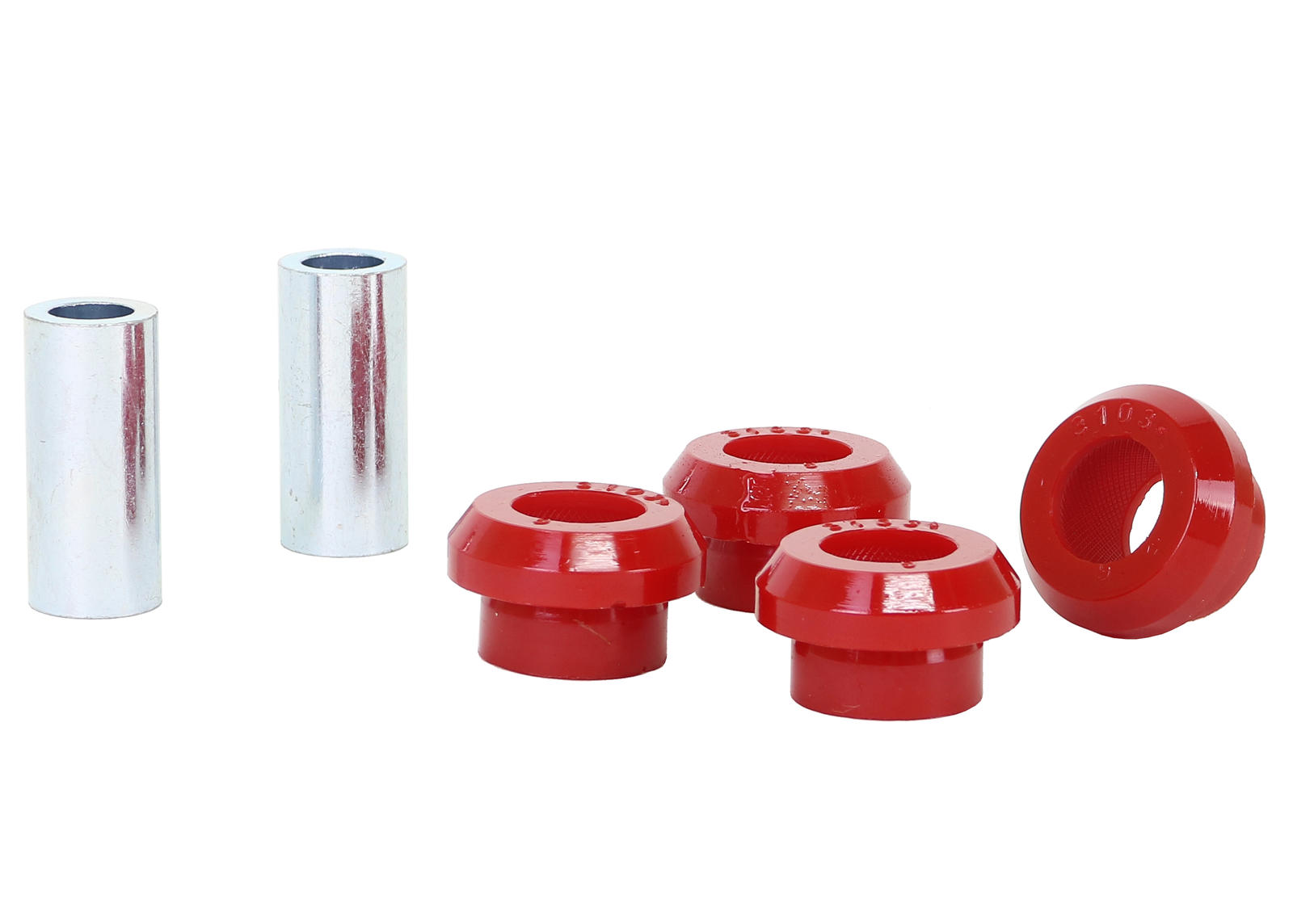

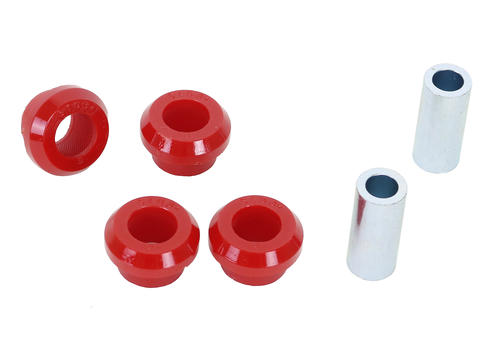

Kit Contents: 4 Bushings, 2 Tubes
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 30 mm 22 mm 25 mm 11 mm 42 mm 2 22.2x14.3x50 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 30 mm
ID (B) 22 mm
L (C) 25 mm
FL (D) 11 mm
FLOD (E) 42 mm
C/Tube QTY 2
C/Tube Size 22.2x14.3x50 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 01 Odd A 04 Even A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 01
Press Plate # (OUT) Odd A
Support Sleeve # 04
Press Plate # Even A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

43103
Vehicle Applications
43103 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD FAIRLANE 2003-2007 - BA, BF
FORD FAIRMONT 2002-2008 - BA, BF SEDAN
FORD FALCON 2002-2008 - BA, BF SEDAN
FORD LTD 2003-2007 - BA, BF
FPV FALCON 2003-2008 - GT / GT-E / GT-P / COBRA BA, BF SEDAN
FPV FALCON 2004-2006 - F6 TYPHOON BA
FPV FALCON 2005-2007 - FORCE 6 BF
FPV FALCON 2005-2007 - FORCE 8 BF
