Nolathane
43035

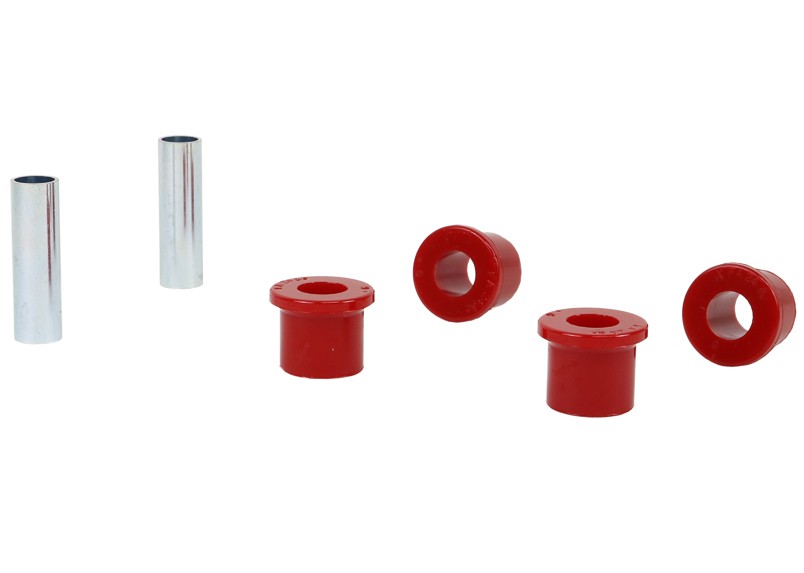

Front Shock absorber - to control arm bushing
43035
Front Shock absorber - to control arm bushing
Dealers
Share
Print
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge
Larko's Comments:
Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Nolathane shock bushings enhance the performance of new and used shock absorbers.
Important Notes:
Control arm outer - fitter friendly design
Kits Required: 1
Warranty: Lifetime
Install Guide
INSTALL GUIDE
Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here

Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself Yes
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself Yes
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 32 mm 19 mm 31.6 mm 4.8 mm 39.7 mm 2 19x16.2x65 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Packaged Weight & Dimensions
Weight Depth Width Height
0.200kg 7cm 14cm 20cm
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 32 mm
ID (B) 19 mm
L (C) 31.6 mm
FL (D) 4.8 mm
FLOD (E) 39.7 mm
C/Tube QTY 2
C/Tube Size 19x16.2x65 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight & Dimensions
Weight Depth Width Height
0.200kg 7cm 14cm 20cm
