Nolathane
Suitable for
43020

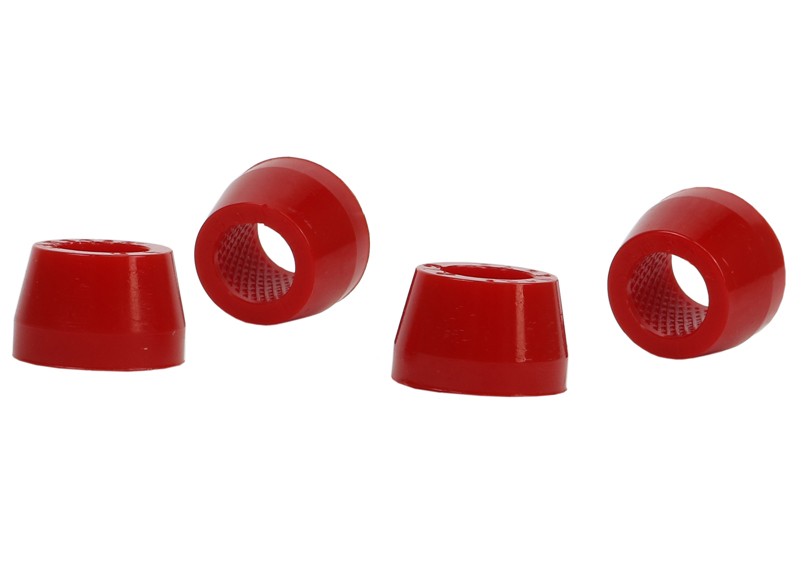

Rear Shock absorber - lower bushing
43020
Rear Shock absorber - lower bushing
Dealers
Share
Print
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge
Larko's Comments:
Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Nolathane shock bushings enhance the performance of new and used shock absorbers.
Important Notes:
Kits Required: 1
Warranty: Lifetime
Install Guide
INSTALL GUIDE
Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here

Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1.0 hrs DIY - Do It Yourself
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1.0 hrs DIY - Do It Yourself
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
3 4 AI=29.5 AII=24 mm 16 mm 19 mm 5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Packaged Weight & Dimensions
Weight Depth Width Height
0.06kg 7cm 14cm 20cm
Kit Specifications
Bush Type 3
Bush Qty 4
OD (A) AI=29.5 AII=24 mm
ID (B) 16 mm
L (C) 19 mm
FL (D) 5 mm
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight & Dimensions
Weight Depth Width Height
0.06kg 7cm 14cm 20cm
Popular Related Parts
Popular Related Parts
click for 43010
Videos

Larko explains Shock Absorbers and the impotant role Shock Bushings play

Larko talks Bushing Lubrication

Why Nolathane your commercial ute or van
Videos

Larko explains Shock Absorbers and the impotant role Shock Bushings play

Larko talks Bushing Lubrication

Why Nolathane your commercial ute or van
43020
Vehicle Applications
43020 is suitable for the following vehicles. Select a vehicle for specific fitment details:
BEDFORD VAN CF(8/1970-1981)
FORD MAVERICK DA COIL SPRING FRONT AND REAR(8/1987-9/1993)
FORD MAVERICK DA LEAF SPRING FRONT AND REAR(8/1987-9/1993)
HOLDEN COMMODORE VB, VC, VH, VK, VL INCL HDT(1978-7/1988)
HOLDEN DROVER QB(2/1985-12/1987)
HOLDEN HOLDEN FJ(10/1953-1/1957)
HOLDEN HOLDEN FE, FC, FB(1/1957-4/1961)
HOLDEN HOLDEN EK, EJ, EH(5/1961-1-1965)
HOLDEN HOLDEN HD, HR(2/1965-2/1968)
HOLDEN HOLDEN HK, HT, HG(2/1968-6/1971)
HOLDEN MONARO HK, HT, HG(7/1968-6/1971)
HOLDEN SHUTTLE WFR(3/1982-12/1991)
HOLDEN TORANA HB(5/1967-5/1969)
JEEP CHEROKEE SJ 4WD(1974-1983)
JEEP CJ5, CJ6(1955-1983)
JEEP CJ7, CJ8 SCRAMBLER, OVERLANDER(1976-1986)
MITSUBISHI TRITON ME, MF, MG, MH, MJ 4WD(1986-10/1996)
MITSUBISHI TRITON MK 4WD(10/1996-6/2006)
NISSAN 120Y B210(3/1974-5/1979)
NISSAN 180B P610(9/1972-10/1977)
NISSAN 200B N810(1977-1981)
NISSAN 240K C110(4/1974-3/1978)
NISSAN 260C H330(1973-1979)
NISSAN 280C P330, P430(1976-5/1984)
NISSAN 520 E12(1968-1969)
NISSAN 620 GN(1971-1980)
NISSAN 1200 B110, 120(5/1970-4/1985)
NISSAN 1600 P510(1965-1973)
NISSAN CABALL C340(1979-1981)
NISSAN CABSTAR F23(1/1992-1993)
NISSAN PATROL MQ, MK(4/1980-10/1987)
NISSAN PATROL GQ Y60 CAB CHASSIS LEAF SPRING FRONT AND REAR(11/1987-10/1997)
NISSAN PINTARA R31(6/1986-12/1990)
NISSAN PRAIRIE M10(1982-1988)
NISSAN PULSAR N10(10/1981-12/1982)
NISSAN SKYLINE R31(7/1986-12/1989)
NISSAN SUNNY B310(1978-1985)
NISSAN URVAN E20, F20(1973-1982)
NISSAN URVAN E23(4/1980-10/1986)
SUZUKI ALTO SH410(2/1996-4/1999)
TOYOTA CORONA RT142, ST141(8/1983-4/1987)
