Nolathane
43002

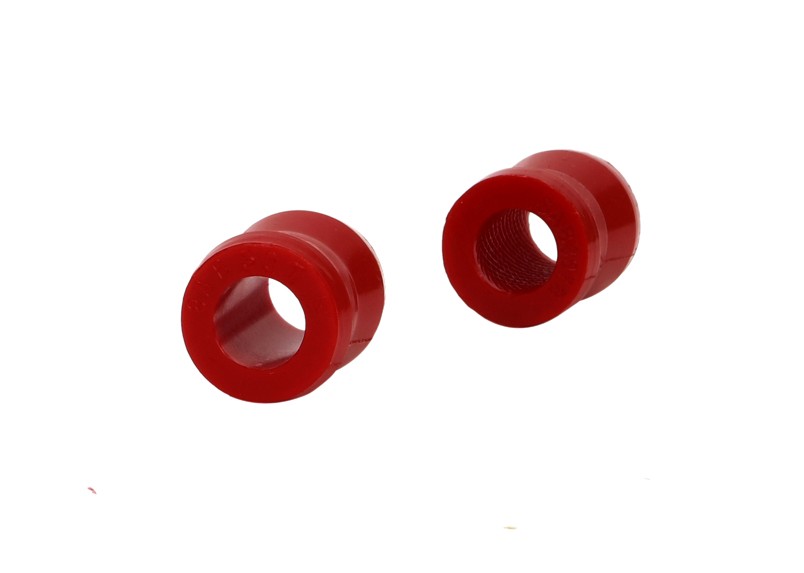

Front Shock absorber - bushing
43002
Front Shock absorber - bushing
Dealers
Share
Print
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge
Larko's Comments:
Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Nolathane shock bushings enhance the performance of new and used shock absorbers.
Important Notes:
Kits Required: 2
Warranty: Lifetime
Install Guide
INSTALL GUIDE
Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here

Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
15 2 AI=30 AII=25 mm 16 mm 35 mm 6 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Packaged Weight & Dimensions
Weight Depth Width Height
0.060kg 7cm 14cm 20cm

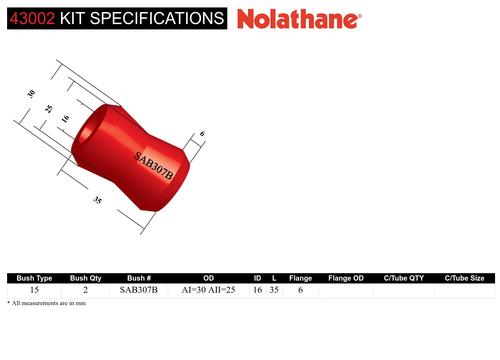

Kit Specifications
Bush Type 15
Bush Qty 2
OD (A) AI=30 AII=25 mm
ID (B) 16 mm
L (C) 35 mm
FL (D) 6 mm
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight & Dimensions
Weight Depth Width Height
0.060kg 7cm 14cm 20cm
Videos

Larko explains Shock Absorbers and the impotant role Shock Bushings play

Larko talks Bushing Lubrication

Why Nolathane your 4x4/SUV
Videos

Larko explains Shock Absorbers and the impotant role Shock Bushings play

Larko talks Bushing Lubrication

Why Nolathane your 4x4/SUV
43002
Vehicle Applications
43002 is suitable for the following vehicles. Select a vehicle for specific fitment details:
DAIHATSU F SERIES F20, F50, F60 WAGON(11/1978-6/1984)
DAIHATSU F SERIES F25, F55, F65 PICKUP, CAB CHASSIS AND TRAY BACK(11/1978-6/1984)
DAIHATSU FEROZA F-300, F-300B, F-310 4WD(10/1988-1/1999)
DAIHATSU HI-JET S38, 40, 60(9/1971-8/1981)
DAIHATSU HI-JET S70, S75, S76(5/1982-5/1986)
DAIHATSU ROCKY F70, F75, F80, F85 HARD TOP, SOFT TOP AND WAGON(6/1984-7/1993)
DAIHATSU ROCKY F77, F87 CAB CHASSIS(1987-6/1993)
DAIHATSU RUGGER F70, F75, F80, F85 HARD TOP, SOFT TOP AND WAGON(6/1984-7/1993)
DAIHATSU RUGGER F77, F87 CAB CHASSIS(1987-6/1993)
FORD COURIER PC, PD 2WD(5/1987-2/1999)
FORD COURIER PE, PF, PG 2WD(2/1999-7/2004)
FORD ECONOVAN SA 2WD(6/1979-4/1984)
FORD ECONOVAN SB, SE, SF, SG, SH 2WD(5/1984-5/1997)
FORD ECONOVAN SB, SE, SF, SG, SH 4WD(5/1984-5/1997)
FORD ECONOVAN JG, JH 2WD(6/1997-7/2006)
FORD F SERIES F100, F250, F350 2WD(1970-1981)
FORD F SERIES F100, F250, F350 4WD(1970-1981)
FORD RAIDER UV 4WD(8/1991-7/1997)
FORD SPECTRON 2WD(1/1984-1996)
FORD SPECTRON 4WD(1/1984-1996)
FORD TRADER 0409, 0509, 0811(3/1984-5/1995)
FORD TRADER 2, 3, 3.5, 4 TONNE(7/1989-10/1995)
FORD TRADER 2, 3.5, 4 TONNE TRUCK 2.75, 3.5 TONNE CAB(8/1995-4/1999)
GREAT WALL V200 K2(8/2011-ON)
GREAT WALL V240 K2(6/2009-ON)
HOLDEN COLORADO RC 2WD(7/2008-5/2012)
HOLDEN COLORADO RC 4WD(7/2008-5/2012)
HOLDEN COMMODORE VN, VP, VG(8/1988-7/1993)
HOLDEN COMMODORE VR, VS(7/1993-9/1997)
HOLDEN DROVER QB(2/1985-12/1987)
HOLDEN GEMINI TX, TC, TD, TE, TF, TG(3/1975-5/1985)
HOLDEN HOLDEN HQ, HJ, HX, HZ, WB(7/1971-7/1985)
HOLDEN JACKAROO UBS13, 16, 52(11/1981-7/1985)
HOLDEN JACKAROO UBS16, 17, 56(8/1985-3/1992)
HOLDEN MONARO HQ, HJ, HX, HZ(7/1971-8/1979)
HOLDEN RODEO KB/KBD21, 26, 27, 28, 29 2WD(1981-6/1988)
HOLDEN RODEO KB/KBD41, 42, 44, 46, 47, 48, 49 4WD(1981-6/1988)
HOLDEN RODEO TFR 2WD(2/1988-2/2003)
HOLDEN RODEO TFS 4WD(7/1988-2/2003)
HOLDEN RODEO RA 2WD(3/2003-10/2008)
HOLDEN RODEO RA 4WD(3/2003-10/2008)
HOLDEN STATESMAN HQ, HJ, HX, HZ, WB(7/1971-7/1985)
HOLDEN TORANA LC, LJ, TA(1969-1974)
HOLDEN TORANA LH, LX, UC(3/1974-1979)
HSV CLUBSPORT VR, VS(8/1993-8/1997)
HSV COMMODORE VN, VP, VG(10/1989-2/1991)
HSV MALOO VR, VS(7/1993-10/2000)
HSV MANTA VS(4/1995-8/1997)
INTERNATIONAL SCOUT 80, SCOUT II(1967-1983)
ISUZU BIGHORN UBS13,16, 52(1984-1986)
ISUZU BIGHORN UBS16, 17, 56(8/1985-3/1992)
ISUZU D-MAX TFR, TFS 2WD(10/2008-5/2012)
ISUZU D-MAX TFR, TFS 4WD(10/2008-5/2012)
ISUZU RODEO KB/KBD21, 26, 27, 28, 29 2WD(1981-6/1988)
ISUZU RODEO KB/KBD41, 42, 44, 46, 47, 48, 49 4WD(1981-6/1988)
ISUZU RODEO TFR 2WD(7/1988-1996)
ISUZU RODEO TFS 4WD(7/1988-1996)
ISUZU TROOPER UBS13, 16, 52(1984-1986)
ISUZU TROOPER UBS16, 17, 56(8/1985-3/1992)
MAZDA 121, 121L CD(1/1976-1980)
MAZDA 323 FA HATCHBACK RWD(1977-9/1980)
MAZDA 626 CB(1978-2/1983)
MAZDA 929 LA SEDAN AND HARDTOP(9/1977-9/1981)
MAZDA B2000, 2200 UF 2WD(2/1985-1994)
MAZDA B2500, 2600 BRAVO UF 2WD(3/1987-10/1998)
MAZDA E1300, E1400, E1600(1978-1981)
MAZDA E1400, E1600, E2200(1981-1983)
MAZDA E1400, E1800 2WD(6/1984-12/1996)
MAZDA E1400, E1800 4WD(6/1984-12/1996)
MAZDA E2000 E2200 2WD(6/1984-7/2006)
MAZDA E2000, E2200 4WD(6/1984-7/2006)
MAZDA E2500(8/1997-5/2003)
MAZDA RX5 MK2(1976-1979)
MAZDA T2000, 2600, 3500, 4100 1ST GEN(1981-1989)
MAZDA T3500, 4000, 4600 2ND GEN(6/1989-7/2000)
MITSUBISHI CANTER FC212, FE211, 214(1979-1985)
MITSUBISHI CANTER FD434, 444, FE439, 449(1986-1991)
MITSUBISHI L200 MA, MB, MC. MD 2WD(3/1980-10/1986)
MITSUBISHI L200 MA, MB, MC, MD 4WD(3/1980-10/1986)
MITSUBISHI L300 SA, SB, SC, SD, SE 2WD(11/1981-7/1987)
MITSUBISHI PAJERO NA, NB, NC, ND, NE, NF, NG(1983-5/1991)
MITSUBISHI PAJERO NH, NJ, NK, NL(5/1991-4/2000)
MITSUBISHI SIGMA GE(10/1977-5/1980)
MITSUBISHI SIGMA SCORPION GE(3/1978-6/1979)
MITSUBISHI TRITON ME, MF, MG, MH, MJ 2WD(1986-10/1996)
MITSUBISHI TRITON ME, MF, MG, MH, MJ 4WD(1986-10/1996)
NISSAN 120Y B210(3/1974-5/1979)
NISSAN 240C P230(1971-1973)
NISSAN 280C P330, P430(1976-5/1984)
NISSAN 720 CG RWD(1/1980-12/1985)
NISSAN 720 CG 4WD(1/1980-12/1985)
NISSAN 1200 B110, 120(5/1970-4/1985)
NISSAN BLUEBIRD SERIES 1, 2 AND 3(1981-1986)
NISSAN CABALL C340(1979-1981)
NISSAN MISTRAL R20(3/1997-6/2000)
NISSAN NAVARA D21 2WD(1/1986-2/1997)
NISSAN NAVARA D21 4WD(1/1986-2/1997)
NISSAN NAVARA D22 2WD(2/1997-6/2015)
NISSAN NAVARA D22 4WD(2/1997-6/2015)
NISSAN NOMAD C22(12/1986-9/1993)
NISSAN PATHFINDER WD21(8/1986-8/1995)
NISSAN PATROL G60, 61(1967-1982)
NISSAN PATROL MQ, MK(4/1980-10/1987)
NISSAN SERENA C23(6/1991-5/1996)
NISSAN TERRANO I WD21(8/1986-8/1995)
NISSAN TERRANO II R20(1993-2006)
NISSAN URVAN E24(11/1986-3/2001)
NISSAN VANETTE C20(1968-1978)
NISSAN VANETTE C120(10/1978-10/1986)
NISSAN VANETTE C22(12/1986-9/1993)
SUZUKI JIMNY 1000(6/1981-7/1988)
SUZUKI JIMNY JA51(1985-1996)
SUZUKI LJ50(1974-6/1978)
SUZUKI LJ80(1978-12/1981)
SUZUKI SIERRA SJ410 F10A(6/1981-7/1988)
SUZUKI SIERRA SJ413 LEAF SPRING FRONT AND REAR(1985-1996)
TOYOTA BLIZZARD LD10(3/1982-12/1983)
TOYOTA CELICA RA20(1970-1977)
TOYOTA CELICA RA23, 28, TA22, 23(1971-10/1977)
TOYOTA CELICA RA40, MA45(11/1977-10/1981)
TOYOTA CELICA RA60, 65, MA61, SA63(8/1981-12/1985)
TOYOTA CHASER X30, X32, X40, X41(9/1977-12/1980)
TOYOTA CHASER X51, X61(1980-1984)
TOYOTA CHASER X71(11/1984-12/1988)
TOYOTA COASTER BB20, 21, HB30, RB20(1/1982-6/1992)
TOYOTA COROLLA KE10,11,16,18(1966-1970)
TOYOTA COROLLA KE70, 71, AE70, 71(10/1981-4/1985)
TOYOTA COROLLA AE85, 86 SPRINTER(5/1983-4/1987)
TOYOTA COROLLA AE90, 92, 93, 94, 95, 96(6/1989-9/1994)
TOYOTA CORONA RT40, 80(1964-1971)
TOYOTA CORONA MK2 MX22, 23(1972-10/1974)
TOYOTA CORONA RT104, 108(3/1974-9/1979)
TOYOTA CORONA RT133, XT130, XT131(10/1979-7/1983)
TOYOTA CRESSIDA MX32, MX36(3/1977-12/1980)
TOYOTA CRESSIDA MX62(2/1981-10/1985)
TOYOTA CRESSIDA MX73(11/1984-12/1988)
TOYOTA CROWN MS65, MS70, MS75(1971-1976)
TOYOTA CROWN MS83, MS85(4/1976-2/1978)
TOYOTA CROWN MS111, 112(9/1979-9/1983)
TOYOTA CROWN MS123(10/1983-8/1987)
TOYOTA DYNA BU20, 32, 36, HU30, 40, 50, RU20, 25, 30(8/1977-8/1984)
TOYOTA DYNA BU60, 85(11/1984-6/1995)
TOYOTA DYNA LH80, YH81(11/1985-5/1995)
TOYOTA DYNA LY60(11/1985-6/1987)
TOYOTA DYNA LY60(8/1987-5/1995)
TOYOTA DYNA LY211(5/1995-10/2001)
TOYOTA ESTIMA TCR10, 11, 20, 21(9/1990-8/2000)
TOYOTA HIACE RH11, 20, 32, 42(2/1977-12/1985)
TOYOTA HIACE LH30(1979-1982)
TOYOTA HIACE LH51, 60, 61, 63, 70, 71, 73,YH50, 51, 61, 63, 71, 73(1/1983-9/1989)
TOYOTA HIACE LH103, 113, 125, RZH103, 113, 125(8/1989-2/2005)
TOYOTA HIACE LH154, 162, 164, 172, 174, 184(7/1999-2/2005)
TOYOTA HIACE KDH200, 220, TRH201, 221(1/2005-ON)
TOYOTA HILUX RN10, 13, 15, 16 2WD(3/1968-4/1972)
TOYOTA HILUX RN20, 22, 25, 27 2WD(6/1971-7/1978)
TOYOTA HILUX LN30, 40, RN30, 31, 40, 41 2WD(1/1978-10/1983)
TOYOTA HILUX LN85, 86, RN85, 90, YN85 GRINNER 2WD(10/1988-11/1997)
TOYOTA HILUX LN147, RZN147, 149, 154 2WD(11/1997-4/2005)
TOYOTA HILUX LN36, 46, RN36, 46 4WD(4/1979-10/1983)
TOYOTA HILUX LN65, YN65, 67 4WD(11/1983-9/1988)
TOYOTA HILUX KZN165, LN167, 172, RZN169, 174, VZN167 4WD(11/1997-4/2005)
TOYOTA LANDCRUISER BJ40, 42, FJ40, 45, HJ45, 47(1969-12/1984)
TOYOTA LANDCRUISER FJ55(11/1972-11/1980)
TOYOTA LANDCRUISER FJ60, 62, HJ60, 61, 62(11/1980-12/1991)
TOYOTA LANDCRUISER BJ70, 73, 74(1/1985-3/1990)
TOYOTA LANDCRUISER FJ70, 73, 75(1/1985-10/1992)
TOYOTA LANDCRUISER HJ75(1/1985-3/1990)
TOYOTA LEXCEN VN, VP(8/1988-7/1993)
TOYOTA LEXCEN VR, VS(7/1993-9/1997)
TOYOTA LITEACE KM10, KM11(1971-1979)
TOYOTA LITEACE CM20, 35, KM20, 36, YM21, 30, 35 RWD(10/1979-12/1992)
TOYOTA LITEACE YM40, 41 AWD(3/1986-9/1988)
TOYOTA PREVIA TCR10, 11, 20, 21(9/1990-8/2000)
TOYOTA RAV 4 SXA10, 11, 16(4/1994-5/2000)
TOYOTA RAV 4 ACA20, 21, 22, 23(5/2000-11/2005)
TOYOTA SPACIA YR22(10/1993-1/1998)
TOYOTA SUPRA MA61(8/1981-7/1985)
TOYOTA TARAGO YR20, 21, 22, 31, CR21(1/1983-10/1990)
TOYOTA TARAGO TCR10, 11, 20, 21(9/1990-8/2000)
TOYOTA TERCEL AL25(10/1983-12/1988)
TOYOTA TOWNACE YR39(4/1992-1/1997)
TOYOTA TOWNACE KR42(11/1996-12/1998)
TOYOTA TOYOACE JY16, RY16(9/1971-2/1979)
TOYOTA TOYOACE LY30, 31, RY31(5/1980-7/1985)
