Suitable for
42522

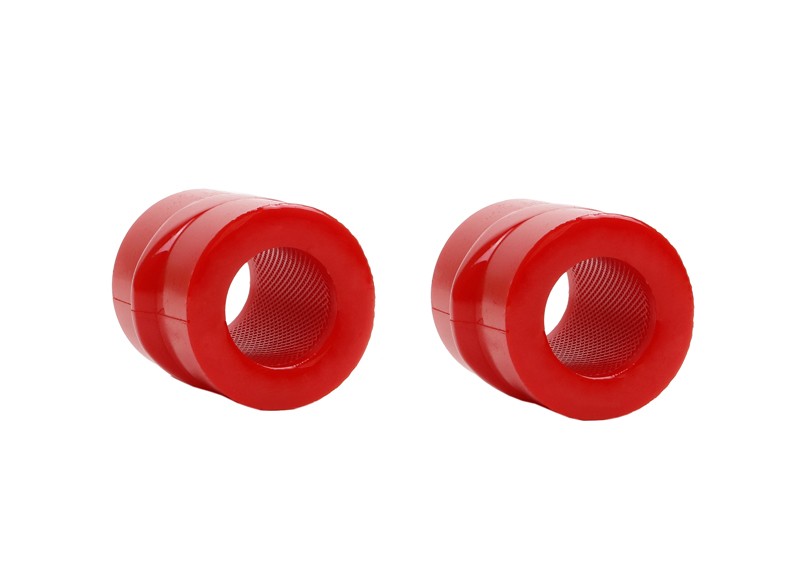

Front Sway bar - mount bushing
42522
Front Sway bar - mount bushing
Dealers
Share
Print
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Larko's Comments:
One of the most common suspension service items as they are easily inspected and simple to replace. Nolathane sway bar mounts feature the latest in material formulation technology with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.
Important Notes:
30mm
Kits Required: 1
Warranty: Lifetime
Install Guide
INSTALL GUIDE
Stockist
STOCKIST
Features
Installation
Specifications
Options & Related Parts
Videos
Applications
Features
✓  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
✓  Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life
✓  Internal grease reservoirs provide continual self lubrication for optimum friction management
✓  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
✓  Backed by a LIMITED LIFETIME WARRANTY - For more information click here

Features
✓  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
✓  Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life
✓  Internal grease reservoirs provide continual self lubrication for optimum friction management
✓  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
✓  Backed by a LIMITED LIFETIME WARRANTY - For more information click here
Installation
Fitment
Time (hrs)		 Degree of
Difficulty		 Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Installation
Fitment
Time (hrs)		 Degree of
Difficulty		 Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
19 2 53.5 mm 29.5 mm 52.2 mm 4.8 mm 40.5 mm
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Packaged Weight & Dimensions
Weight Depth Width Height
0.19kg 7cm 14cm 20cm
Kit Specifications
Bush Type 19
Bush Qty 2
OD (A) 53.5 mm
ID (B) 29.5 mm
L (C) 52.2 mm
FL (D) 4.8 mm
FLOD (E) 40.5 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight & Dimensions
Weight Depth Width Height
0.19kg 7cm 14cm 20cm
Other Options
Other Options
click for 42523
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
42522
Vehicle Applications
42522 is suitable for the following vehicles. Select a vehicle for specific fitment details:
CHRYSLER 300C LX INCL SRT8(11/2005-10/2011)
CHRYSLER 300 INCL SRT8(11/2011-ON)
DODGE CHALLENGER 3RD GEN INCL SRT8(3/2008-10/2011)
DODGE CHALLENGER 3RD GEN INCL SRT8(11/2011-ON)
DODGE CHARGER LX INCL SRT8(3/2008-10/2011)
DODGE CHARGER LD INCL SRT8(11/2011-ON)
