Nolathane
42363

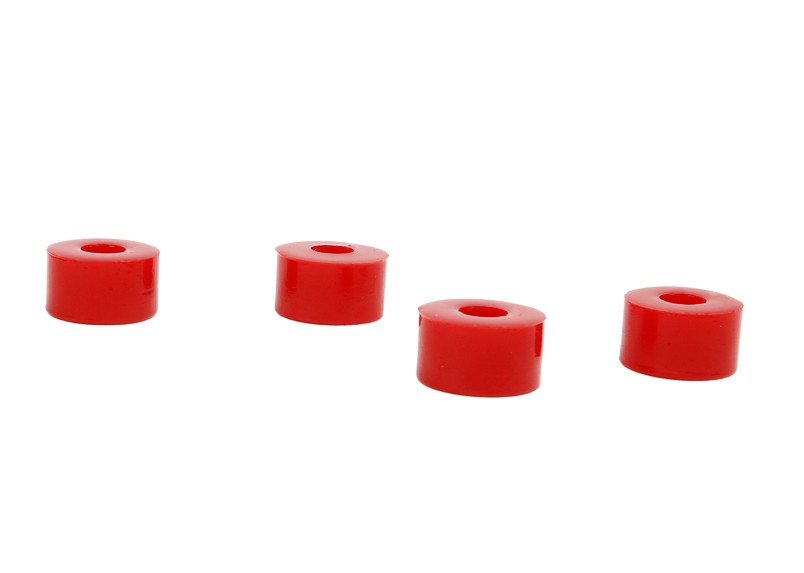

Front Sway bar - link bushing
42363
Front Sway bar - link bushing
Dealers
Share
Print
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Larko's Comments:
Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane formulation bushings are engineered to last and deliver improved driving performance.
Important Notes:
Kits Required: 1
Warranty: Lifetime
Install Guide
INSTALL GUIDE
Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here

Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
7 4 25 mm 10 mm 13 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Packaged Weight & Dimensions
Weight Depth Width Height
0.040kg 7cm 14cm 20cm
Kit Specifications
Bush Type 7
Bush Qty 4
OD (A) 25 mm
ID (B) 10 mm
L (C) 13 mm
FL (D)
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight & Dimensions
Weight Depth Width Height
0.040kg 7cm 14cm 20cm
Other Options
Other Options
click for 42714
Videos

Fitting Tip - Link Pin Bushings

How hard is Nolathane?

Why Nolathane your 4x4/SUV
Videos

Fitting Tip - Link Pin Bushings

How hard is Nolathane?

Why Nolathane your 4x4/SUV
42363
Vehicle Applications
42363 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD MAVERICK DA COIL SPRING FRONT AND REAR(8/1987-9/1993)
HOLDEN ASTRA LD(7/1987-7/1989)
HOLDEN BARINA MB(2/1985-8/1986)
HOLDEN BARINA MF, MH(2/1989-5/1994)
HOLDEN DROVER QB(2/1985-12/1987)
HOLDEN JACKAROO UBS13, 16, 52(11/1981-7/1985)
HOLDEN RODEO KB/KBD21, 26, 27, 28, 29 2WD(1981-6/1988)
HOLDEN RODEO KB/KBD41, 42, 44, 46, 47, 48, 49 4WD(1981-6/1988)
HSV ASTRA SV 1800 LD(9/1988-8/1989)
ISUZU BIGHORN UBS13,16, 52(1984-1986)
ISUZU RODEO KB/KBD21, 26, 27, 28, 29 2WD(1981-6/1988)
ISUZU RODEO KB/KBD41, 42, 44, 46, 47, 48, 49 4WD(1981-6/1988)
ISUZU TROOPER UBS13, 16, 52(1984-1986)
NISSAN 180SX S13(1984-1996)
NISSAN 200SX S14, S15(7/1994-2002)
NISSAN AVENIR W10(5/1990-1998)
NISSAN CEFIRO A31(9/1988-8/1994)
NISSAN CEFIRO A32(8/1994-11/1999)
NISSAN EXA KN13(2/1987-10/1991)
NISSAN LARGO W30(5/1993-1998)
NISSAN NX / NX-R B13(10/1991-1/1996)
NISSAN PATROL GQ Y60 WAGON, SWB AND CAB CHASSIS COIL SPRING FRONT AND REAR(11/1987-10/1997)
NISSAN PATROL GU Y61 WAGON AND CAB CHASSIS(10/1997-2010)
NISSAN PULSAR N13(6/1987-9/1991)
NISSAN PULSAR N14 EXCL GTIR(10/1991-9/1995)
NISSAN SENTRA B12(6/1987-9/1991)
NISSAN SENTRA B13(10/1991-9/1995)
NISSAN SERENA C23(6/1991-5/1996)
NISSAN SILVIA S14, S15(7/1994-2002)
NISSAN SUNNY B13(1990-1994)
SUZUKI BALENO SY416, 418(1995-2000)
SUZUKI ESCUDO SE416, SV420, SV620(7/1988-8/2000)
SUZUKI GRAND VITARA SQ416, 420, 625(1988-8/2005)
SUZUKI JIMNY 1000(6/1981-7/1988)
SUZUKI JIMNY JA51(1985-1996)
SUZUKI JIMNY JA12, 22, JB32(1996-5/1999)
SUZUKI LIANA RH416, RH418 FWD(10/2001-8/2007)
SUZUKI LJ50(1974-6/1978)
SUZUKI LJ80(1978-12/1981)
SUZUKI SIERRA SJ410 F10A(6/1981-7/1988)
SUZUKI SIERRA SJ413 LEAF SPRING FRONT AND REAR(1985-1996)
SUZUKI SIERRA SN413 COIL SPRING FRONT AND REAR(1996-5/1999)
SUZUKI SWIFT SA INCL GTI(1985-12/1988)
SUZUKI SWIFT SF INCL GTI(7/1988-5/2000)
SUZUKI VITARA SE416, SV420, SV620(7/1988-8/2000)
SUZUKI XL-7 JA(1998-2006)
